1000kg Plate Lifting Clamp
Heavy-duty forged plate lifting clamp with 1,000 kg WLL, designed for vertical lifting, 180° turning, and horizontal fitment of steel plates, ship sections, and pile sheets.
- Working load limit
- 1,000 kg
- Material
- 20 CrMnTi alloy steel
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

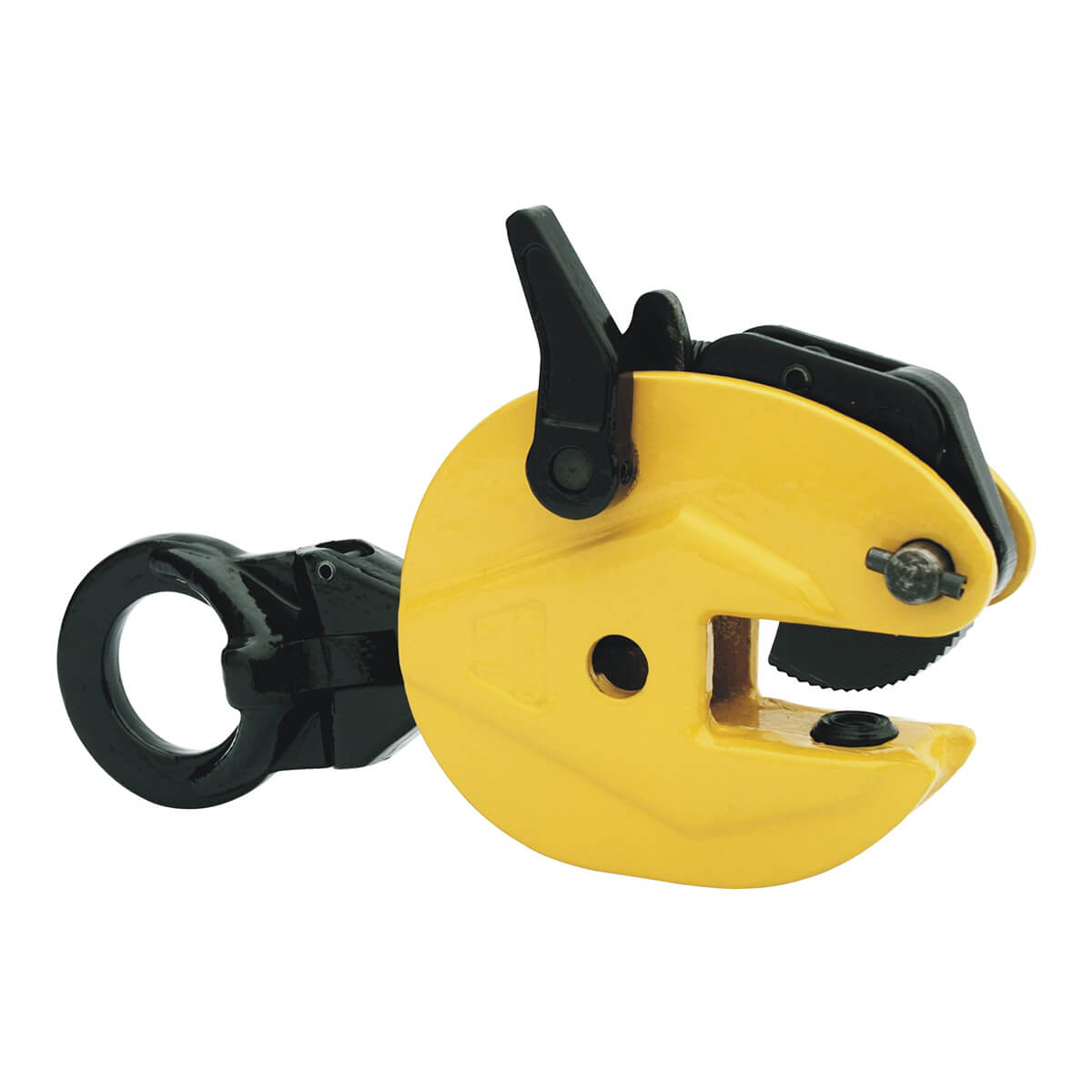

Able PLC10 Plate Lifting Clamp, 1,000 kg WLL
The Able PLC10 is a universal vertical plate lifting clamp engineered for the safe lifting, turning, and handling of steel plates, ship sections, and pile sheets. Built from a fully forged structure with high-traceability materials, it delivers a compact overall size combined with a high lifting capacity and a safety factor of 6 × WLL.
The clamp features a hinged hoisting eye that moves freely in all directions, allowing the operator to approach and lift the load from any angle. A dedicated hook-up facility makes horizontal fitment fast and straightforward on site. The jaw and floor are manufactured from 20 CrMnTi alloy steel and the clamp meets standard BS EN 13155.
A double-action safety latch locks the clamp securely in both the open and closed positions, guaranteeing a positive pre-load on the material being lifted. The wider jaw aperture on the PLC range means a single clamp can handle plates of varying thickness without the need to change equipment.
- Universal vertical PLC clamp, lifts and turns loads up to 180°
- Hinged hoisting eye rotates in all directions for multi-angle lifting
- Hook-up facility for easy horizontal fitment on site
- Double-action safety latch locks in open and closed positions
- Suitable for surface hardnesses up to 37 Rc (345 HB)
- Fully forged structure, 20 CrMnTi jaw and floor material
- Meets BS EN 13155 | Safety factor 6 × WLL
- Test load: 2.0 t | Net weight: 4.7 kg
Key features
- 011,000 kg working load limit
- 02Lift and turn up to 180°
- 03All-direction hinged hoisting eye
- 04Double-action safety latch
- 05Fully forged construction
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
