2000kg Plate Lifting Clamp
A fully forged vertical plate lifting clamp rated at 2,000 kg WLL, designed for lifting, turning, and positioning steel plates, ship sections, and pile sheets in any direction.
- Working load limit
- 2,000 kg
- Material
- 20 CrMnTi alloy steel
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

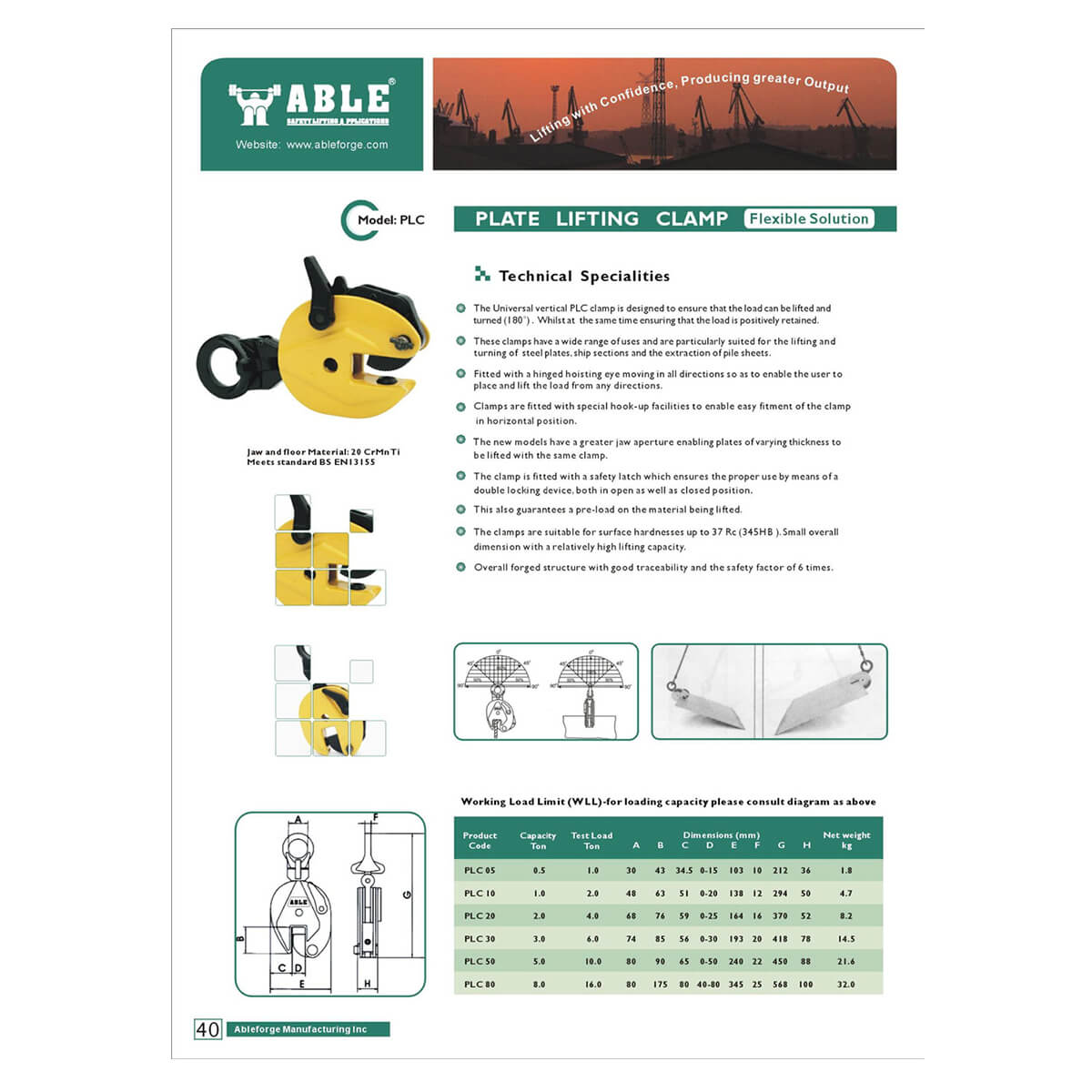

Able PLC20 Plate Lifting Clamp, 2,000 kg WLL
The Able PLC20 is a heavy-duty vertical plate lifting clamp designed for the safe lifting, turning (up to 180°), and positioning of steel plates, ship sections, and pile sheets. Fully forged from 20 CrMnTi alloy steel, this compact clamp delivers a high working load limit relative to its overall size, making it a practical choice for demanding industrial and construction environments.
A hinged hoisting eye rotates freely in all directions, allowing the operator to approach and lift the load from virtually any angle. Special hook-up facilities make horizontal fitment straightforward, and a double-locking safety latch ensures the load remains positively retained throughout the lift, both in the open and closed jaw positions.
The wider jaw aperture on the PLC range accommodates plates of varying thickness within the same clamp, reducing the need for multiple tools on site. The clamp meets standard BS EN 13155 and carries a safety factor of 6 × WLL.
- Working Load Limit (WLL): 2.0 tonnes (2,000 kg)
- Test Load: 4.0 tonnes
- Jaw opening range: 0-25 mm
- Suitable for surface hardness up to 37 Rc (345 HB)
- Net weight: 8.2 kg
- Jaw and floor material: 20 CrMnTi alloy steel
- Overall forged construction with full traceability
- Safety factor: 6 × WLL
Key features
- 012,000 kg (20 tonne) Working Load Limit
- 02Lifts and turns loads up to 180°
- 03Double-locking safety latch keeps the load positively retained in both open and closed jaw positions throughout every lift
- 04Wide jaw aperture of 0-25 mm accommodates plates of varying thickness
- 05Fully forged 20 CrMnTi alloy steel body
Specification
