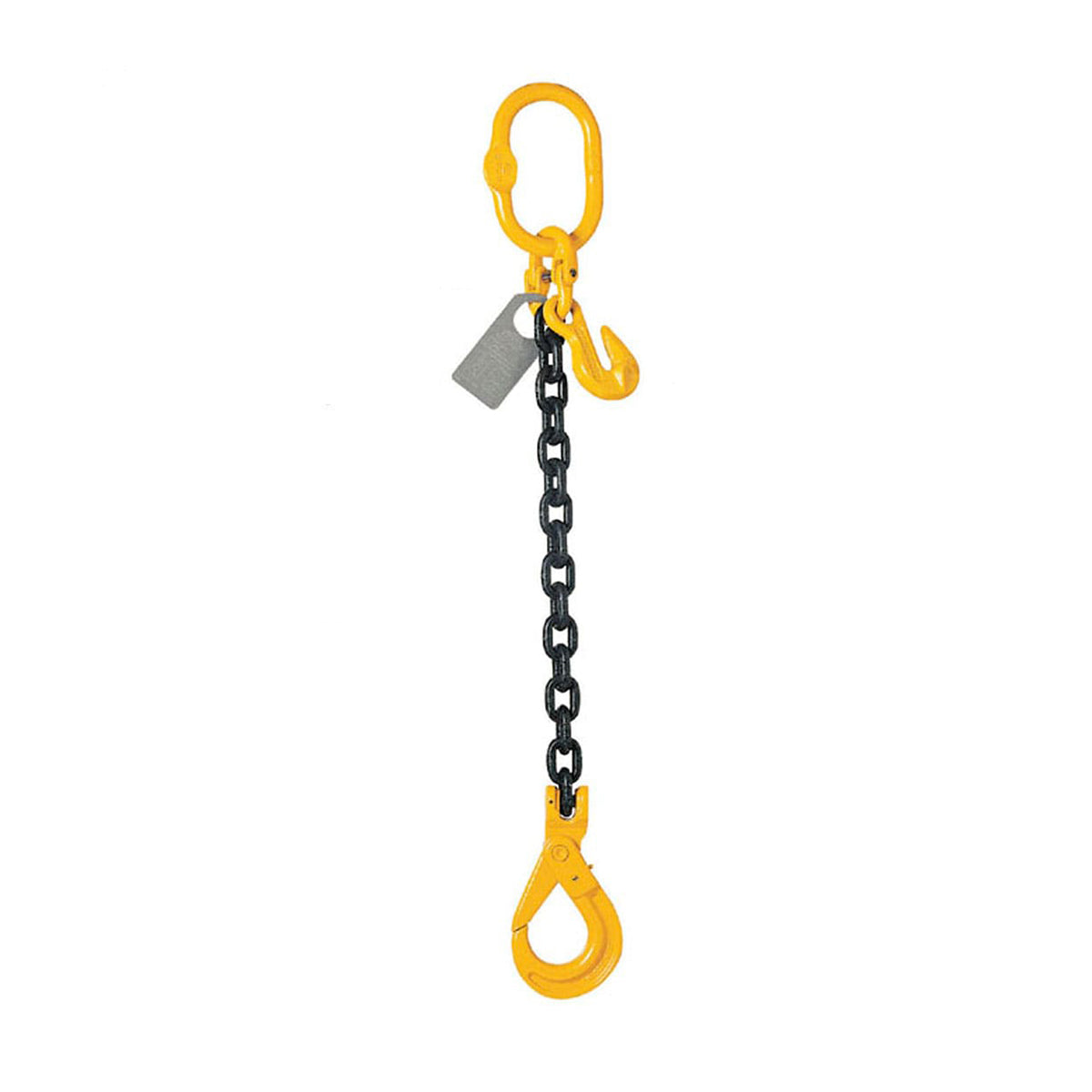

7mm Single Leg Lifting Chain
A Grade 80 alloy steel single leg lifting chain with a 1,500 kg WLL, available in lengths from 1-10 m with a choice of hook type and optional shortening clutch.
- Working load limit
- 1,500 kg
- Min. breaking load
- 6,000 kg
- Chain size
- 7 mm
- Legs
- 1
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 7 mm single leg lifting chain is built from Grade 80 high-alloy steel, the minimum standard required for lifting operations, making it a reliable and compliant choice for vertical hitch lifts in construction, manufacturing, and industrial environments.
Each chain is quenched, tempered, and proof load tested to 2.5 times the Working Load Limit (WLL), with an ultimate load capacity of 4 times the WLL. Links are produced using the German WAFIOS computerised method, automated knitting, spot welding, and calibration, so every link is identical, ensuring consistent strength throughout.
Choose your configuration to suit the job: select from five hook types (Clevis Sling Hook, Clevis Self Locking Hook, Clevis "C" Hook, Eye Self Locking Swivel Hook, or Clevis Forest Hook), chain lengths from 1 m to 10 m, and the option to add a shortening clutch for added versatility on site.
- Working Load Limit (WLL): 1,500 kg
- Chain diameter: 7 mm
- Grade 80 alloy steel, quenched, tempered, and proof tested
- Permanently embossed markings for identification and traceability
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- WAFIOS-produced links for uniform, calibrated strength
- Available lengths: 1 m, 10 m
- Optional shortening clutch available
- Hook options: Clevis Sling, Clevis Self Locking, Clevis "C", Eye Self Locking Swivel, Clevis Forest
Key features
- 011,500 kg Working Load Limit
- 02Proof load tested to 25× WLL
- 03Five hook options available
- 04Available in lengths from 1 m to 10 m
- 05Permanently embossed links produced
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
