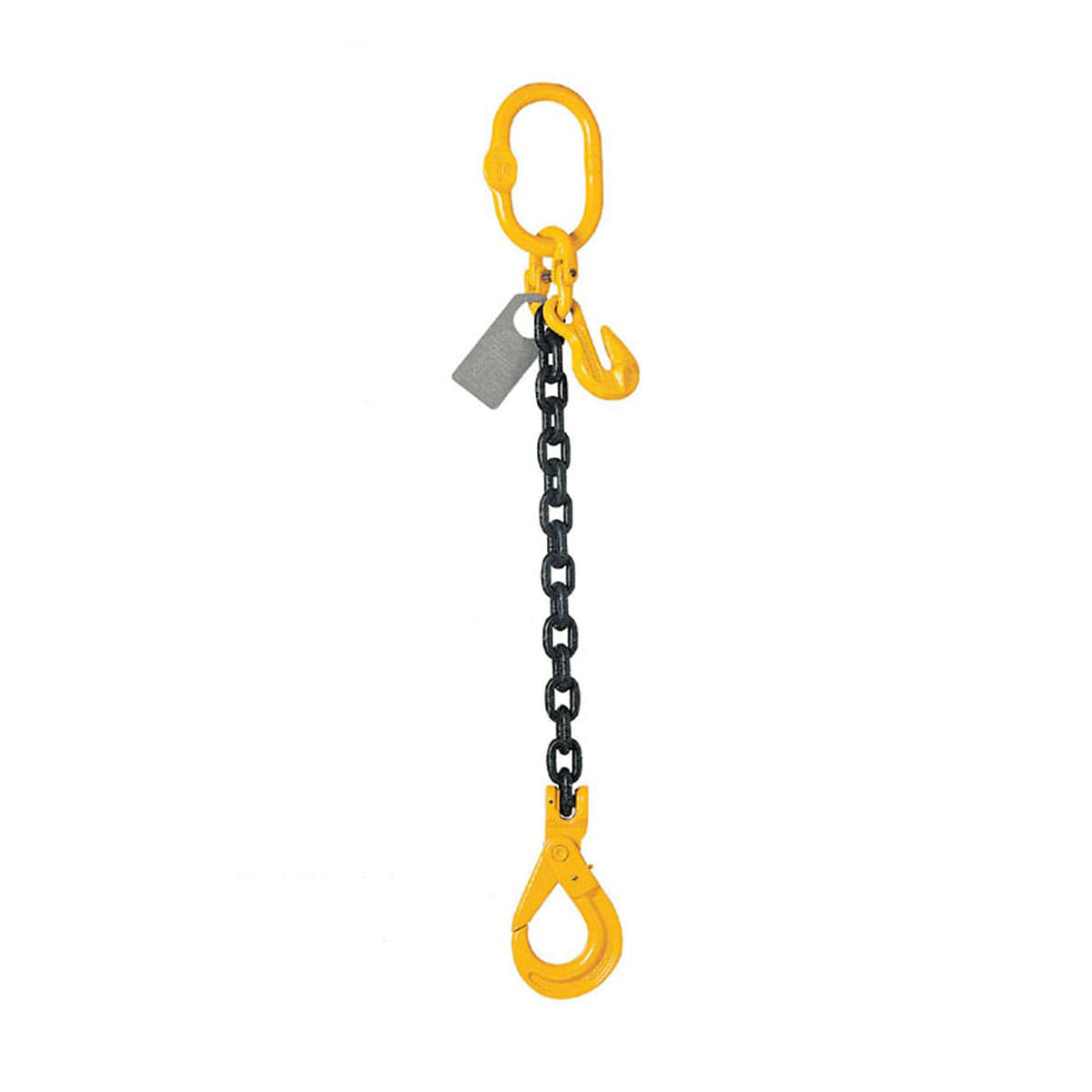

13mm Single Leg Lifting Chain
A Grade 80 single leg lifting chain in 13mm link size with a 5,300 kg WLL. Available in lengths from 1-10 m with a choice of hook type and optional shortening clutch.
- Working load limit
- 5,300 kg
- Min. breaking load
- 21,200 kg
- Chain size
- 13 mm
- Legs
- 1
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 13mm single leg lifting chain is manufactured from Grade 80 high-alloy steel chain, the minimum recognised standard for lifting operations, making it a reliable, regulation-compliant choice for vertical hitch lifts in construction, manufacturing, engineering and forestry environments.
Each chain is produced using the German WAFIOS automated method, combining computerised knitting, spot welding and calibration to ensure every link is dimensionally identical. All components are quenched, tempered and proof load tested to 2.5 times the Working Load Limit, with an ultimate breaking load of four times the rated capacity.
Choose your preferred hook type, chain length (1-10 m) and whether to add a shortening clutch to suit your exact lifting requirement.
- Grade 80 high-alloy steel chain, quenched, tempered and proof tested
- Working Load Limit: 5,300 kg (5.3 t) in a straight vertical hitch
- Choice of hook: Clevis Sling Hook, Clevis Self Locking Hook, Clevis "C" Hook, Eye Self Locking Swivel Hook, or Clevis Forest Hook
- Available lengths: 1 m to 10 m
- Optional shortening clutch for load adjustment on site
- Permanently embossed chain links for identification and full traceability
- Proof load tested to 2.5 × WLL; ultimate load rated at 4 × WLL
Key features
- 01Grade 80 chain
- 025,300 kg working load limit
- 03Choice of hook types
- 04Flexible length options
- 05Full traceability
Specification
Values that change with your selection, such as length, are in the options above.
