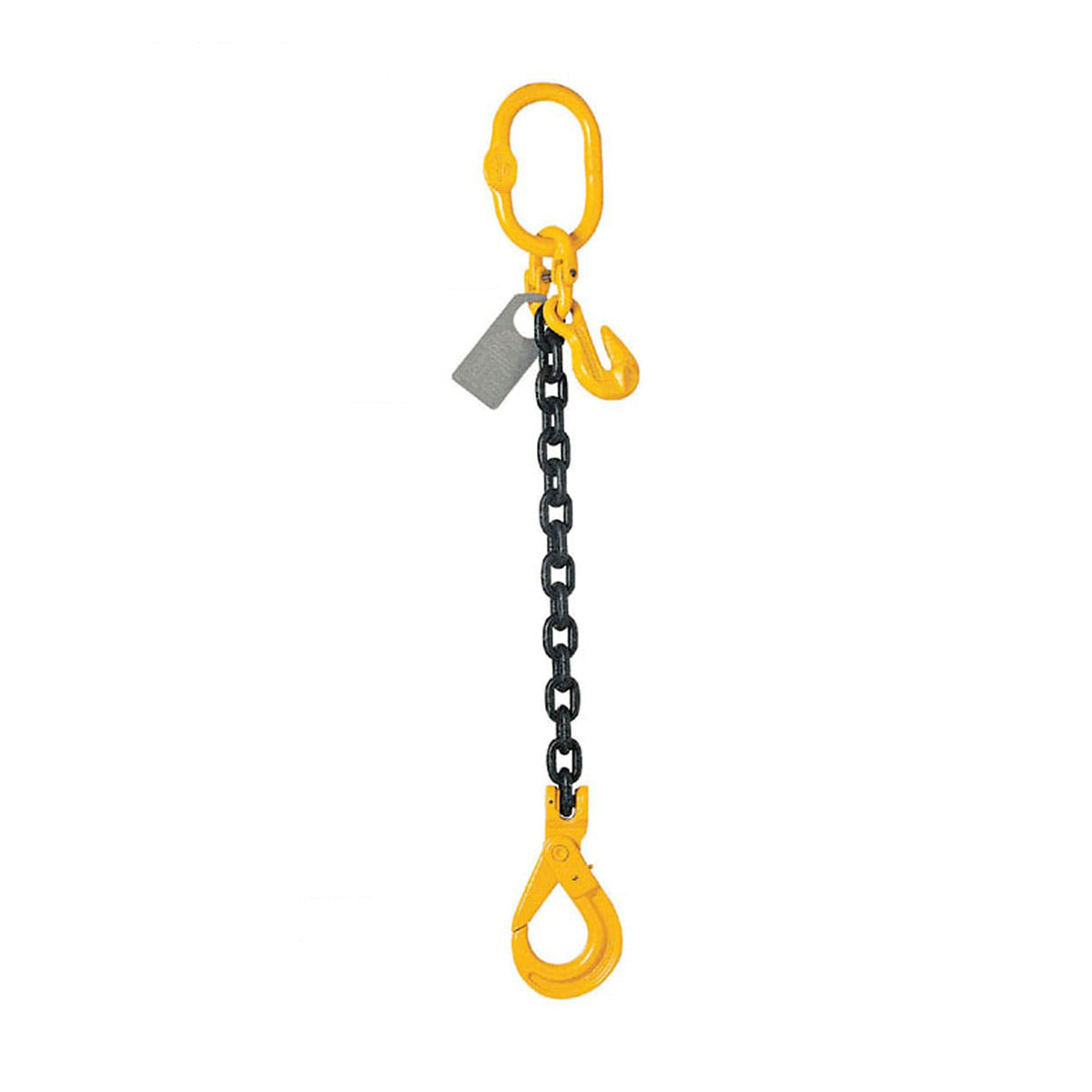

10mm Single Leg Lifting Chain
A Grade 80 single leg lifting chain with a 3,200 kg WLL, available in lengths from 1-10 m with a choice of hook types and optional shortening clutch, ideal for vertical hitch lifting in construction and manufacturing.
- Working load limit
- 3,200 kg
- Min. breaking load
- 12,800 kg
- Chain size
- 10 mm
- Legs
- 1
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 10 mm single leg lifting chain is built from Grade 80 high-alloy steel chain, the minimum standard required for lifting operations, making it a reliable, compliant choice for vertical hitch lifts across construction, manufacturing, and forestry applications.
Each chain is manufactured using the German WAFIOS production method, which combines computerised automated knitting, spot welding, and calibration to ensure every link is identical in size and strength. All components are quenched, tempered, and proof load tested to 2.5× the working load limit, with an ultimate breaking load of 4× the rated capacity.
Choose the configuration that suits your application: select from five hook types (Clevis Sling Hook, Clevis Self Locking Hook, Clevis
Key features
- 013,200 kg Working Load Limit
- 02Choice of five hook types
- 03Available in lengths from 1 m to 10 m
- 04Proof load tested to 25× WLL
- 05Wafios-produced chain ensures every link is identical
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
