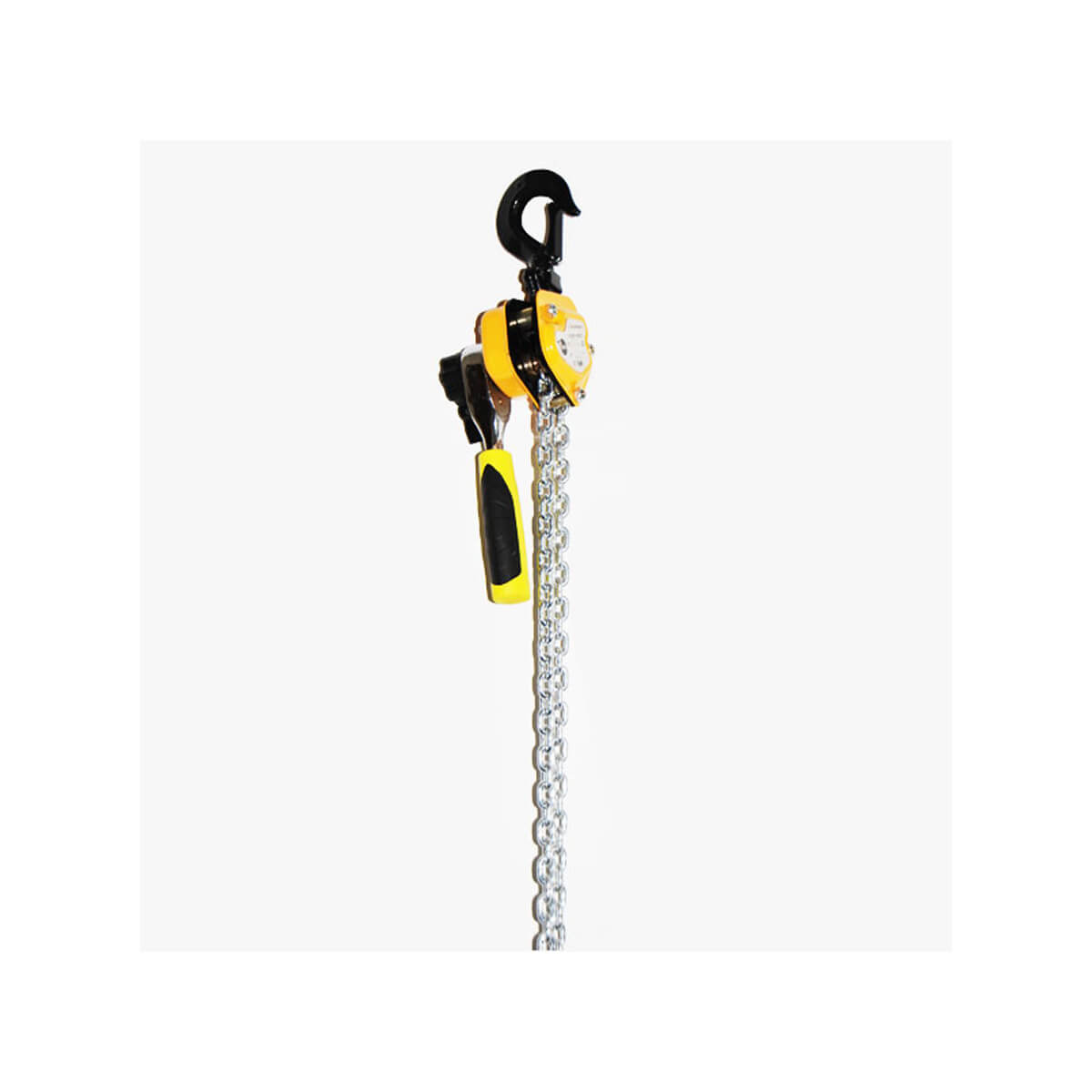

500kg Compact Lever Block 1.5m Drop
A compact 500kg capacity lever block hoist with 1.5m drop, featuring Grade 80 load chain, double pawl brake, and 360° handle rotation for safe, precise lifting in confined spaces.
- Working load limit
- 500 kg
- Chain size
- 4 mm
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
500kg Compact Lever Block, 1.5m Drop
This compact lever block delivers reliable, controlled lifting and load tensioning up to 500kg, making it an indispensable tool for workshops, construction sites, and industrial environments. Its ratchet and pawl mechanism allows incremental raising, lowering, and tensioning with minimal effort, while its portable form factor makes it ideal for use in confined or awkward spaces.
Built from superior steel with a Grade 80 Wafios load chain and forged, heat-treated hooks, this lever block is engineered for durability and long service life. Every unit is proof-load tested to 1.5× its working load limit, giving you confidence on every lift.
Key Features
- Superior Grade 80 Wafios load chain for maximum strength and reliability
- Forged and heat-treated load hooks with batch traceability and stretch indicators
- 360° handle rotation for easy operation in any orientation
- Double pawl brake system for secure load holding
- Minimum breaking load (MBL) at 400% of WLL; load tested to 1.5× WLL
- Single chain fall with 4mm load chain diameter
- Compact design suitable for lifting, pulling, and tensioning in confined spaces
- Low maintenance and fast to operate
Key features
- 01Reliable 500KG capacity
- 02Grade 80 wafios chain
- 03Double pawl brake system
- 04360° handle rotation
- 05Forged heat-treated hooks
Specification
