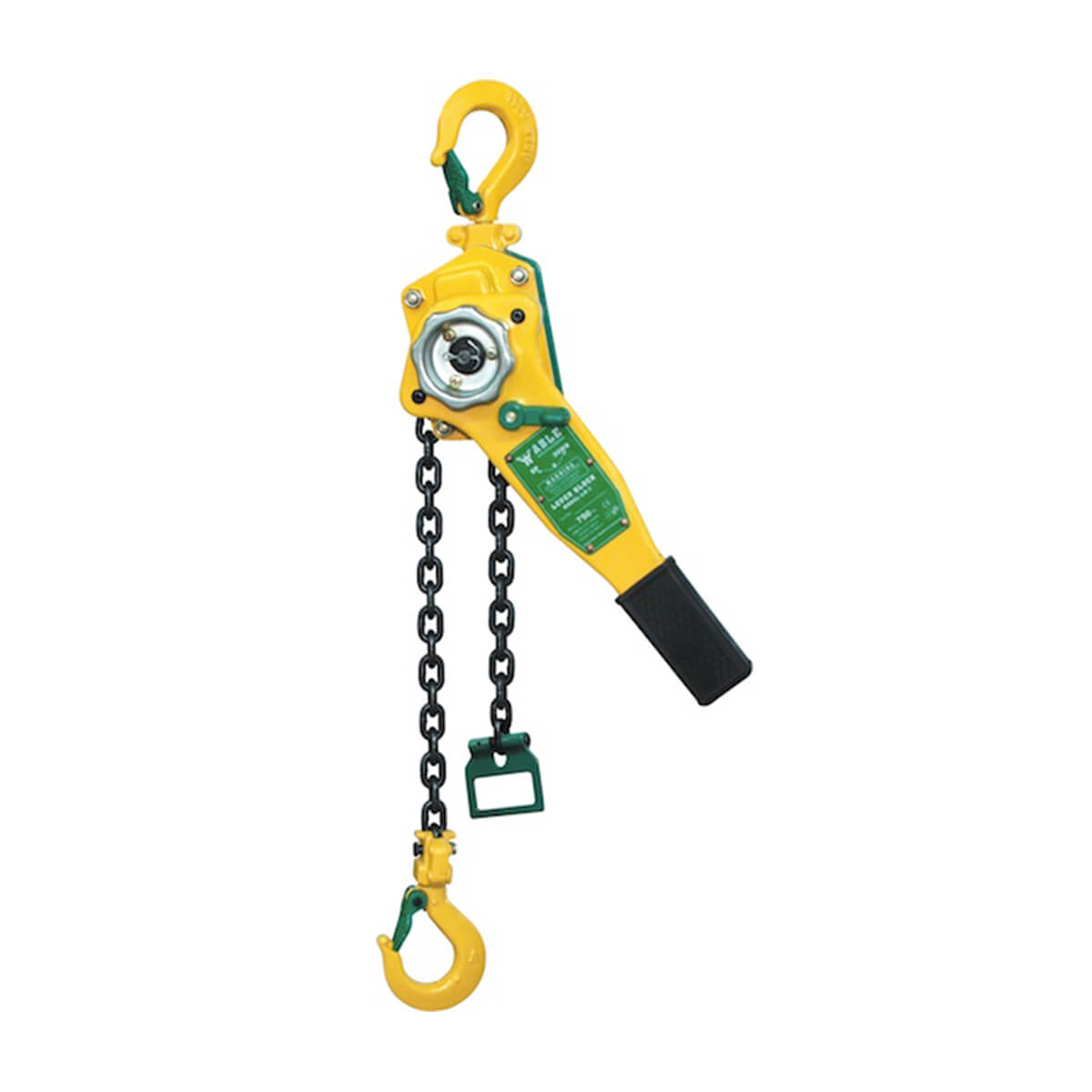

6000kg Lever Block 1.5m Drop
Heavy-duty 6,000 kg lever block hoist by ABLE with 1.5 m standard lift. Features Grade 80 load chain, double-pawl brake, and forged safety hooks for reliable lifting and tensioning in industrial environments.
- Working load limit
- 6,000 kg
- Chain size
- 10 mm
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

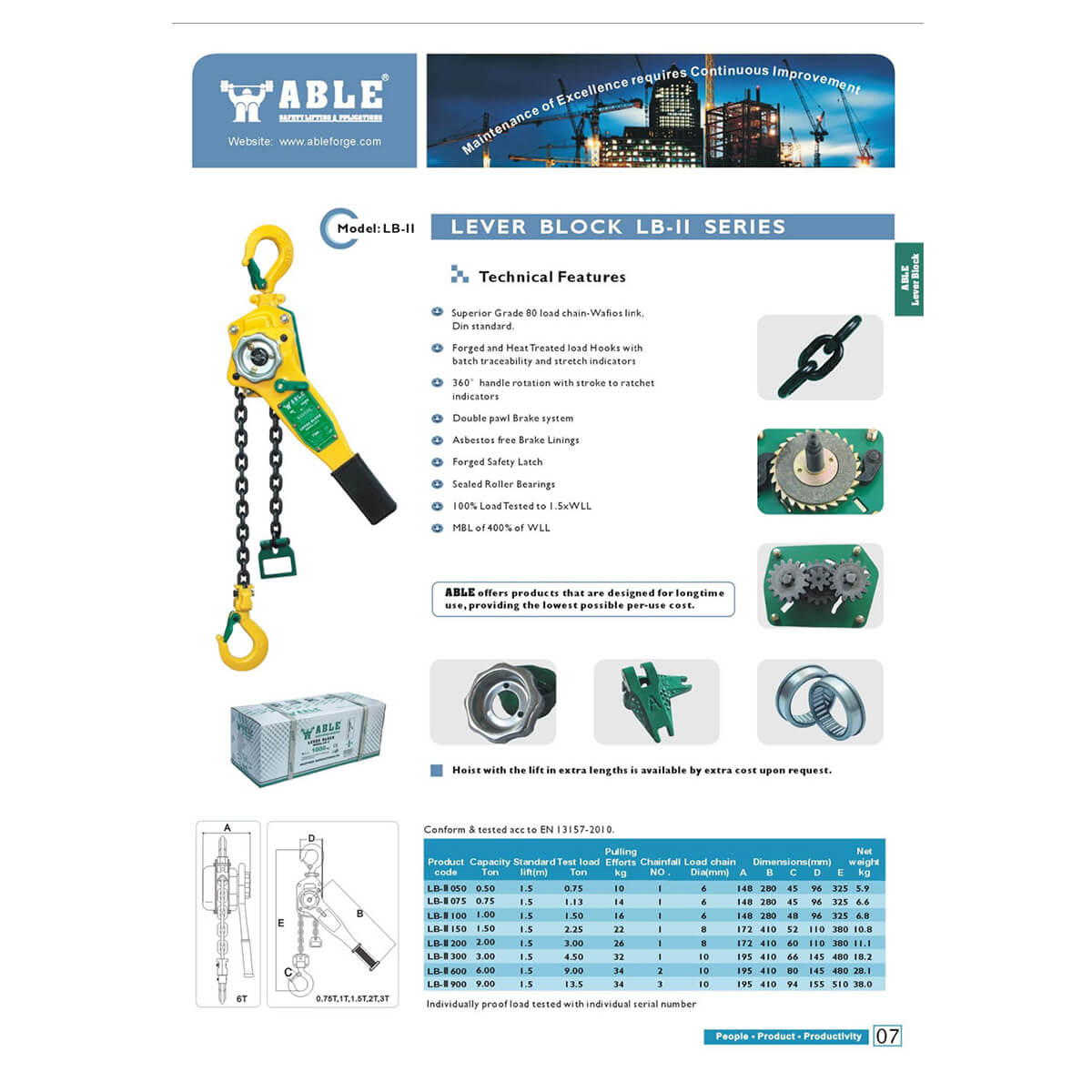

ABLE Lever Block LB-II Series, 6,000 kg Capacity
The ABLE LB-II 6,000 kg lever block is a professional-grade chain hoist designed for heavy lifting, pulling, and load-tensioning tasks across construction, engineering, and industrial applications. Its robust steel body and high-specification components deliver reliable, repeatable performance with minimal maintenance.
Key Technical Features
- Superior Grade 80 load chain with Wafios link to DIN standard
- Forged and heat-treated load hooks with batch traceability and stretch indicators
- 360° handle rotation with stroke-to-ratchet indicator for precise control
- Double-pawl brake system with asbestos-free brake linings
- Forged safety latch on top and bottom hooks
- Sealed roller bearings for long service life and reduced maintenance
- 100% load tested to 1.5× WLL; MBL of 400% of WLL
- Individually proof-load tested with individual serial number
- Conforms and tested to EN 13157-2010
Specification Summary
- Capacity: 6.00 t (6,000 kg)
- Standard lift: 1.5 m
- Test load: 9.00 t
- Pulling effort: 34 kg
- Chainfall: 2
- Load chain diameter: 10 mm
Extended lift lengths are available at additional cost, please contact us for details.
Key features
- 016,000 kg working load limit
- 02Grade 80 load chain
- 03Double-pawl brake system
- 04100% proof load tested
- 05Portable & versatile
