9000kg Lever Block 1.5m Drop
Heavy-duty 9-tonne lever block hoist with 1.5m standard lift, Grade 80 load chain, and double-pawl brake system, ideal for lifting, lowering and tensioning in confined or industrial spaces.
- Working load limit
- 9,000 kg
- Chain size
- 10 mm
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

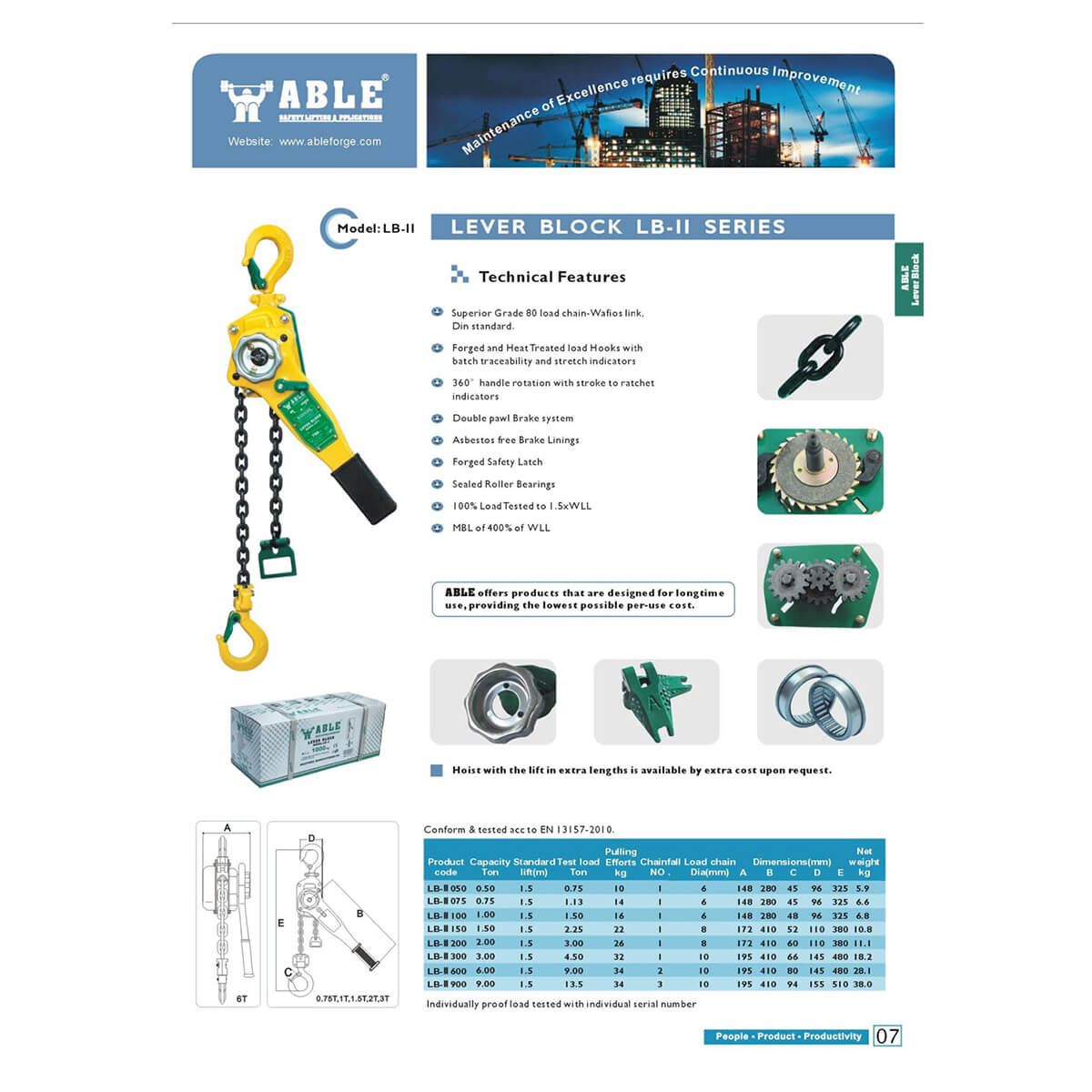

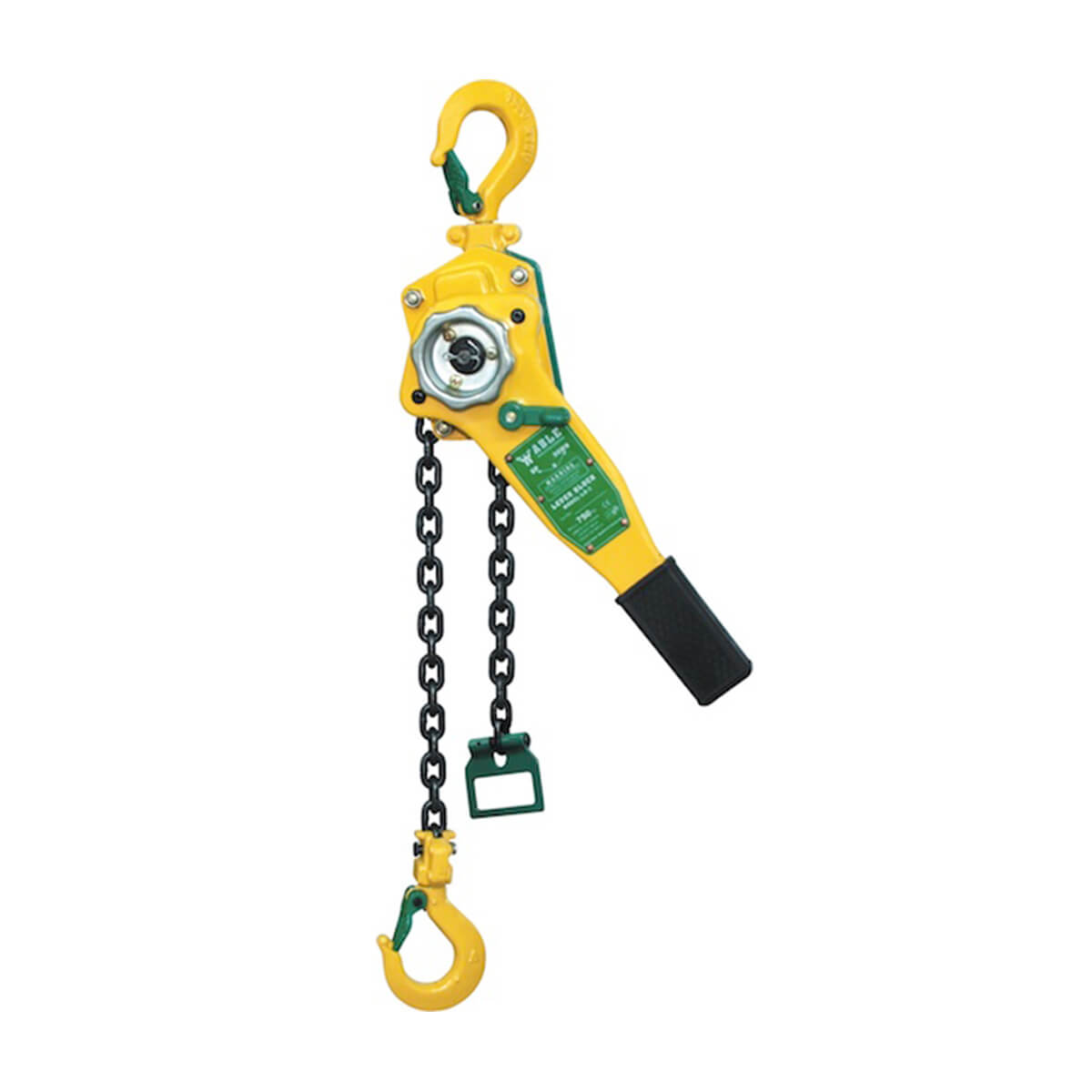

ABLE Lever Block LB-II Series, 9,000 kg Capacity
The ABLE LB-II 9000kg lever block is a professional-grade chain hoist designed for demanding lifting, lowering and load-tensioning applications. Built around a robust ratchet-and-pawl mechanism, it delivers precise incremental control whether you're working at height, in a confined space, or applying tension to secure a load.
Constructed from high-grade materials and 100% proof load tested to 1.5× WLL before leaving the factory, every unit carries an individual serial number for full traceability. The compact, portable design makes this lever block equally at home on a construction site, in a workshop, or aboard a vessel.
Key Technical Features
- Superior Grade 80 load chain, Wafios link, DIN standard
- Forged and heat-treated load hooks with batch traceability and stretch indicators
- 360° handle rotation with stroke-to-ratchet indicators for ergonomic operation
- Double-pawl brake system with asbestos-free brake linings
- Forged safety latch on all hooks
- Sealed roller bearings for low-maintenance, long service life
- 100% load tested to 1.5× WLL; MBL 400% of WLL
- Conforms and tested to EN 13157-2010
- Individually proof load tested with individual serial number
Extended lift lengths are available at additional cost, please contact us for a quotation.
Key features
- 019,000 kg (9-tonne) working load limit
- 02100% proof load tested to 15× WLL and MBL of 400% WLL
- 03Grade 80 Wafios-link DIN-standard load chain and forged
- 04Double-pawl brake system
- 05Compact
