Overview

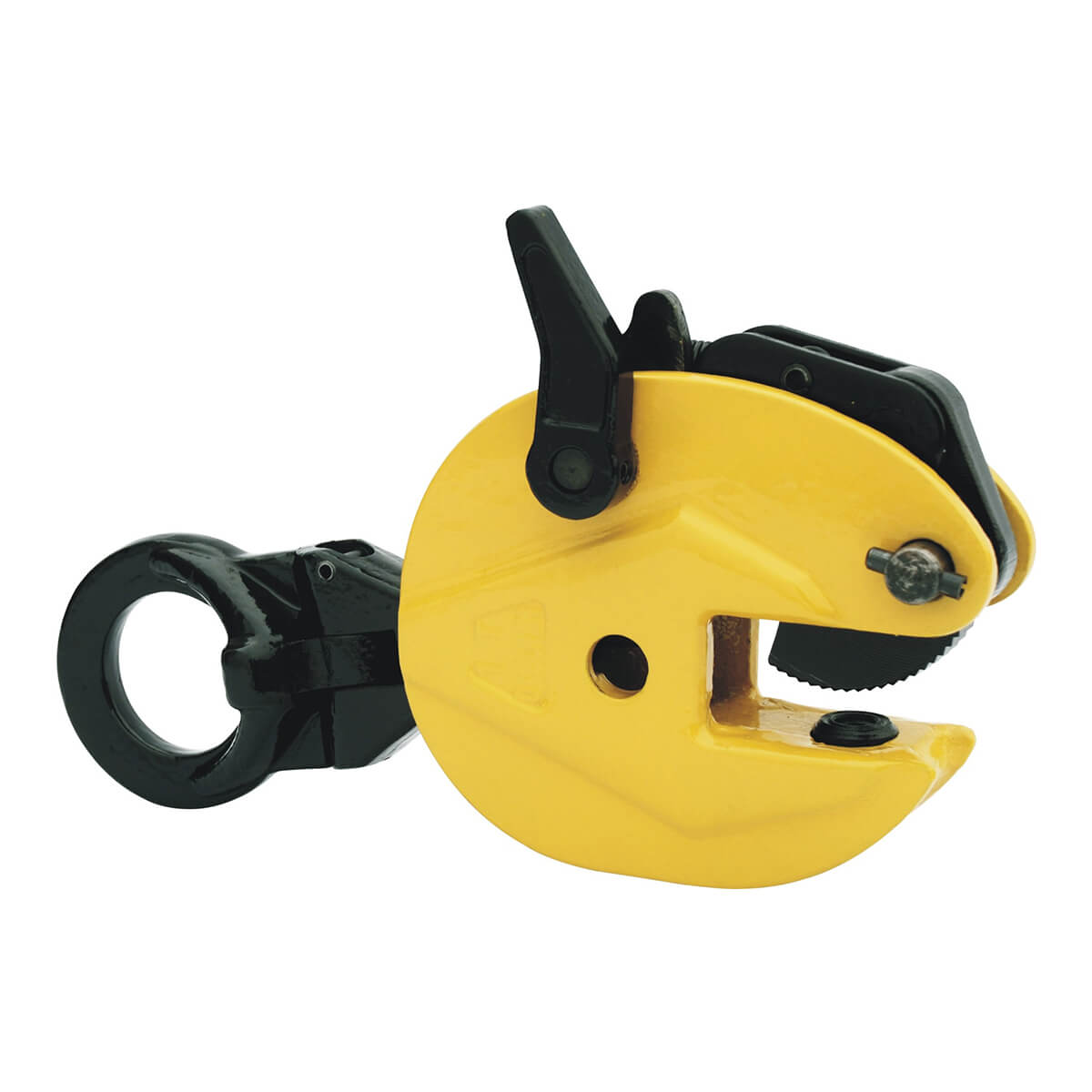

ABLE PLC50 Plate Lifting Clamp, 5,000 kg WLL

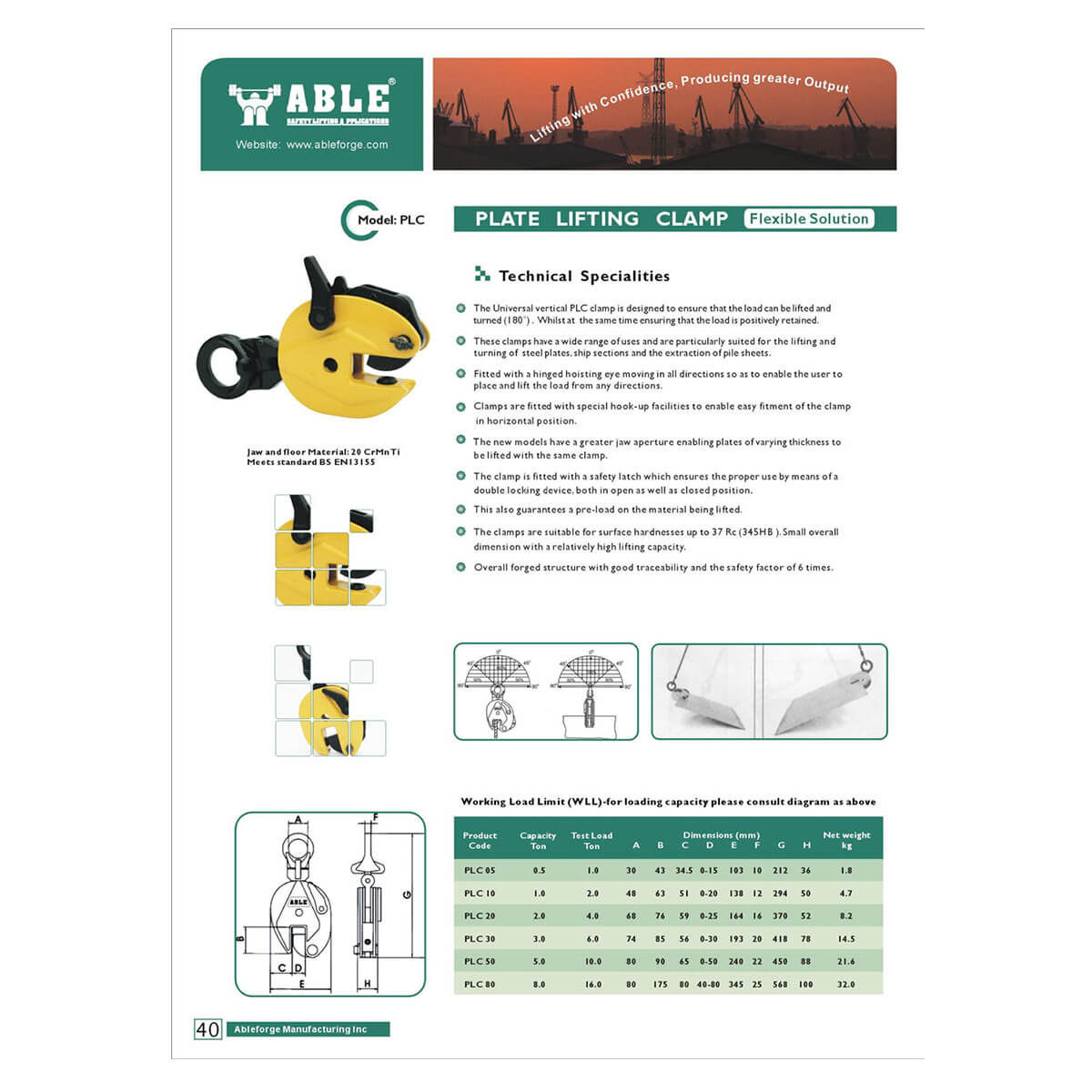

The ABLE PLC50 is a universal vertical plate lifting clamp engineered for the safe lifting and 180° turning of steel plates, ship sections, and pile sheets. Built from fully forged alloy steel components (jaw and floor material: 20 CrMnTi), it delivers a high lifting capacity in a compact overall envelope, meeting standard BS EN 13155.
A hinged hoisting eye rotates freely in all directions, allowing the operator to approach and lift the load from any angle. Dedicated hook-up facilities make horizontal fitment quick and straightforward. The wide jaw aperture accommodates plates of varying thickness, while a double-locking safety latch guarantees positive retention of the load in both the open and closed position, also applying a pre-load to the material being lifted.
The clamps are suitable for use on surfaces with hardnesses up to 37 Rc (345 HB). The overall forged structure provides excellent traceability and a safety factor of 6× WLL.
- Working Load Limit (WLL): 5,000 kg (5.0 t)
- Test Load: 10,000 kg (10.0 t)
- Jaw aperture (dimension D): 0-50 mm
- Net weight: 21.6 kg
- Jaw & floor material: 20 CrMnTi forged alloy steel
- Meets standard: BS EN 13155
- Safety factor: 6× WLL
- Maximum surface hardness: 37 Rc (345 HB)
Key features
- 015,000 kg (50 t) Working Load Limit
- 02Lifts and turns steel plates through 180°
- 03Double-locking safety latch retains the load securely in both open and closed positions and applies a pre-load to the workpiece
- 04Wide jaw aperture of 0-50 mm accommodates steel plates
- 05Fully forged 20 CrMnTi alloy steel body
Specification
