3000kg Universal Beam Clamp
A heavy-duty universal beam clamp rated at 3 tonnes (3000 kg), designed to attach securely to I-beam flanges for safe lifting, hoisting and positioning of steel beams in construction and industrial applications.
- Working load limit
- 3,000 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

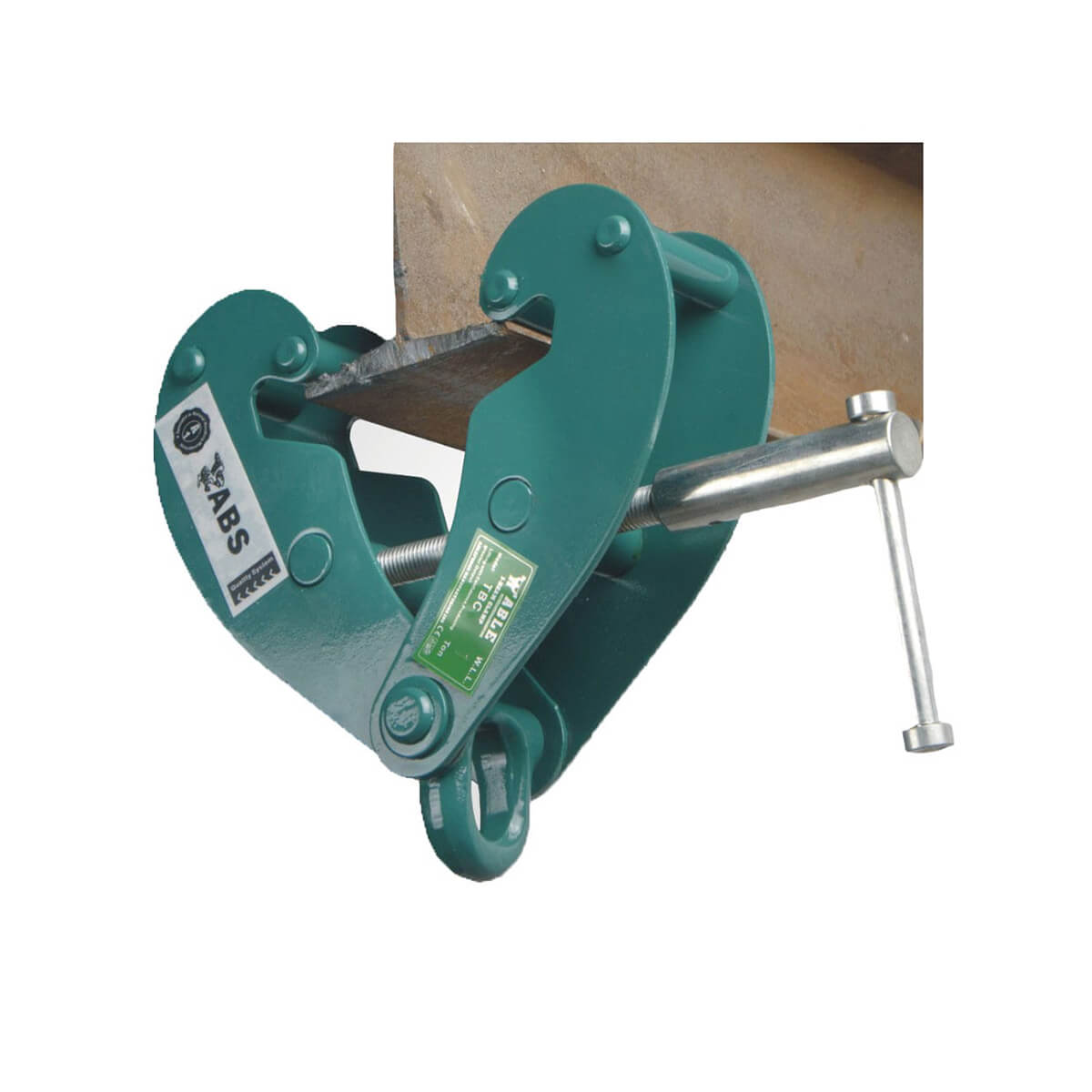

Able BC3 Universal Beam Clamp, 3 Tonne Capacity
The Able BC3 Universal Beam Clamp is a professional-grade lifting accessory engineered to attach quickly and securely to the flange of an I-beam or RSJ, providing a reliable temporary or semi-permanent hoist anchor point. The specially designed clamp jaw distributes the load away from the flange edge, significantly reducing flange stress and protecting the structural integrity of the beam.
Adjustment is fast and straightforward via the threaded handle, and the integrated suspension bar keeps headroom to a minimum, ideal where working space is restricted. The wide jaw opening accommodates flange widths from 80 mm to 320 mm, making this clamp suitable for a broad range of standard steel sections used in construction, fabrication, and general industry.
- Working Load Limit: 3 tonnes (3000 kg)
- Flange Width Range: 80-320 mm
- Net Weight: 10.4 kg
- Conforms to ANSI/ASME safety standard
- ABS approved
- Colour: Green

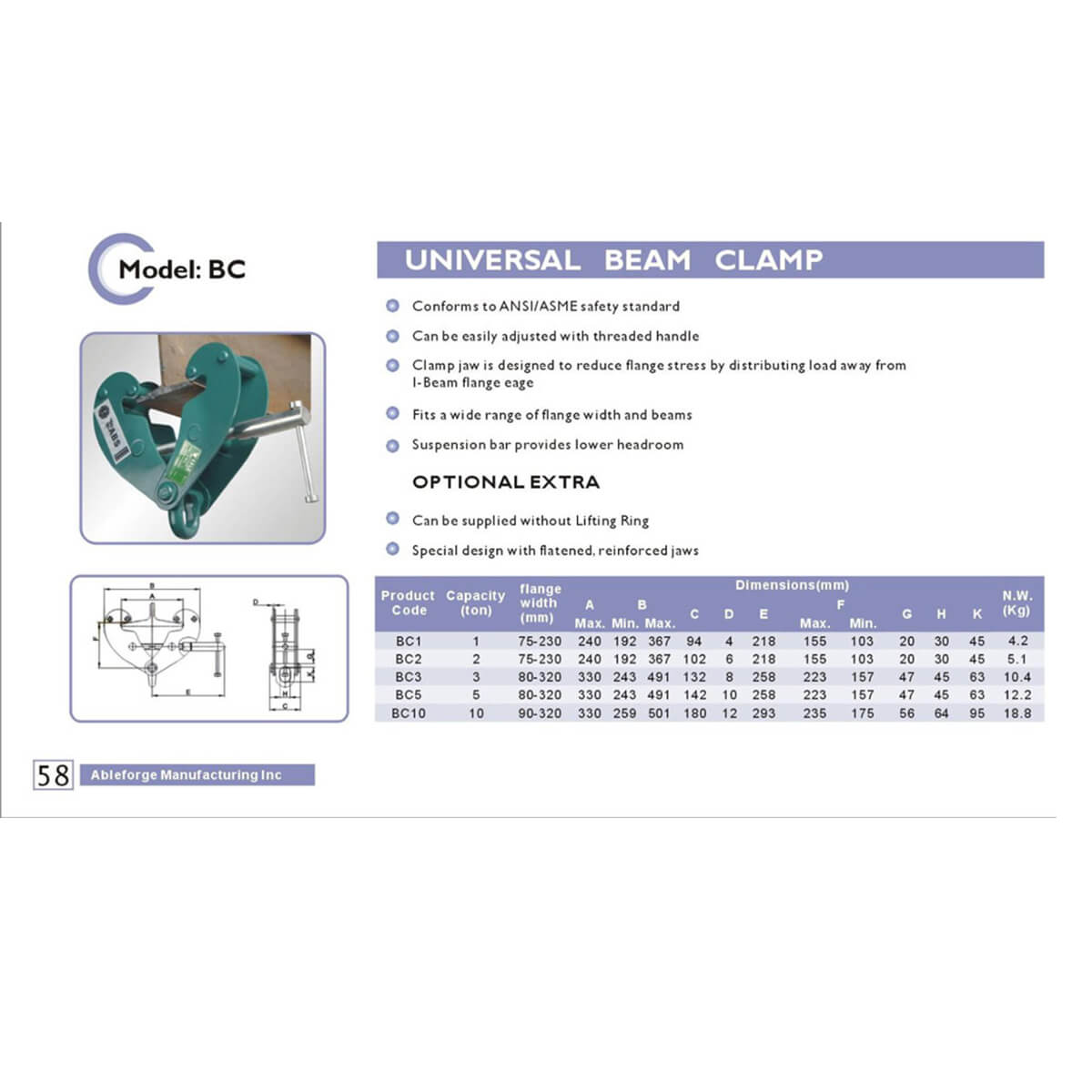

The BC3 can be supplied with or without a lifting ring, and is also available with flattened, reinforced jaws as an optional extra. Part of the Able (Ableforge Manufacturing Inc) BC range, which covers capacities from 1 tonne up to 10 tonnes.
Key features
- 013-tonne rated
- 02Wide flange compatibility
- 03Reduced flange stress
- 04Quick & easy adjustment
- 05Low-headroom suspension
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
