5000kg Universal Beam Clamp
A heavy-duty universal beam clamp rated at 5 tonnes (5000 kg), designed to grip I-beams and RSJs with a flange width of 80-320 mm, reducing flange stress for safe lifting and hoisting.
- Working load limit
- 5,000 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

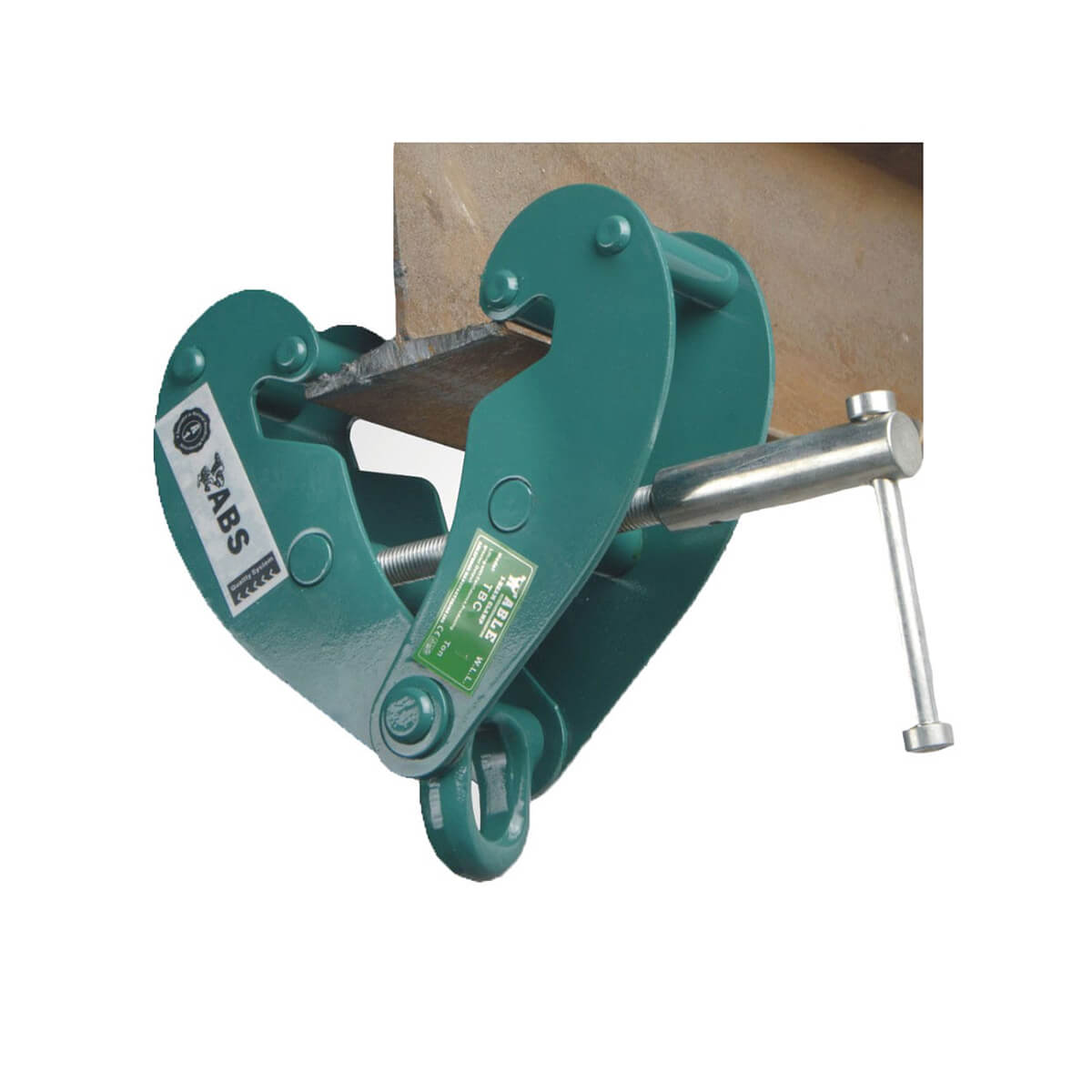

Able BC5 Universal Beam Clamp, 5 Tonne Capacity
The Able BC5 Universal Beam Clamp is a professional-grade lifting accessory designed to attach securely to the flange of I-beams, RSJs and similar steel sections. Its specially engineered clamp jaw distributes the load away from the flange edge, significantly reducing flange stress and providing a safer, more stable lifting point for construction and industrial applications.
The threaded handle allows fast, tool-free adjustment to suit a wide range of flange widths from 80 mm to 320 mm, while the integrated suspension bar lowers the headroom requirement, ideal where overhead clearance is limited. The clamp conforms to ANSI/ASME safety standards and is ABS certified, making it suitable for regulated lifting environments.
Whether you are positioning structural steelwork on site, creating a temporary hoist anchor point, or handling heavy beams in a workshop or fabrication environment, the BC5 delivers reliable, repeatable performance.
- Rated working load limit: 5 tonnes (5000 kg)
- Flange width range: 80-320 mm
- Adjustable via threaded handle, no additional tools required
- Suspension bar for reduced headroom operation
- Jaw designed to distribute load away from the I-beam flange edge
- Conforms to ANSI/ASME safety standard
- Available with or without lifting ring (optional)
- Optional reinforced, flattened jaw design available
Key features
- 015 tonne rated capacity
- 02Wide flange compatibility
- 03Reduces flange stress
- 04Quick threaded handle adjustment
- 05Low-headroom suspension bar
