2000kg Universal Beam Clamp
A heavy-duty universal beam clamp rated at 2 tonne (2000 kg), designed to attach securely to I-beams and RSJs for safe lifting, positioning, and hoist anchoring with reduced flange stress.
- Working load limit
- 2,000 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

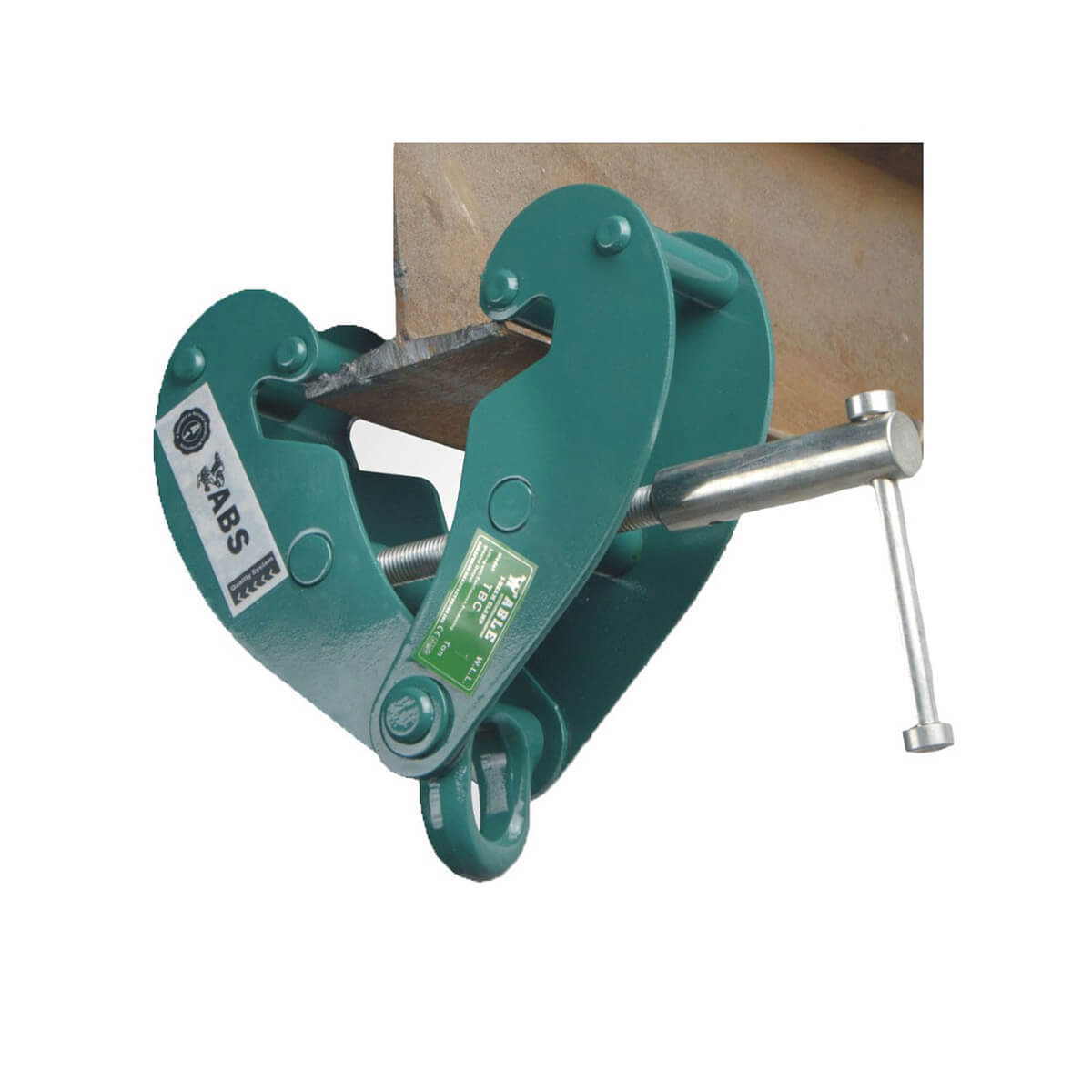

Able BC2 Universal Beam Clamp, 2 Tonne Capacity
The Able BC2 Universal Beam Clamp is a professional-grade lifting accessory engineered to grip I-beams and RSJ sections securely, distributing the load away from the flange edge to minimise flange stress. Suitable for construction, fabrication, and industrial rigging, it provides a reliable temporary or semi-permanent hoist anchor point wherever overhead lifting is required.
Adjustment is quick and intuitive via the threaded handle, and the integral suspension bar keeps headroom requirements to a minimum. The clamp accommodates a wide range of flange widths (75-230 mm) and conforms to ANSI/ASME safety standards, with ABS certification visible on the unit.
- Working Load Limit: 2 tonne (2000 kg)
- Flange Width Range: 75-230 mm
- Threaded handle for fast, tool-free adjustment
- Stress-distributing jaw design, load applied away from flange edge
- Suspension bar reduces headroom requirement
- Conforms to ANSI/ASME safety standard
- Net Weight: 5.1 kg
- Optional: supplied without lifting ring; flatened reinforced jaws available
Ideal for lifting, holding and positioning steel beams during structural steelwork, plant installation, and wherever a secure overhead anchor point is needed on an I-beam or RSJ flange.
Key features
- 012 tonne working load limit
- 02Reduces flange stress
- 03Wide flange compatibility
- 04Quick & easy adjustment
- 05Low headroom design
