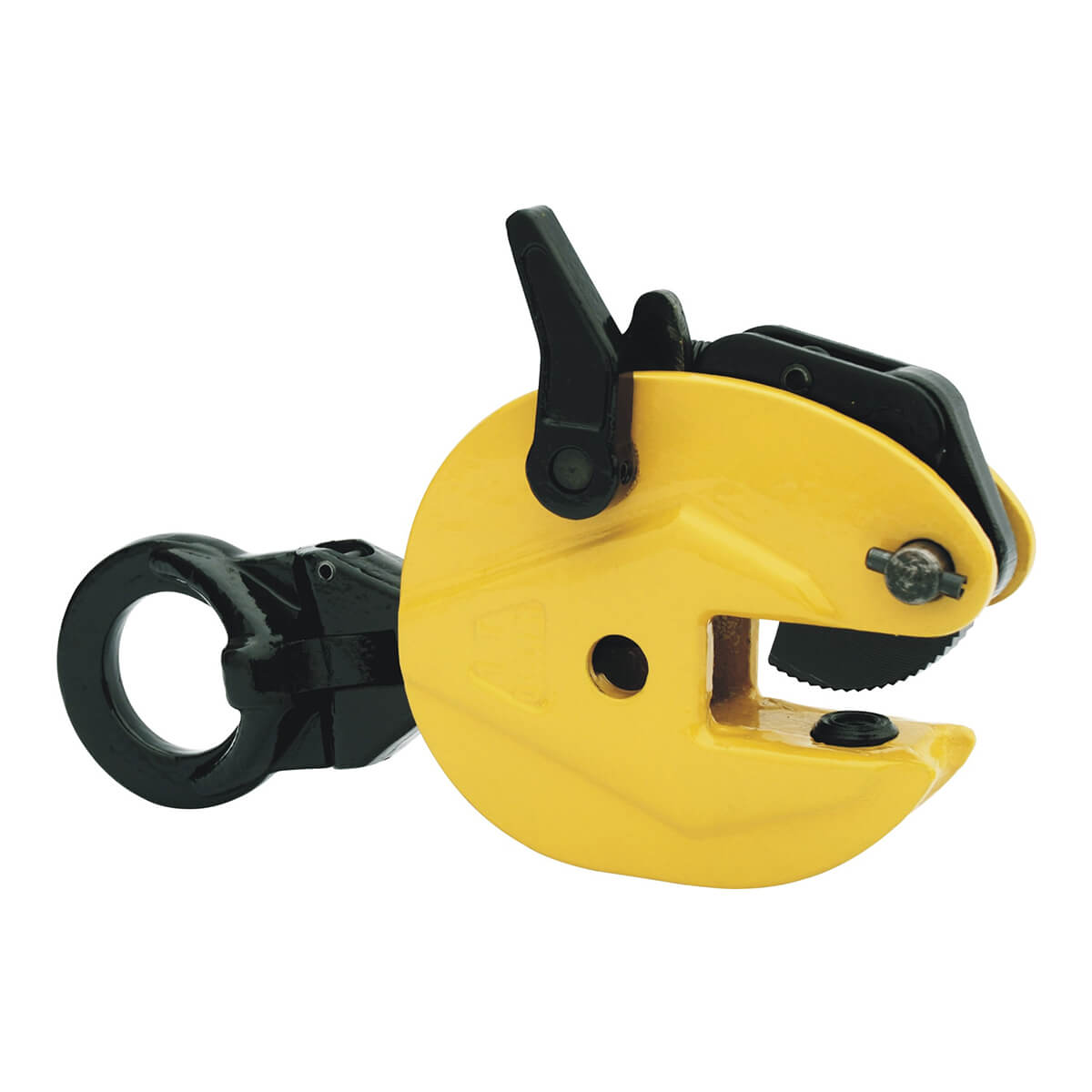

3000kg Plate Lifting Clamp
Heavy-duty forged plate lifting clamp with a 3,000 kg WLL, designed for vertical lifting and 180° turning of steel plates, ship sections and pile sheets. Features a hinged hoisting eye and double-locking safety latch.
- Working load limit
- 3,000 kg
- Material
- 20 CrMnTi alloy steel
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Able PLC30 Plate Lifting Clamp, 3,000 kg WLL
The Able PLC30 is a universal vertical plate lifting clamp engineered for the safe lifting and 180° turning of steel plates, ship sections and pile sheets. Built from fully forged alloy steel throughout, it delivers a high lifting capacity within a compact overall envelope, making it a practical choice for steelwork fabrication, shipbuilding and civil engineering applications.
A hinged hoisting eye rotates freely in all directions, allowing the operator to approach and lift the load from any angle. Special hook-up facilities simplify attachment in the horizontal position, while a double-locking safety latch, active in both the open and closed jaw positions, guarantees the load is positively retained at all times and provides a pre-load on the material being lifted.
The enlarged jaw aperture accommodates plates of varying thickness (0-30 mm), so a single clamp handles a wide range of stock. The jaw and floor are manufactured from 20 CrMnTi alloy steel, suitable for surface hardnesses up to 37 Rc (345 HB).
- Working Load Limit (WLL): 3,000 kg (3.0 t)
- Test load: 6,000 kg (6.0 t)
- Jaw opening range: 0-30 mm
- Safety factor: 6 × WLL
- Meets standard BS EN 13155
- Net weight: 14.5 kg
- Jaw and floor material: 20 CrMnTi alloy steel
- Suitable for surface hardnesses up to 37 Rc (345 HB)
- Overall forged construction with full traceability
Key features
- 013,000 kg Working Load Limit
- 02Lifts and turns loads through 180°
- 03Double-locking safety latch secures the jaw in both open and closed positions
- 04Hinged hoisting eye swivels in all directions and hook-up facilities allow easy attachment in the horizontal position
- 05Fully forged 20 CrMnTi alloy steel construction
