3000kg Lever Block 1.5m Drop

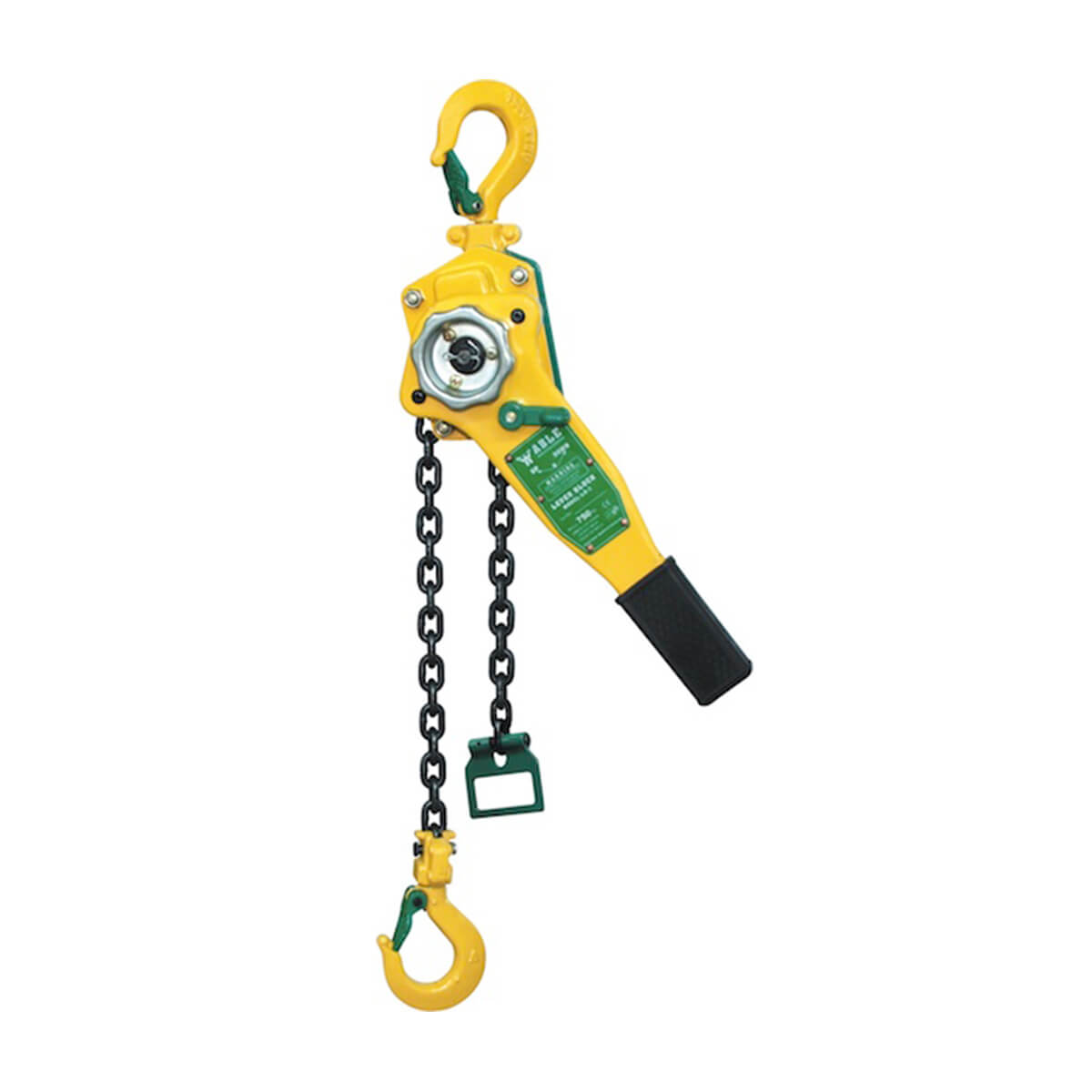

ABLE Lever Block LB-II Series, 3000kg Capacity

The ABLE LB-II 3-tonne lever block is a robust, portable chain hoist designed for lifting, lowering, and tensioning heavy loads in industrial, construction, and maintenance environments. Operating via a ratchet and pawl mechanism, it allows precise incremental control even in confined or awkward spaces where overhead cranes cannot reach.

Built to conform and tested to EN 13157-2010, every unit is individually proof load tested to 1.5× WLL and carries a minimum breaking load of 400% of WLL, giving you reliable safety margins on every lift. The 360° rotating handle with stroke-to-ratchet indicator ensures smooth, fatigue-reducing operation, while sealed roller bearings keep internal components protected from dust and moisture.

Key Technical Specifications

• Capacity: 3.00 tonne (3000 kg)
• Standard lift: 1.5 m
• Test load: 4.50 tonne
• Pulling effort required: 32 kg
• Chainfall: 1
• Load chain diameter: 10 mm
• Body dimensions (A×B×C×D×E): 195 × 410 × 66 × 145 × 480 mm
• Net weight: 18.2 kg

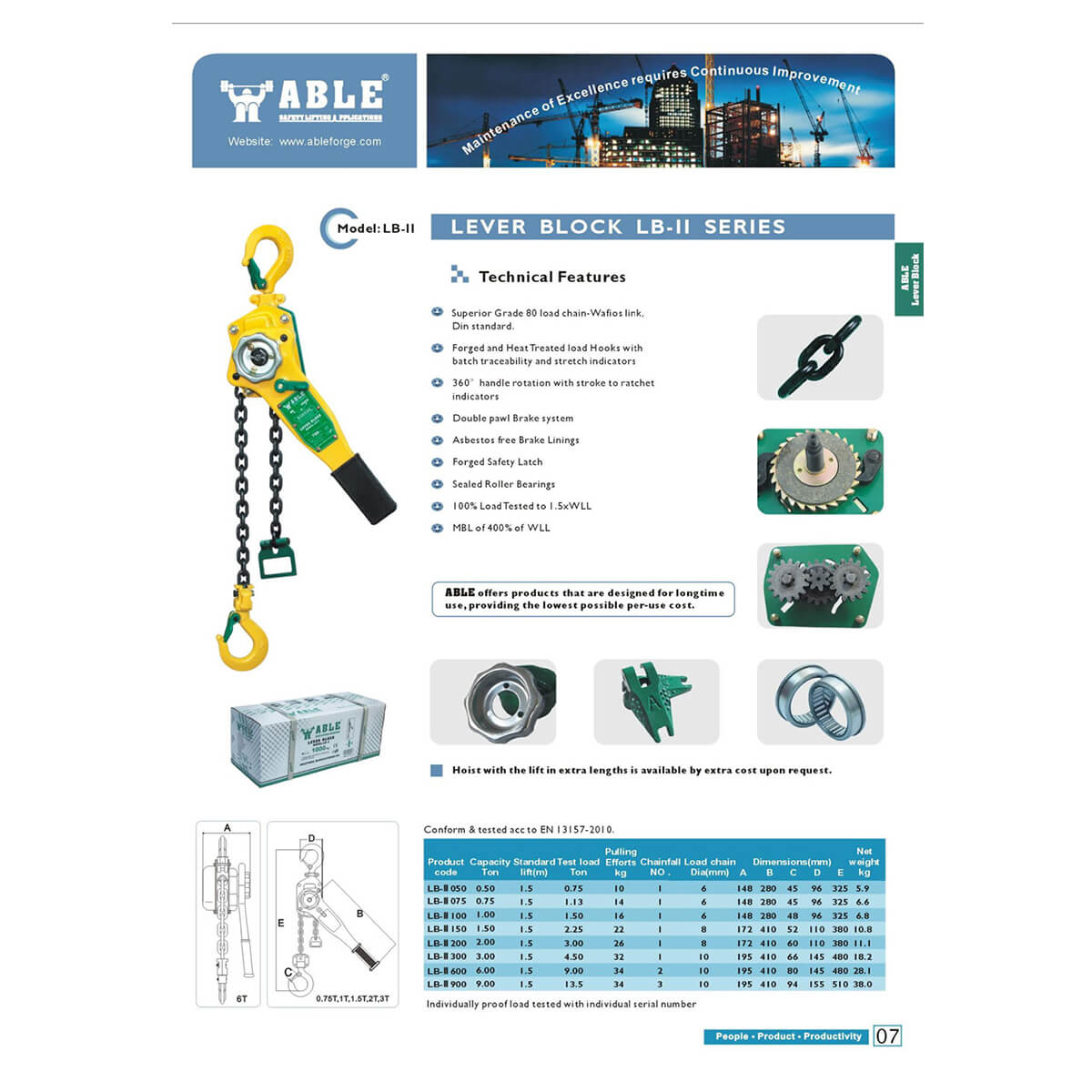

Technical Features

• Superior Grade 80 load chain, Wafios link, DIN standard
• Forged and heat-treated load hooks with batch traceability and stretch indicators
• Forged safety latch on top and bottom hooks
• Double pawl brake system for secure load holding
• Asbestos-free brake linings
• 360° handle rotation with stroke-to-ratchet indicator
• Sealed roller bearings for low maintenance and long service life
• 100% load tested to 1.5× WLL; MBL 400% of WLL
• Individually proof load tested with individual serial number

Extended lift lengths are available at additional cost upon request. The ABLE LB-II series is engineered for long-term use at the lowest possible per-use cost.
