3000kg Chain Block 3m Drop

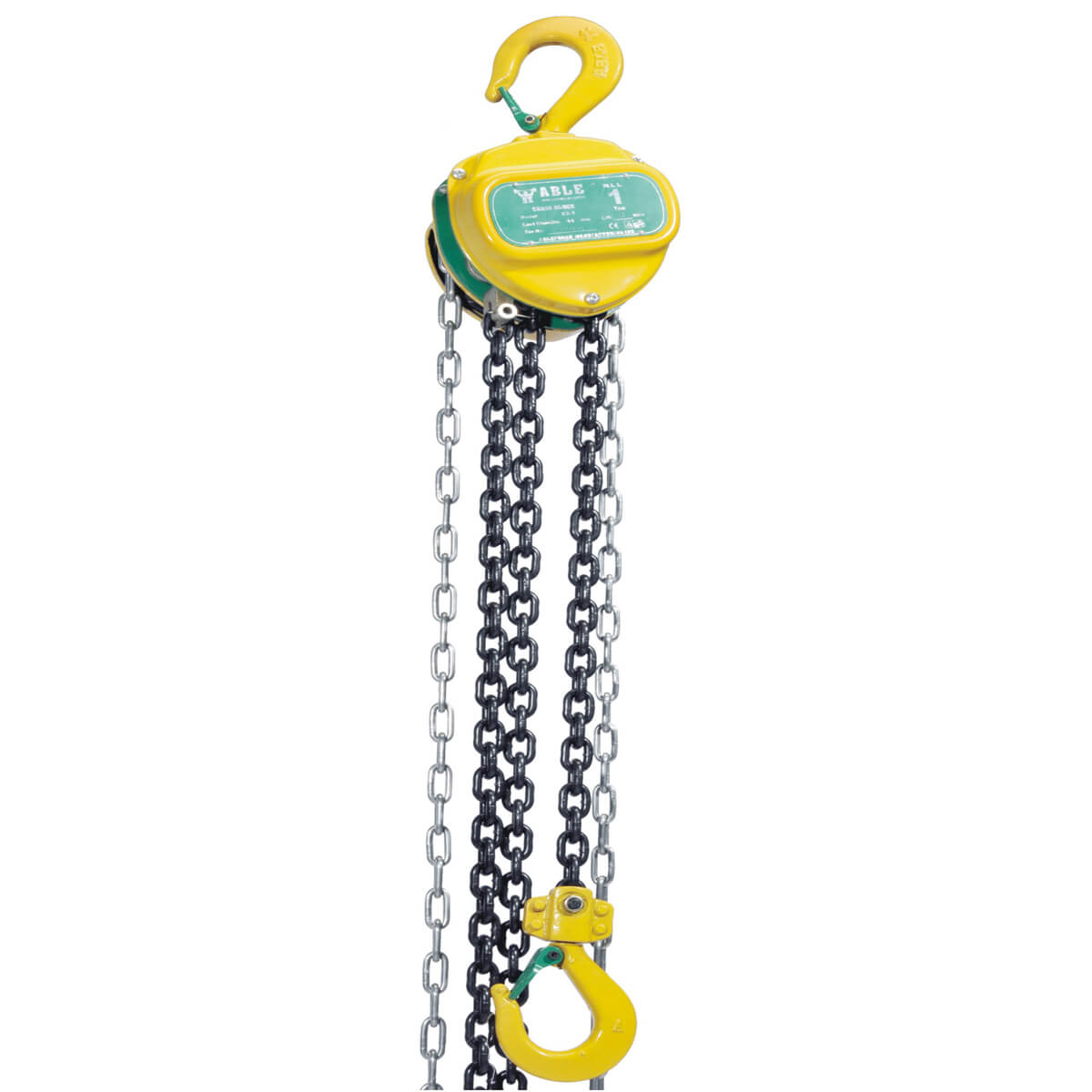

ABLE 3,000 kg Manual Chain Block Hoist, 3 m Drop

This ABLE chain block delivers reliable, manually operated lifting of loads up to 3,000 kg with a standard lift height of 3 m. Pulling the hand chain engages precision internal gearing, so only a modest hand effort is needed to raise or lower even the heaviest loads safely and under full control.

Built for demanding environments, factories, power plants, laboratories, construction sites, and workshops, the enclosed housing protects the mechanism from dust and moisture, permitting outdoor use without extra lubrication on the load brake.

Key Features

• Superior Grade 80 load chain, minimum breaking load is 400% of WLL with elongation greater than 10%, providing a substantial safety margin.
• Double-pawl fail-safe brake, even if one or two pawls become unserviceable, the remaining pawl(s) keep the brake fully operative and the load secure.
• Forged & heat-treated load hooks, fitted with safety latches and stretch indicators for batch-traceable, at-a-glance condition monitoring.
• Individually proof-load tested, every unit is tested to 1.5× WLL and carries its own unique serial number for full traceability.
• Enclosed, low-maintenance housing, sealed body suits indoor and outdoor use; the load brake requires no lubrication, reducing servicing time and cost.

With a 2-fall chainfall configuration, 8 mm load chain diameter, and a pulling effort of just 35 kg, this chain block offers an efficient, versatile solution for overhead lifting, machine installation, and load securing in confined spaces.
