250kg Chain Block with 3m Drop | Hand Chain Hoist
The Ableforge CB250 is a compact 250 kg hand chain hoist with a 3 m standard lift, Grade 100 load chain, double-pawl brake, and proof-tested to 1.5× WLL, ideal for workshops, factories, and outdoor use.
- Working load limit
- 250 kg
- Min. breaking load
- 400 kg
- Chain size
- 4 mm
- Grade
- Grade 100
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

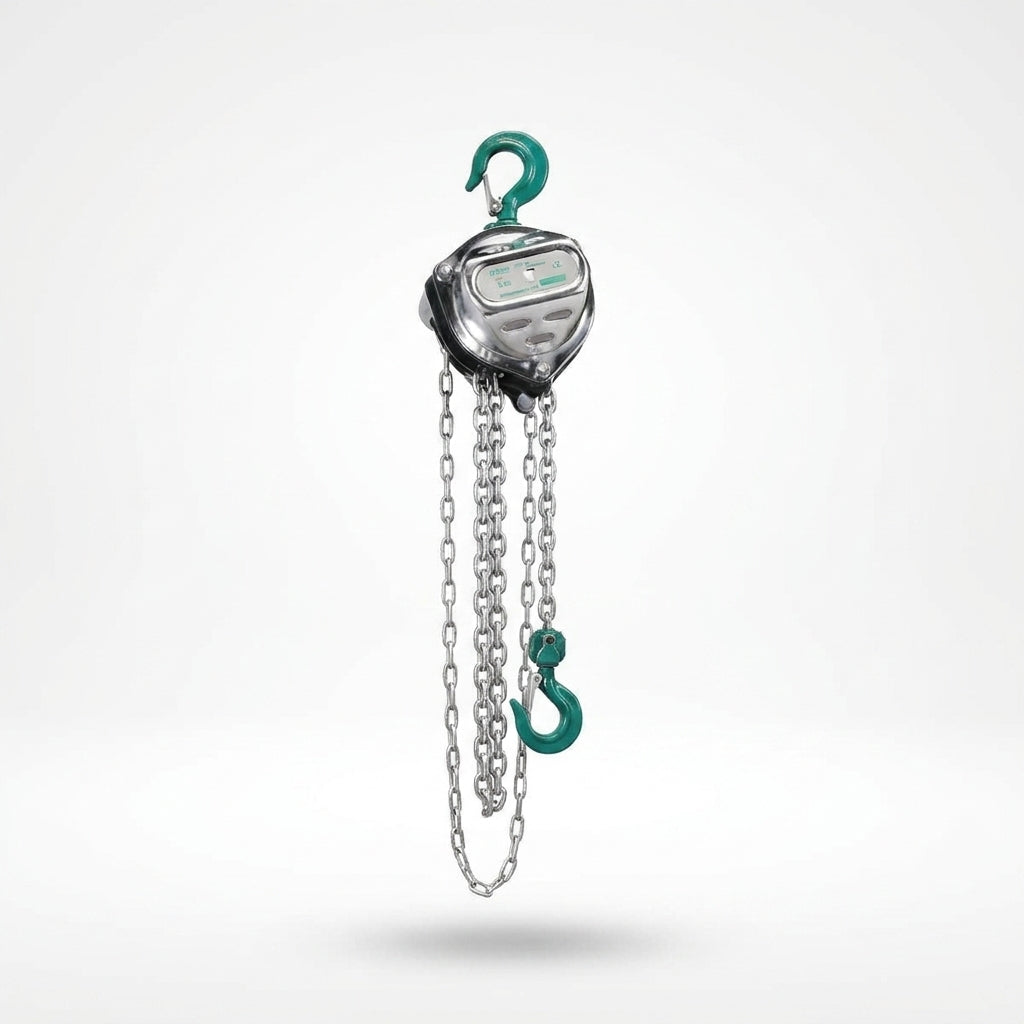

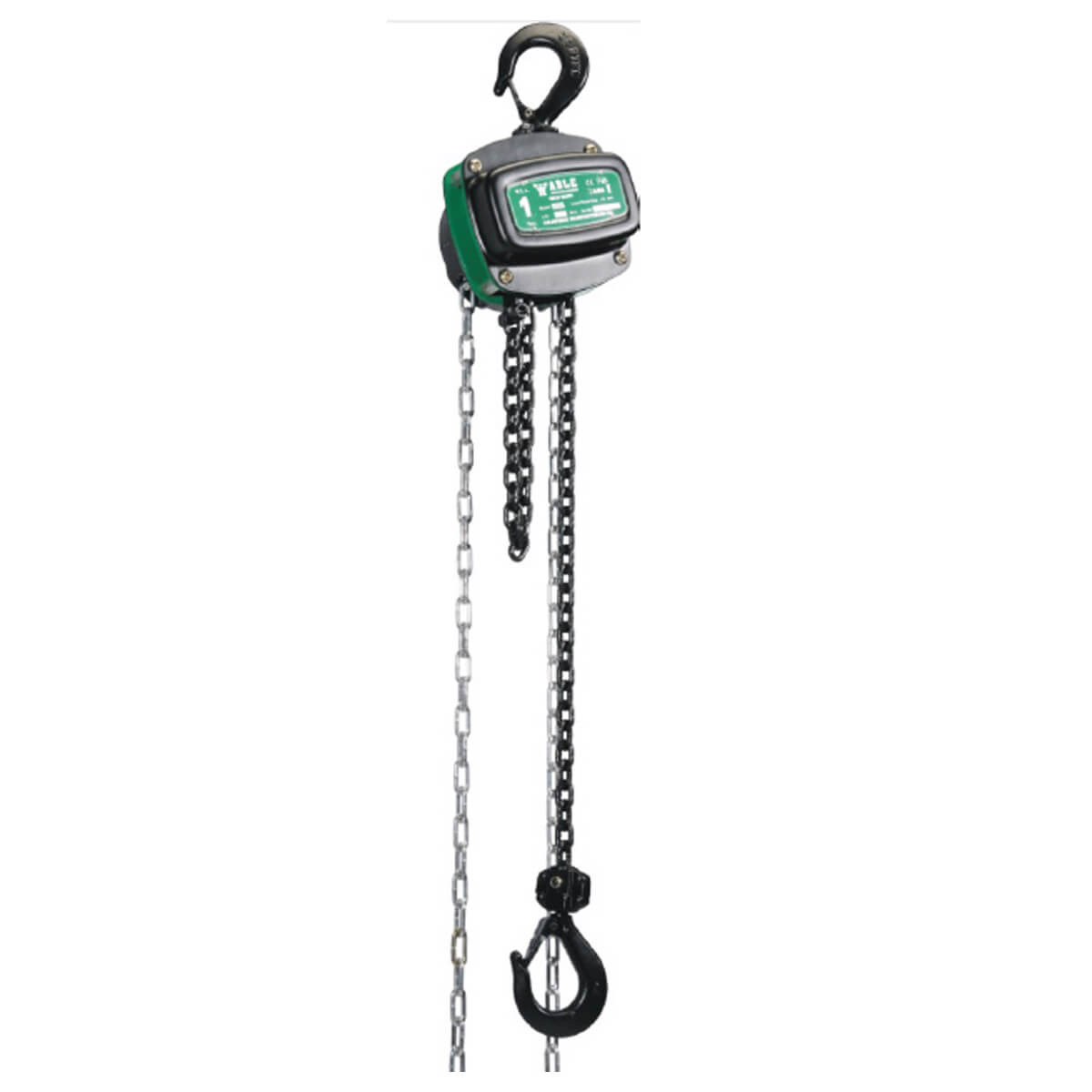

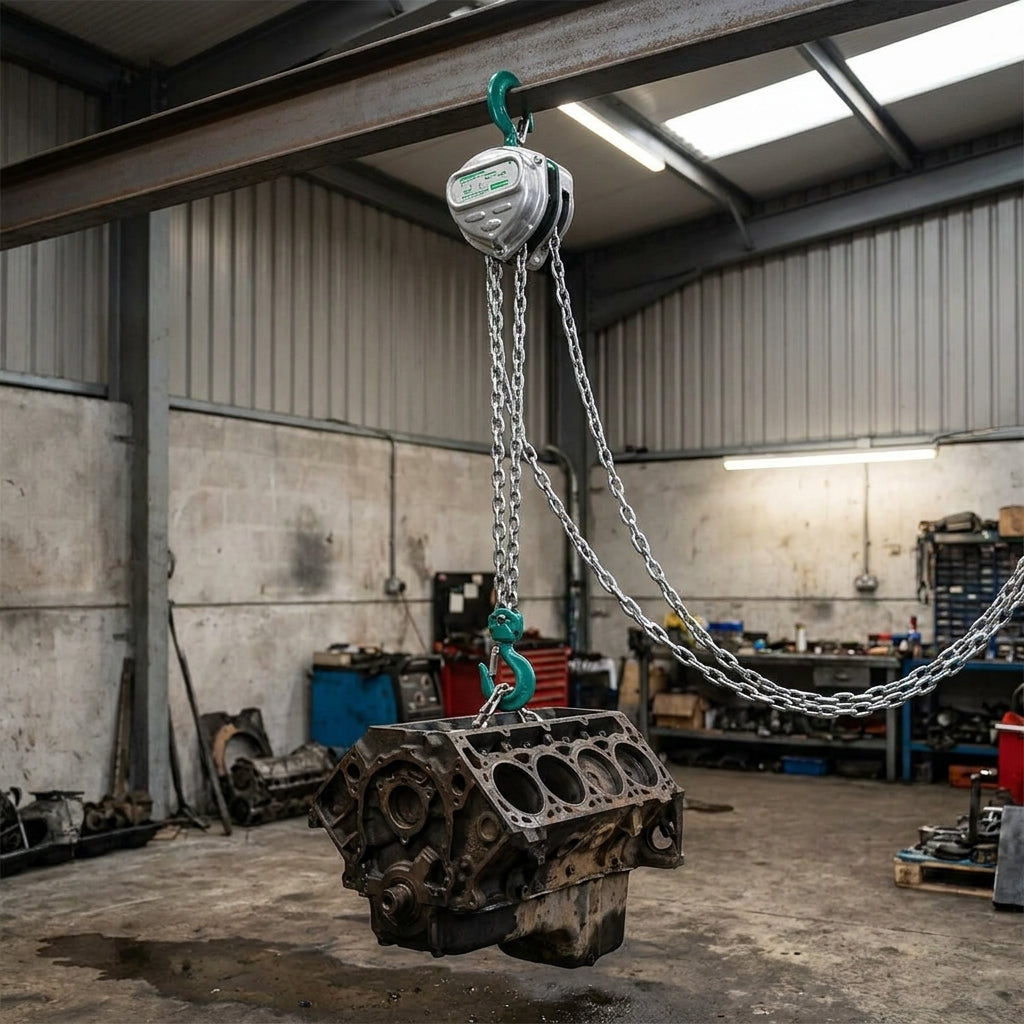

The Ableforge CB250 Mini Chain Block is a robust, easy-to-operate hand chain hoist designed to lift loads up to 250 kg with minimal effort. Compact enough for restricted spaces yet tough enough for demanding industrial environments, it is equally at home in factories, power plants, laboratories, transport applications, and outdoors.
Every unit is individually proof-load tested to 1.5× WLL (375 kg) and carries a unique serial number for full batch traceability. A superior Grade 100 Wafios-link load chain provides a minimum breaking load of 400% of the working load limit, while the double-pawl fail-safe brake system keeps the load secure even if one pawl fails. Forged and heat-treated load hooks feature built-in stretch indicators and a safety latch for added peace of mind. Asbestos-free brake linings and sealed roller bearings ensure long service life with minimal maintenance.
- Grade 100 Wafios-link load chain with MBL at 400% of WLL

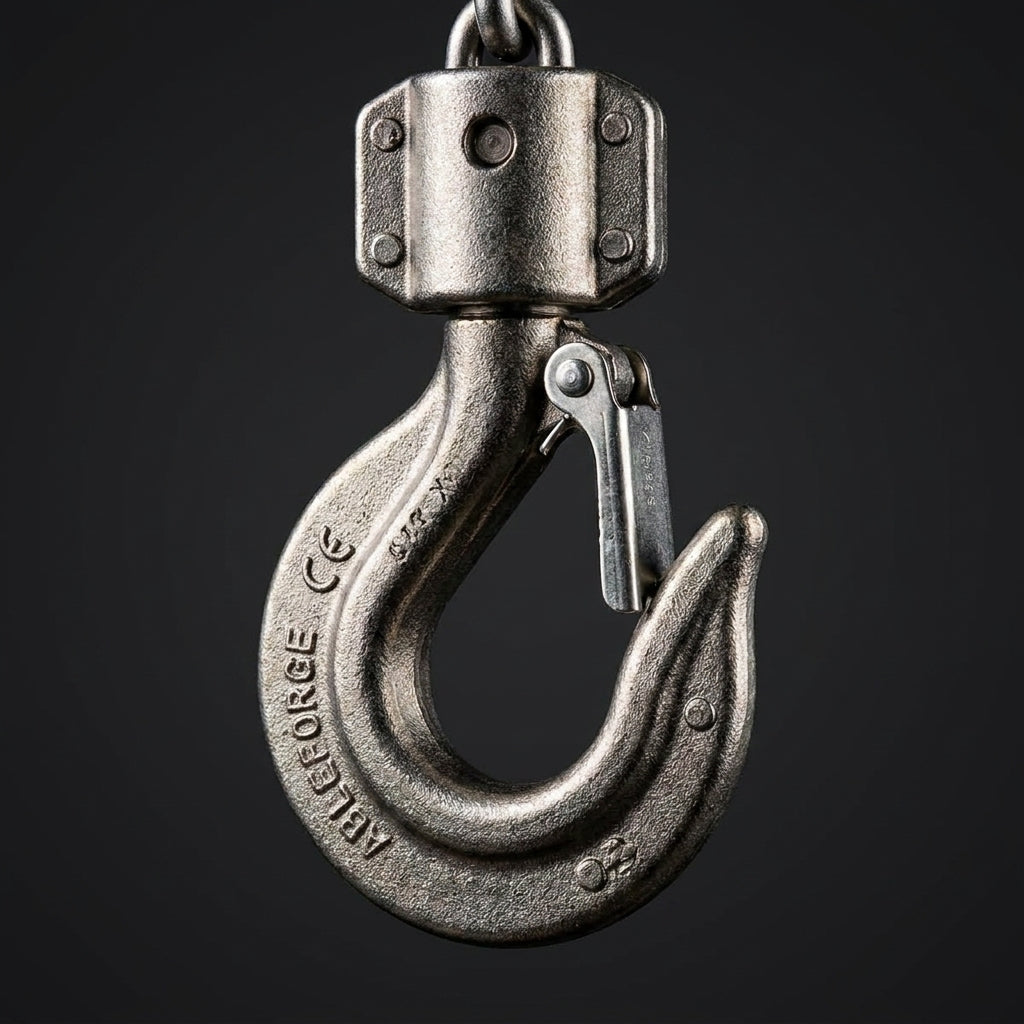

- Forged and heat-treated load hooks with stretch indicators and forged safety latch
- Double-pawl fail-safe brake with asbestos-free linings, no load-brake lubrication required
- Individually proof-load tested to 1.5× WLL (375 kg) with unique serial number
- Sealed roller bearings for smooth, low-maintenance operation
- 2,000-cycle batch tested for long-term reliability

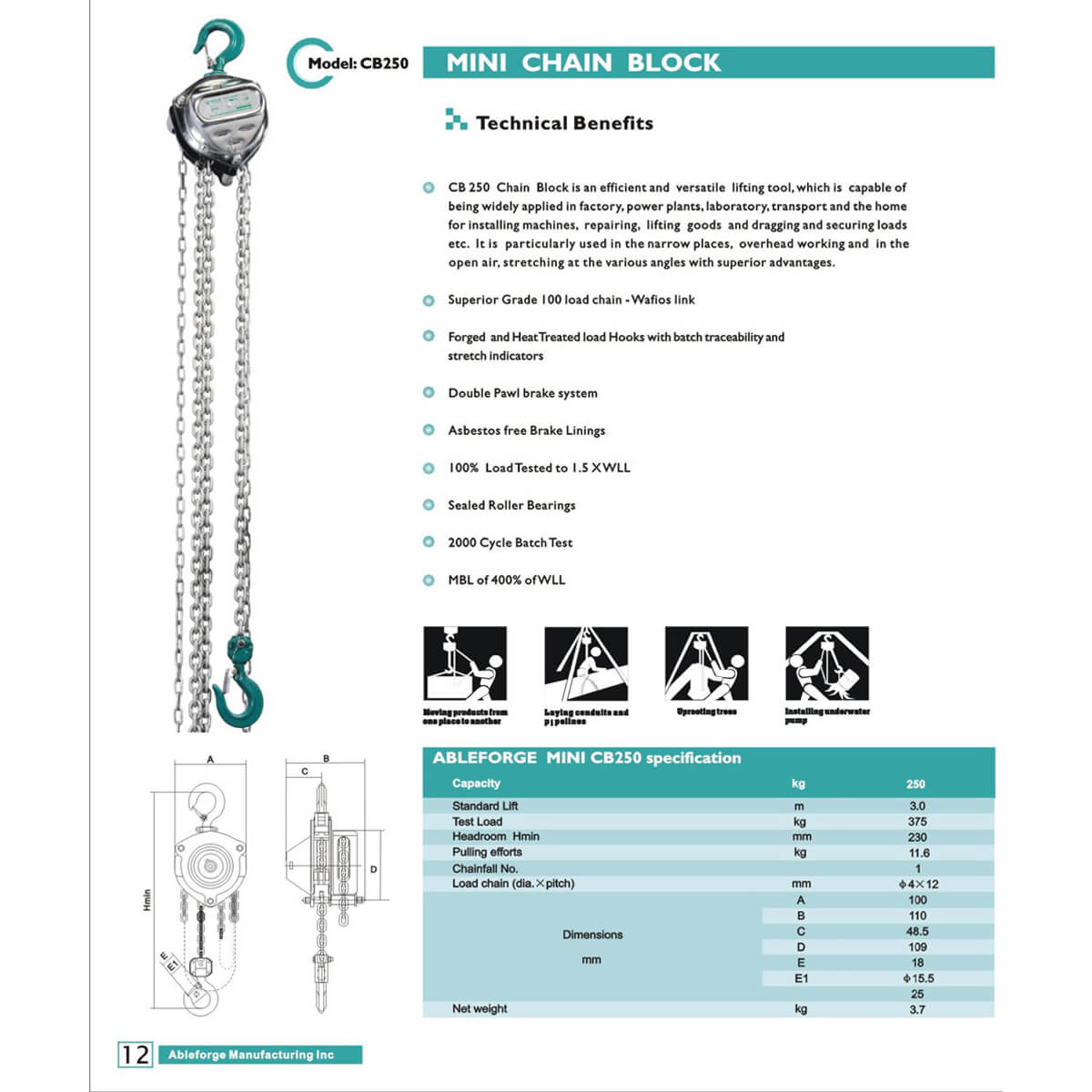

- Capacity: 250 kg | Standard lift: 3 m | Load chain: ⌀4 × 12 mm | Net weight: 3.7 kg
Key features
- 01250 kg capacity
- 02Grade 100 load chain
- 03Double-pawl fail-safe brake
- 043 m standard lift
- 05Compact & fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use chain blocks
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
