2000kg Lever Block 1.5m Drop
The ABLE LB-II Series 2-tonne lever block hoist delivers safe, precise lifting and load control with a 1.5 m standard lift, Grade 80 chain, and double-pawl brake system, ideal for industrial, construction and confined-space use.
- Working load limit
- 2,000 kg
- Chain size
- 8 mm
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

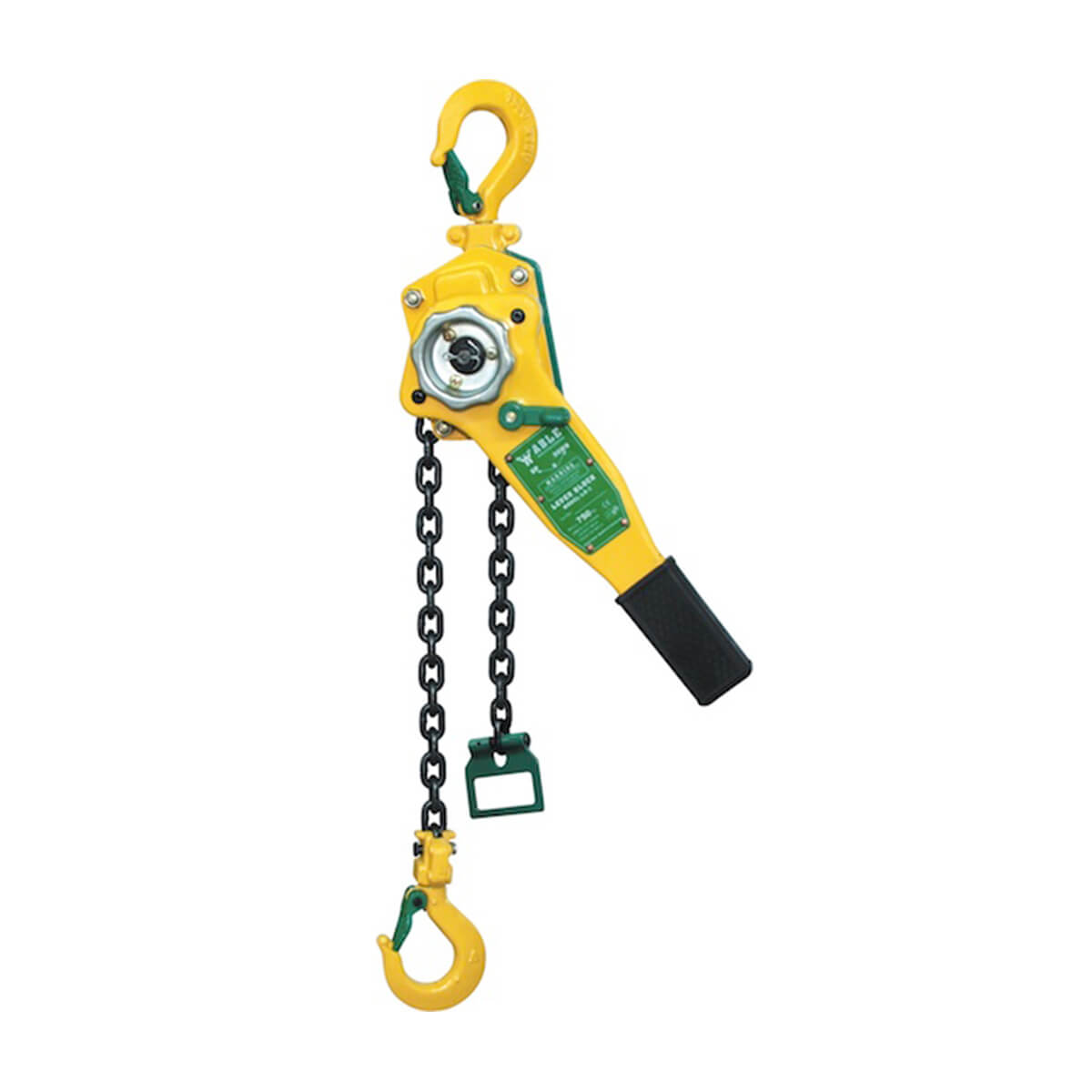

ABLE LB-II Series Lever Block, 2000 kg / 2 Tonne
The ABLE LB-II 200 is a robust, ratchet-and-pawl lever hoist designed for lifting, lowering and tensioning loads up to 2,000 kg in industrial, construction and maintenance environments. Its compact, portable body makes it the go-to choice for confined spaces where overhead chain blocks cannot be used easily.
Every unit is individually proof-load tested to 1.5× WLL (3.00 tonne test load) and carries a minimum breaking load (MBL) of 400% of WLL, giving you total confidence in its safety credentials. Conforming and tested to EN 13157-2010.

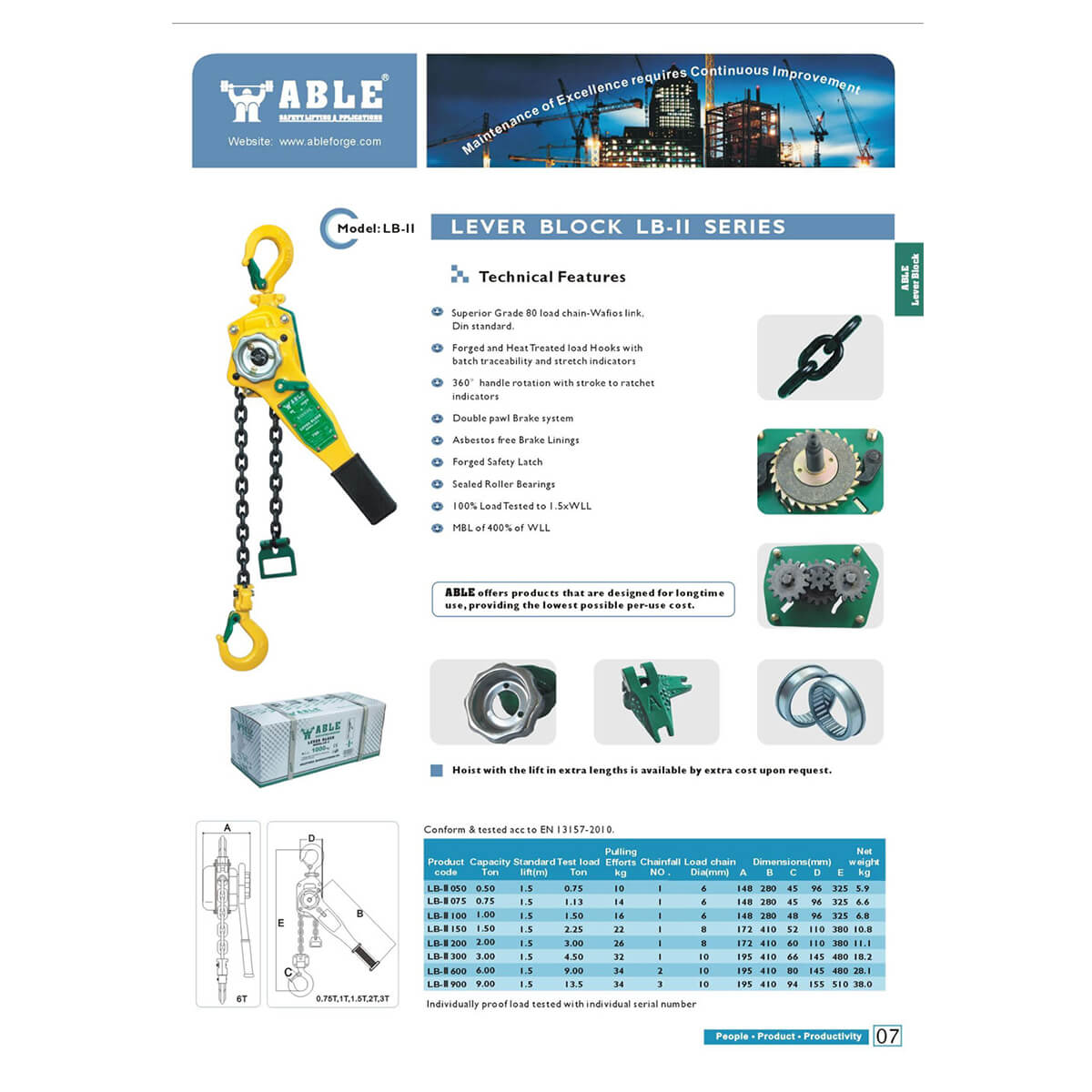

Key Technical Specifications (Model LB-II 200)
- Capacity: 2.00 tonne (2,000 kg)
- Standard lift: 1.5 m
- Test load: 3.00 tonne
- Pulling effort: 26 kg
- Chainfall: 1
- Load chain diameter: 8 mm
- Dimensions (mm): A 172 · B 410 · C 60 · D 110 · E 380
- Net weight: 11.1 kg
Product Features
- Superior Grade 80 load chain, Wafios link, DIN standard
- Forged and heat-treated load hooks with batch traceability and stretch indicators
- 360° handle rotation with stroke-to-ratchet indicators for fast, ergonomic operation
- Double-pawl brake system for secure load holding
- Asbestos-free brake linings for safer maintenance
- Forged safety latch on all hooks
- Sealed roller bearings for long service life with minimal maintenance
- 100% load tested to 1.5× WLL; MBL 400% of WLL
- Individually proof-load tested with individual serial number
Extended lift lengths are available at additional cost, please enquire at point of order.
Key features
- 012-tonne capacity
- 02Grade 80 chain
- 03Secure braking
- 04Ergonomic design
- 05Fully traceable
