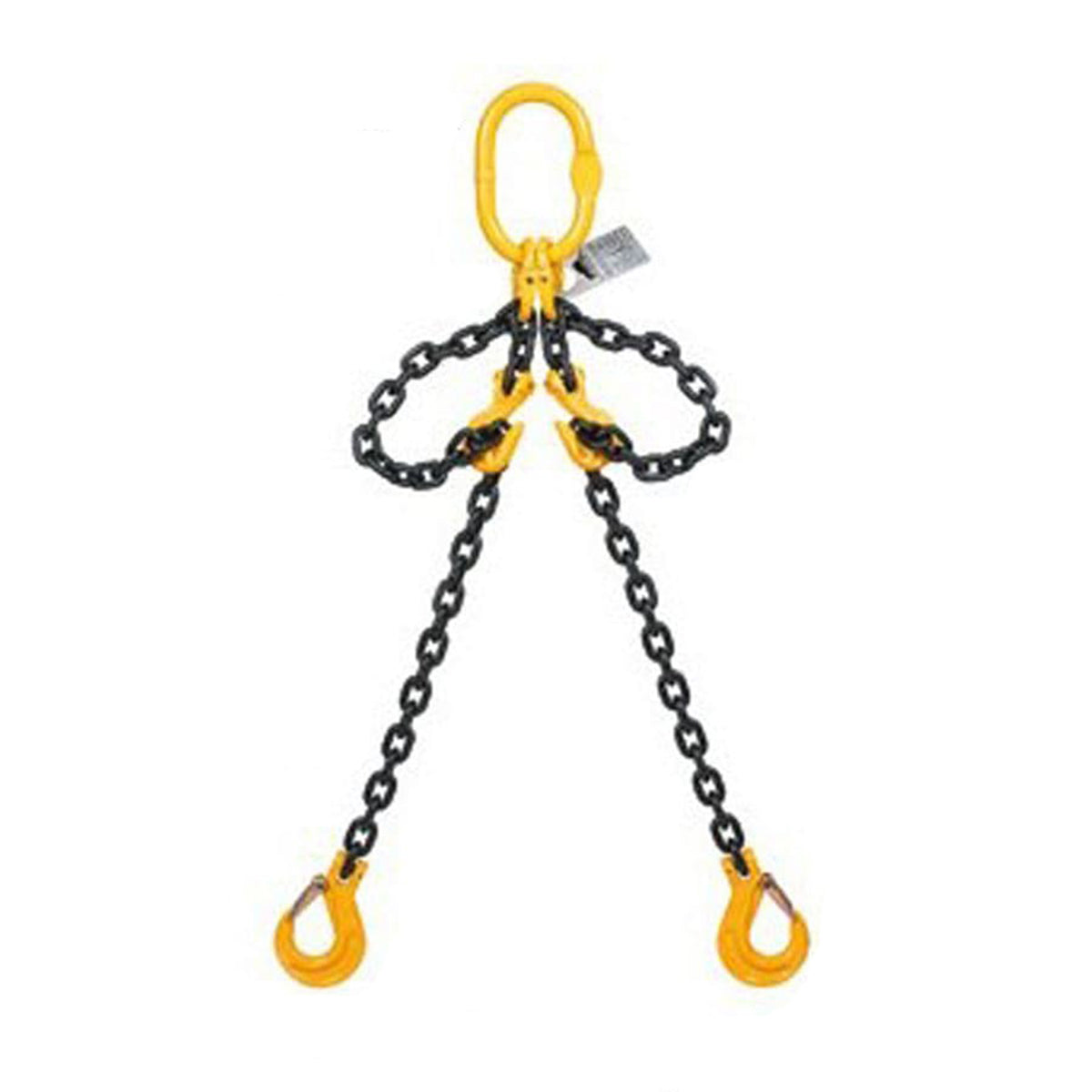

16mm Two Leg Lifting Chain Sling
A heavy-duty Grade 80 two-leg chain sling in 16mm link diameter, rated to 11,200 kg WLL. Supplied with certificate and ID tag for full regulatory compliance. Available in leg lengths from 1-10m.
- Working load limit
- 11,200 kg
- Min. breaking load
- 32,000 kg
- Chain size
- 16 mm
- Legs
- 2
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The 16mm two-leg lifting chain sling is a versatile and robust lifting solution widely used across construction, manufacturing, and heavy industry. Both legs connect to a single master link assembly at the top, allowing simultaneous use and balanced load distribution during lifting operations.
Constructed from Grade 80 alloy steel, the recognised minimum standard for lifting chain, every link is quenched, tempered, and proof tested to ensure consistent performance and safety. Chain is produced using the German WAFIOS manufacturing process, which combines computerised automated knitting, spot welding, and calibration to guarantee that every link is identical in form and strength.
Choose from three hook options, Clevis Sling Hook, Clevis Self Locking Hook, or Clevis "C" Hook, and select leg lengths from 1 m to 10 m to suit your application. An optional shortener/clutch is also available. Each assembly is supplied complete with a test certificate and a permanently embossed identification tag to meet current lifting equipment regulations and ensure full traceability.
- Working Load Limit (WLL): 11,200 kg (11.2 t)
- Chain diameter: 16 mm
- Grade 80 alloy steel, quenched, tempered, and proof tested
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- Produced via WAFIOS process, every link identical in size and strength
- Permanently embossed links for identification and traceability
- Available hook types: Clevis Sling Hook, Clevis Self Locking Hook, Clevis "C" Hook
- Leg lengths available: 1 m, 10 m
- Supplied with test certificate and identification tag
Key features
- 0111,200 kg (112 t) Working Load Limit
- 02Proof tested to 25× WLL
- 03Three hook options available
- 04Leg lengths from 1 m to 10 m
- 05Supplied with a test certificate and permanently embossed ID tag
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
