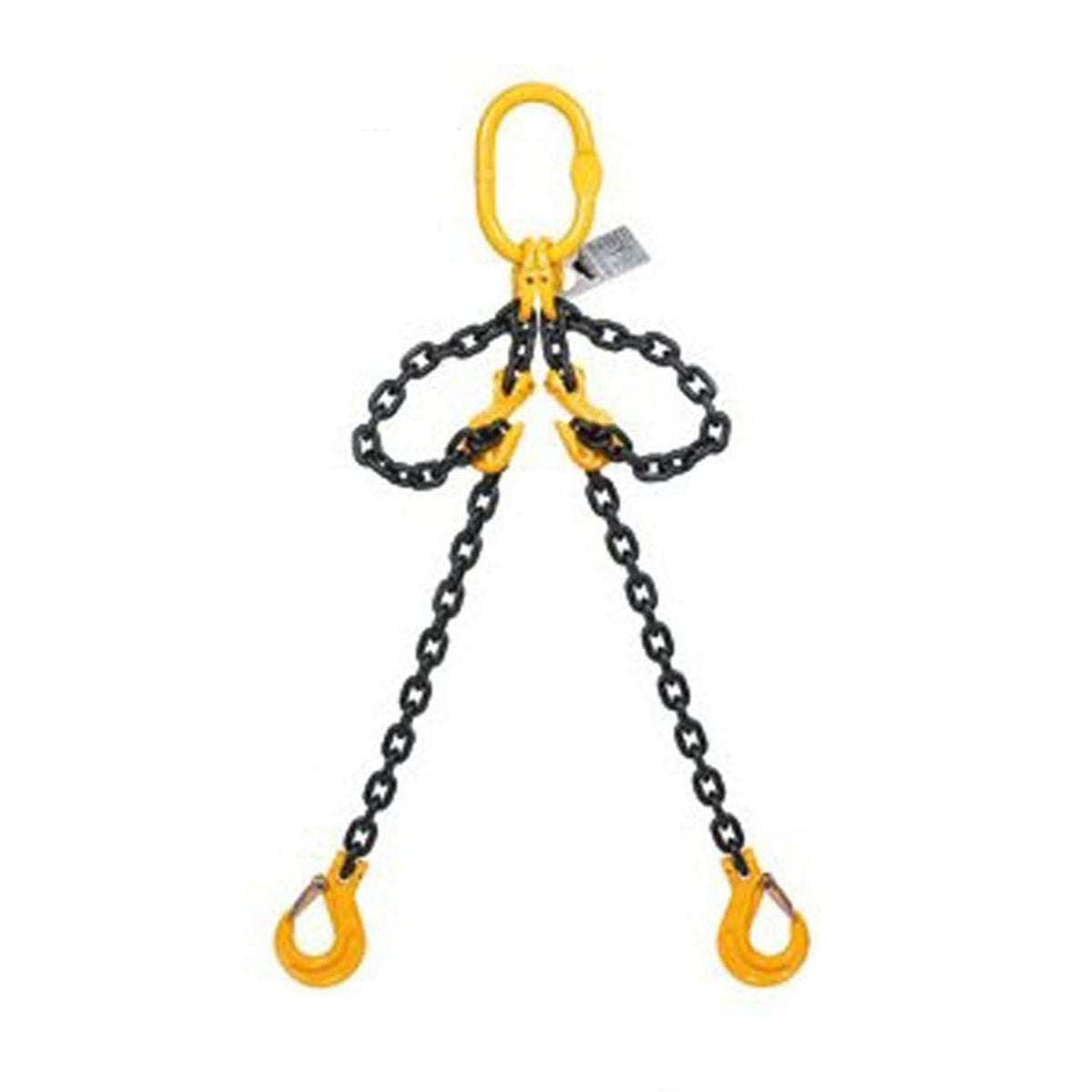

10mm Two Leg Lifting Chain Sling
A Grade 80 alloy steel two-leg chain sling in 10mm link diameter, rated to 4,250 kg WLL. Available with choice of hook type and leg lengths from 1-10 m, each supplied with certificate and ID tag.
- Working load limit
- 4,250 kg
- Min. breaking load
- 12,600 kg
- Chain size
- 10 mm
- Legs
- 2
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 10mm two-leg lifting chain sling is built for reliable, regulated lifting in construction, manufacturing, and heavy industry. Both legs connect via a single top master link assembly, allowing simultaneous use for balanced load control. Every component is manufactured from Grade 80 high-tensile alloy steel, the minimum grade required for lifting equipment, and produced using the German WAFIOS method, which ensures computerised automated knitting, spot welding, and calibration so that every link is geometrically identical.
The chain is permanently embossed for full identification and traceability, and each sling is proof load tested to 2.5 times the working load limit (WLL), with an ultimate breaking load of 4× WLL. A test certificate and identification tag are supplied as standard to meet current lifting regulations.
Choose your preferred hook type, clevis sling hook, clevis self-locking safety hook, or clevis 'C' hook, and select a leg length from 1 m to 10 m to suit your application. An optional shortening clutch (grab hook) is also available to adjust working length on site.
- Working Load Limit: 4,250 kg (4.25 t) at 0°, verify angle factors for angled lifts
- Chain diameter: 10 mm, Grade 80 alloy steel
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- Choice of clevis sling hook, clevis self-locking hook, or clevis 'C' hook
- Leg lengths available: 1 m, 10 m
- Optional shortening clutch (grab hook) available per leg
- Supplied with test certificate and identification tag for full regulatory compliance
Key features
- 01Grade 80 alloy steel construction
- 024,250 kg working load limit
- 03Choice of hook type
- 04Flexible leg lengths
- 05Certified & traceable
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
