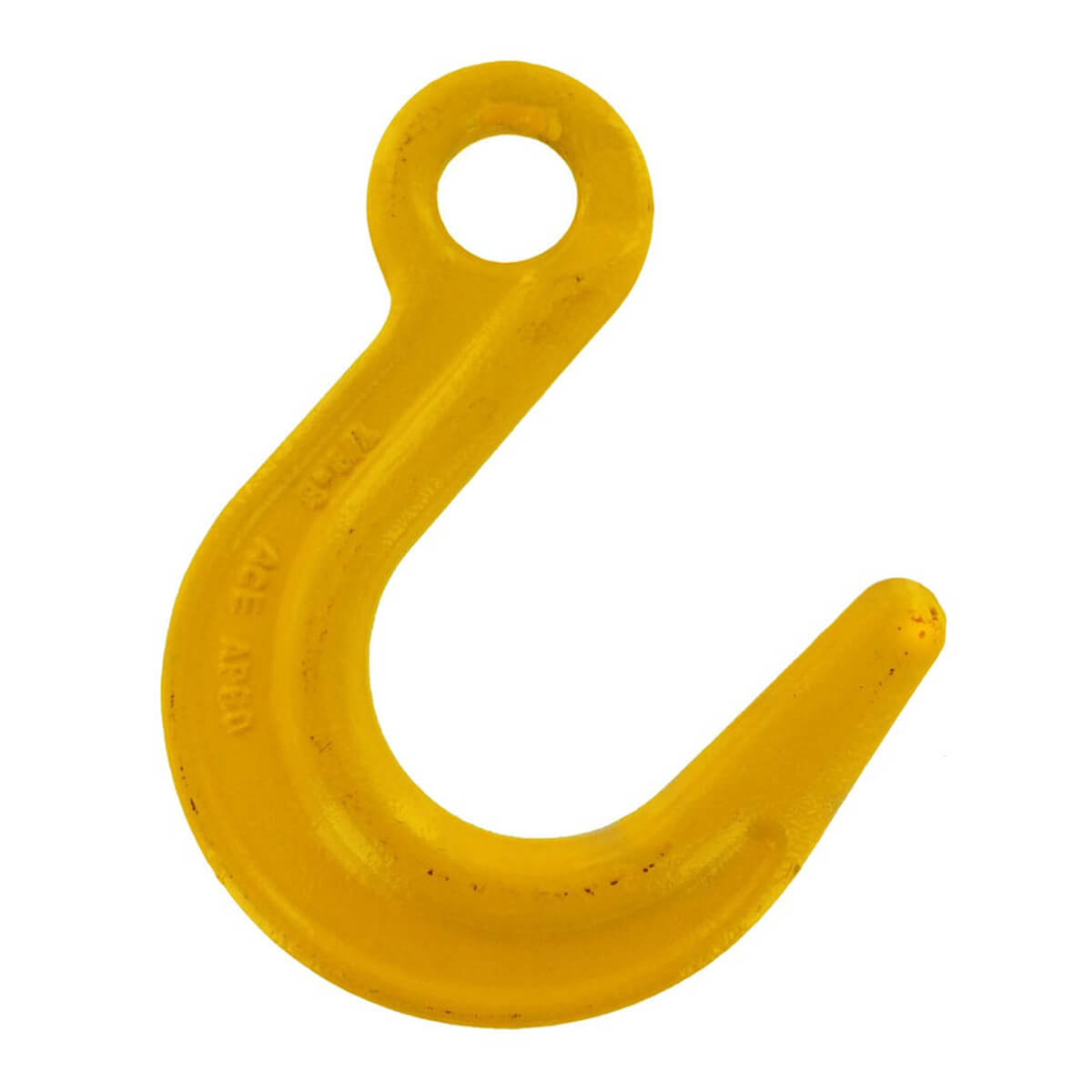

16mm Foundry Hook with Large Opening Eye – Grade 80
A Grade 80 alloy steel foundry hook with a large throat opening, designed for lifting applications requiring oversized attachment points. Compatible with 16 mm Grade 80 chain. WLL 8 t.
- Working load limit
- 8,000 kg
- Min. breaking load
- 32,000 kg
- Grade
- Grade 80
- Fittings
- Foundry hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

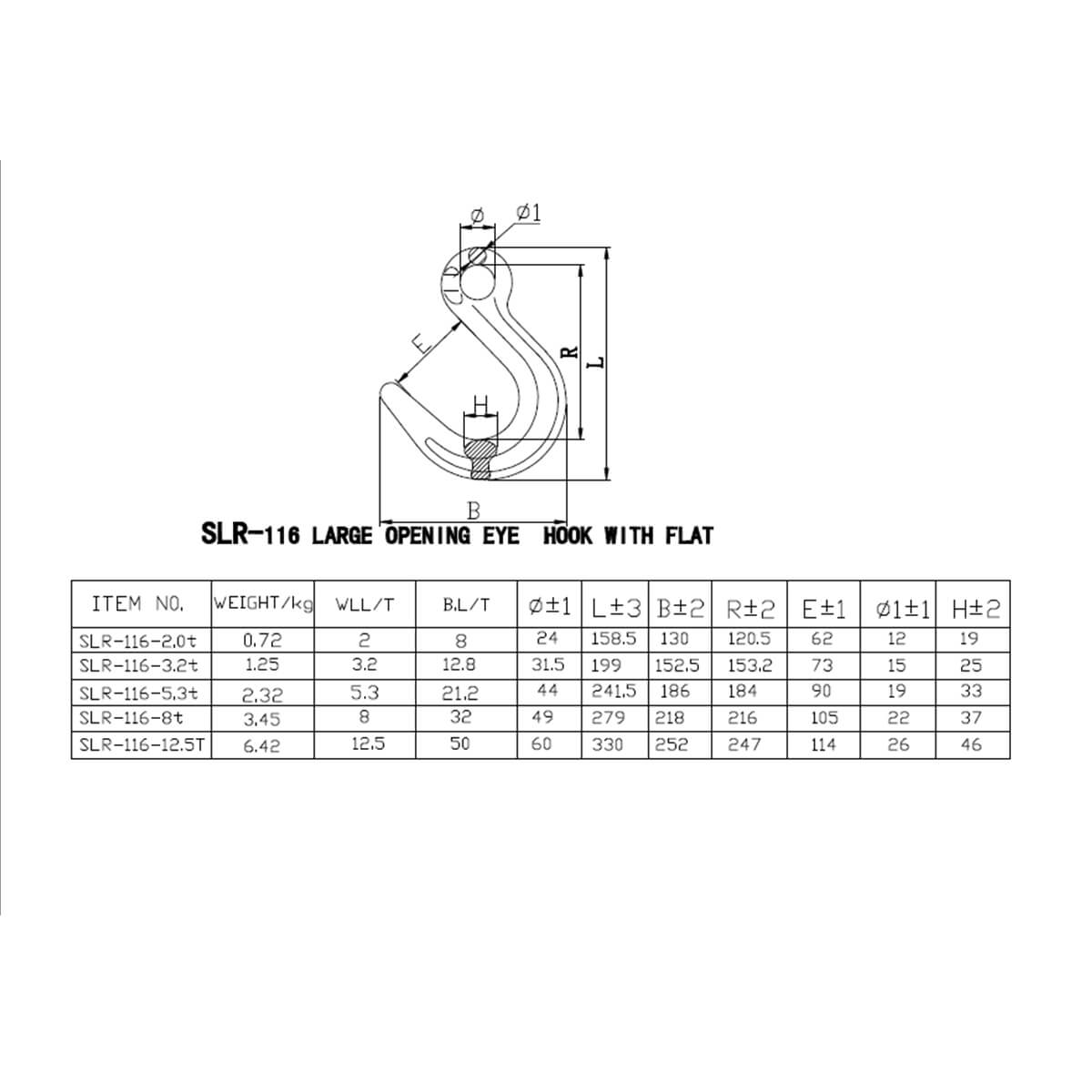

The 16 mm Grade 80 foundry hook (SLR-116-8t) is a forged alloy steel lifting hook designed for applications that demand an oversized throat opening, most notably the cast-metal and foundry industry, where the wide opening must accommodate the trunnions of a moulding box. The hook is equally at home in any heavy lifting scenario where a standard hook throat is too narrow.
Manufactured from high-grade alloy steel and subjected to a quench-and-temper heat treatment process, each hook carries a Working Load Limit (WLL) of 8 tonnes and is proof-load tested to 2.5× WLL, with an ultimate breaking load of 4× WLL. The hook connects to Grade 80 chain or wire rope via G-Link or BL couplers and is permanently marked with brand, WLL, batch number and size for traceability.
- High-grade alloy steel, Grade 80, quenched and tempered for maximum strength and durability
- Large throat opening specifically designed for foundry and oversized-attachment lifting applications
- Compatible with Grade 80 alloy chain and wire rope; connects via G-Link or BL couplers
- Proof-load tested to 2.5× WLL; ultimate load 4× WLL
- Permanently marked with brand, WLL, batch number and size for full traceability
Finished in a highly visible yellow coating, this hook is a reliable, competitively priced component for professional lifting assemblies.
Key features
- 01Wide throat opening
- 02Grade 80 alloy steel
- 03Proof load tested
- 04Versatile compatibility
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
