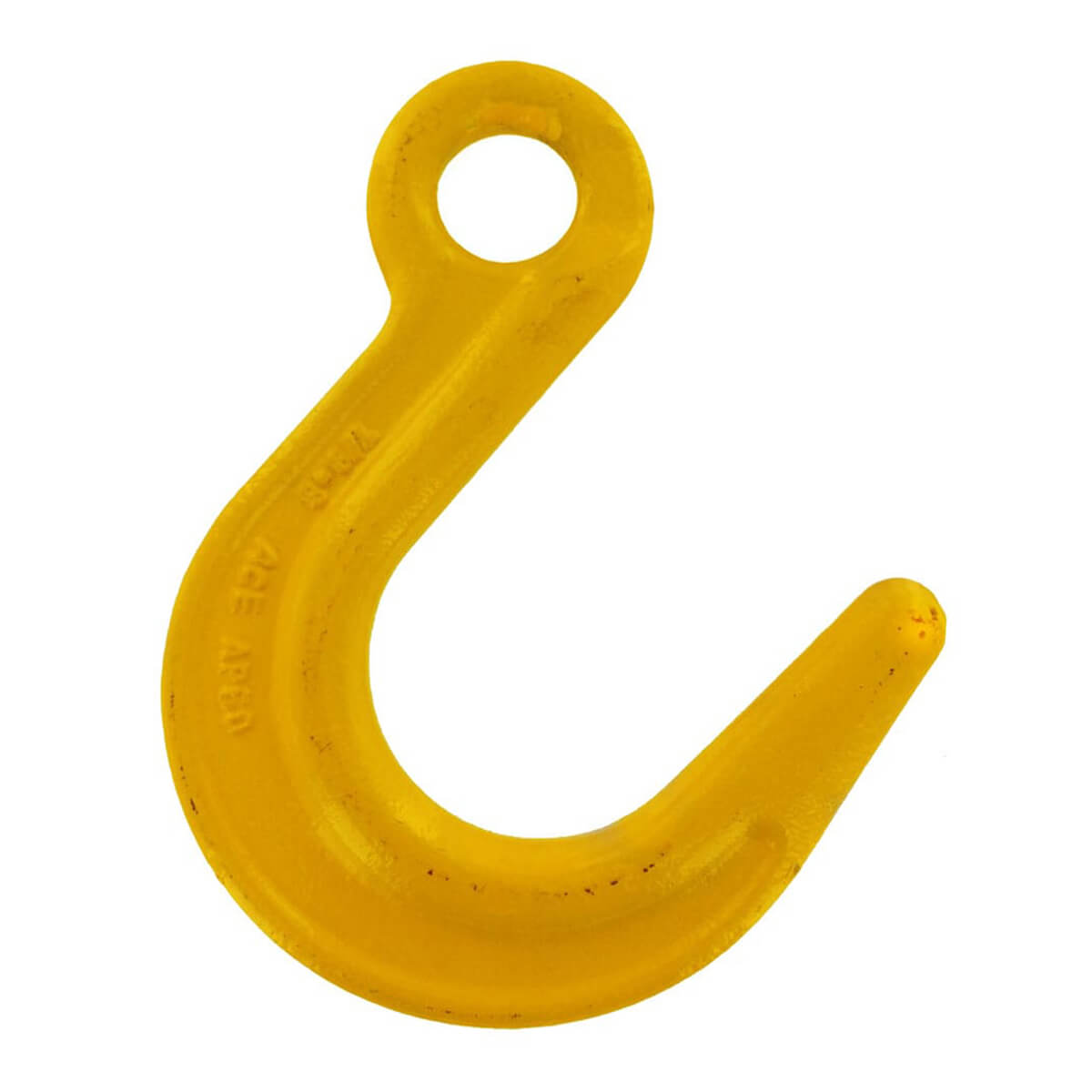

7/8mm Foundry Hook – Grade 80 Eye Hook with Large Opening
A Grade 80 alloy steel foundry hook with large throat opening, designed for lifting applications requiring oversized attachment points. Compatible with 7/8mm Grade 80 chain and wire rope.
- Working load limit
- 2,120 kg
- Min. breaking load
- 8,000 kg
- Grade
- Grade 80
- Fittings
- Foundry hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Foundry hooks are specialist lifting components designed primarily for the cast metal industry, where a wide throat opening is essential to accommodate the trunnions of a moulding box. Their large opening also makes them suitable for a broad range of other heavy lifting applications where a standard hook throat is too narrow.
This 7/8mm foundry hook is manufactured from high-grade alloy steel and is quenched and tempered to Grade 80, delivering a Working Load Limit of 2,120 kg. It is compatible with Grade 80 alloy chain and can be connected via G-Link and BL couplers to both chain and wire rope. Each hook is marked with the brand, WLL, batch number and size for full traceability.
- Made from high-grade alloy steel, Grade 80 (Quenched and Tempered)
- For use with Grade 80 alloy chain and wire rope in lifting applications
- Large throat opening accommodates trunnions and oversized attachment points
- Marked with brand, WLL, batch number and size for traceability
- Proof load tested to 2.5× WLL; ultimate load capacity 4× WLL
Key features
- 01Grade 80 rated
- 02Large throat opening
- 03Versatile compatibility
- 04Fully proof tested
- 05Fully traceable
Specification
