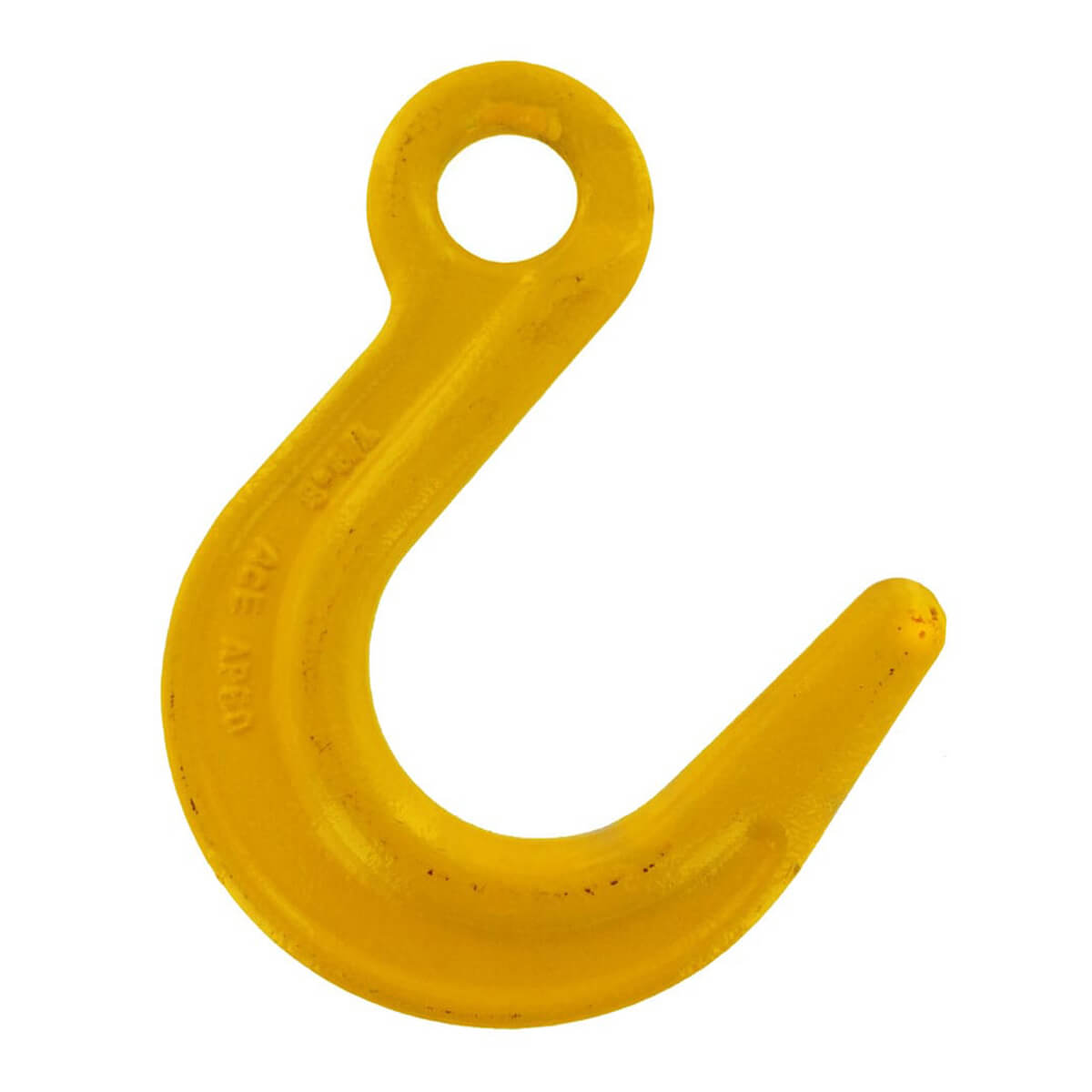

10mm Foundry Hook – Grade 80 Large Opening Eye Hook
A Grade 80 alloy steel foundry hook with a wide throat opening, designed for lifting applications requiring oversized attachment points. Compatible with 10 mm Grade 80 chain and wire rope.
- Working load limit
- 3,100 kg
- Min. breaking load
- 12,800 kg
- Grade
- Grade 80
- Fittings
- Foundry hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Foundry hooks are specialist lifting components primarily used in the cast metal industry, where their extra-wide throat opening is essential for accommodating the trunnions of moulding boxes. Their large opening also makes them invaluable across many other heavy-duty lifting applications where standard hooks cannot provide sufficient clearance.
This 10 mm foundry hook is forged from high-grade alloy steel and heat-treated (quenched and tempered) to Grade 80, delivering a Working Load Limit of 3,100 kg. It can be connected to Grade 80 alloy chain or wire rope using G-Link or BL couplers, and is supplied in a distinctive yellow/green finish for easy identification on site.
Every hook is proof load tested to 2.5× WLL and marked with brand, WLL, batch number and size, ensuring full traceability and compliance with lifting equipment requirements.
- Forged high-grade alloy steel, Grade 80 (Quenched and Tempered)
- Wide throat opening suits trunnions, moulding boxes and oversized attachment points
- Compatible with Grade 80 alloy chain and wire rope via G-Link and BL couplers
- Proof load tested to 2.5× WLL; ultimate load 4× rated capacity
- Marked with brand, WLL, batch number and size for full traceability
Key features
- 01Wide throat opening
- 02Grade 80 alloy steel
- 033,100 kg working load limit
- 04Proof load tested
- 05Versatile compatibility
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
