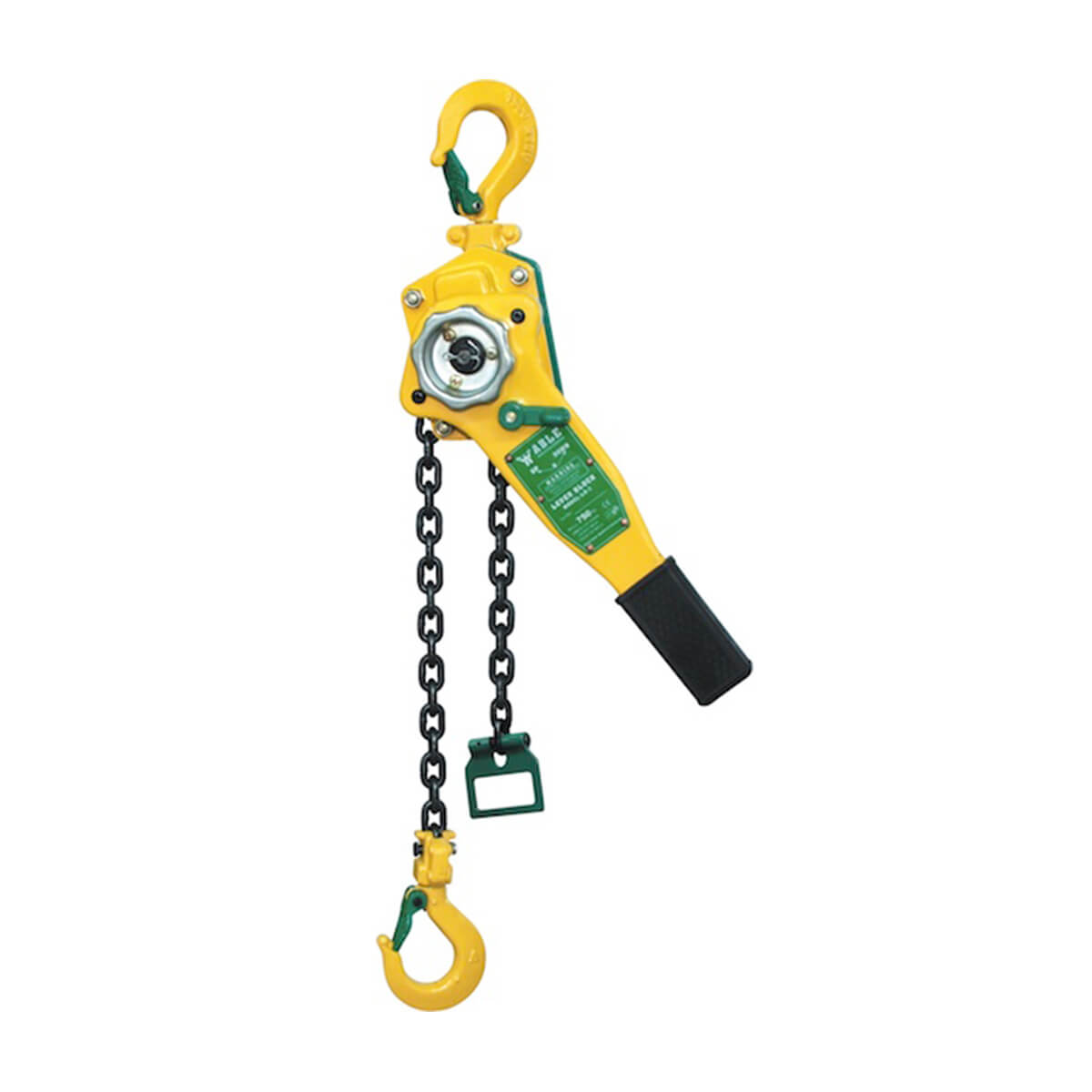

1500kg Lever Block 1.5m Drop
Heavy-duty ABLE LB-II Series lever block hoist with a 1,500 kg working load limit and 1.5 m standard lift. Grade 80 load chain, double-pawl brake, and forged safety hooks for safe, controlled lifting in confined spaces.
- Working load limit
- 1,500 kg
- Chain size
- 8 mm
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
ABLE LB-II Series Lever Block, 1,500 kg / 1.5 m Lift
The ABLE LB-II 150 is a professional-grade lever block hoist designed for lifting, lowering, and load tensioning in workshops, construction sites, and any environment where precise, controlled movement is required. Its compact, portable design makes it particularly well-suited to confined spaces where larger hoisting equipment cannot be used.
Built to conform and tested to EN 13157-2010, every unit is individually proof-load tested to 1.5× WLL with its own serial number, and the minimum breaking load is rated at 400% of WLL, giving operators complete confidence in the equipment's integrity.
Key Technical Features
- Superior Grade 80 load chain, Wafios link, DIN standard for maximum strength and reliability
- Forged and heat-treated load hooks, with batch traceability and built-in stretch indicators for ongoing safety monitoring
- 360° handle rotation with stroke-to-ratchet indicators for smooth, efficient operation
- Double-pawl brake system with asbestos-free brake linings for safe load holding
- Forged safety latch and sealed roller bearings for long service life with minimal maintenance
- 100% load tested to 1.5× WLL and MBL of 400% of WLL
Technical Specification (Model LB-II 150)
- Capacity: 1.5 Tonne
- Standard Lift: 1.5 m
- Test Load: 2.25 Tonne
- Pulling Effort: 22 kg
- Chainfall: 1
- Load Chain Diameter: 8 mm
- Dimensions (A×B×C×D×E): 172 × 410 × 52 × 110 × 380 mm
- Net Weight: 10.8 kg
Extended lift lengths are available at additional cost, please contact us for details.
Key features
- 011,500 kg (15 tonne) working load limit
- 02Conforms to EN 13157-2010
- 03Grade 80 Wafios-link DIN-standard load chain
- 04360° handle rotation
- 05Sealed roller bearings
