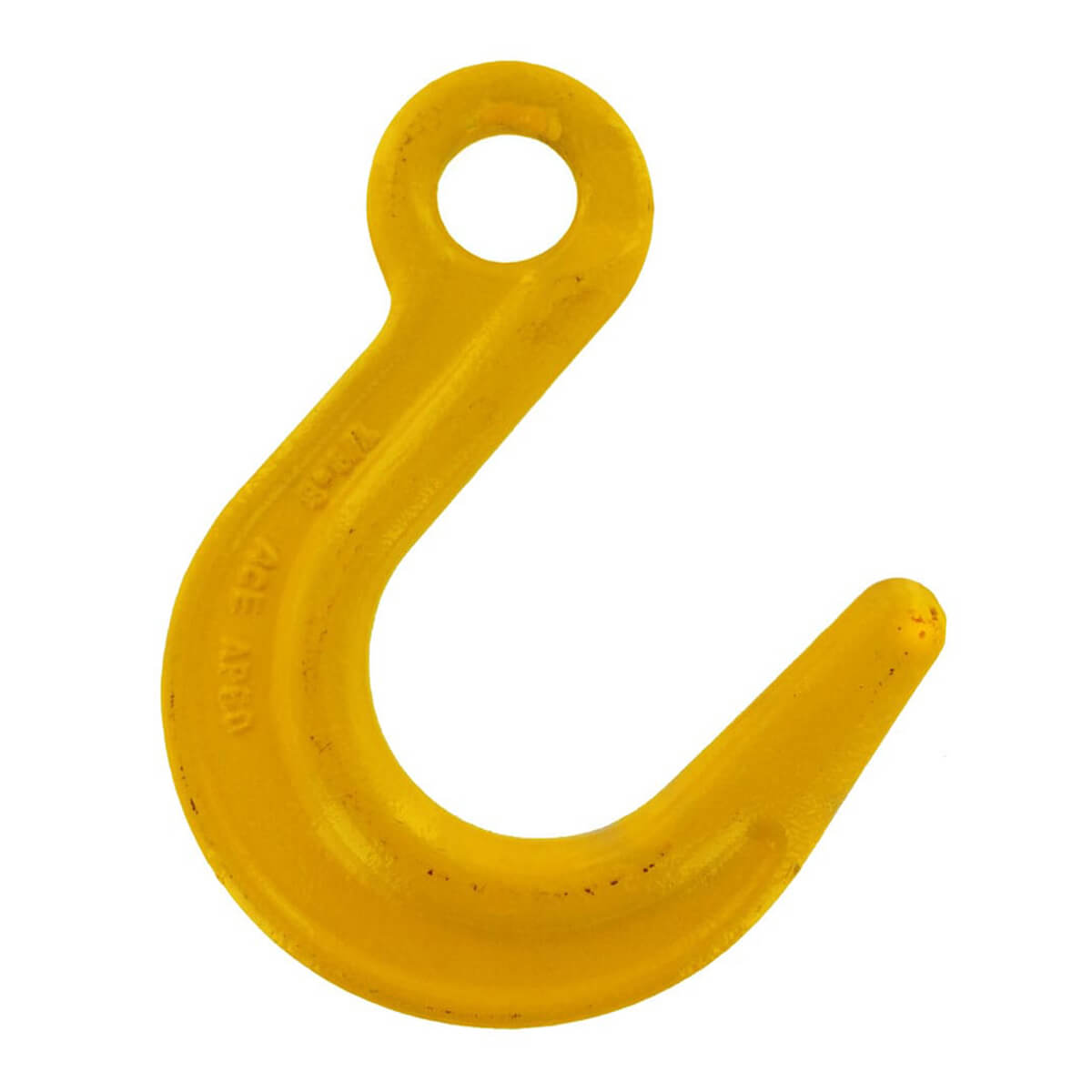

13mm Foundry Hook – Grade 80 Large Opening Eye Hook with Flat
A Grade 80 alloy steel foundry hook with a large throat opening, designed for use with 13 mm lifting chain in foundry, casting and heavy-lift applications. WLL 5,300 kg.
- Working load limit
- 5,300 kg
- Min. breaking load
- 21,200 kg
- Chain size
- 80 in
- Grade
- Grade 80
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Foundry hooks are designed primarily for the cast-metal industry, where an oversized throat opening is needed to engage the trunnions of a moulding box, but their wide opening makes them equally useful across a broad range of heavy-lift applications. This 13 mm hook (model SLR-116-5.3t) is forged from high-grade alloy steel, quenched and tempered to Grade 80, and finished in a highly visible yellow coating.
The large opening eye hook with flat design allows fast, positive engagement and can be connected to Grade 80 alloy chain or wire rope using G-Link or BL couplers. Every hook is individually marked with the brand, WLL, batch number and size for full traceability.
- Made from high-grade alloy steel, Grade 80 (quenched and tempered)
- Compatible with Grade 80 alloy chain and wire rope for lifting applications
- Marked with brand, WLL, batch number and size for traceability
- Proof load tested to 2.5 × WLL
- Ultimate breaking load is 4 × WLL
Key features
- 01Grade 80 alloy steel
- 025,300 kg WLL
- 03Oversized throat opening
- 04Fully compatible
- 05Traceable & tested

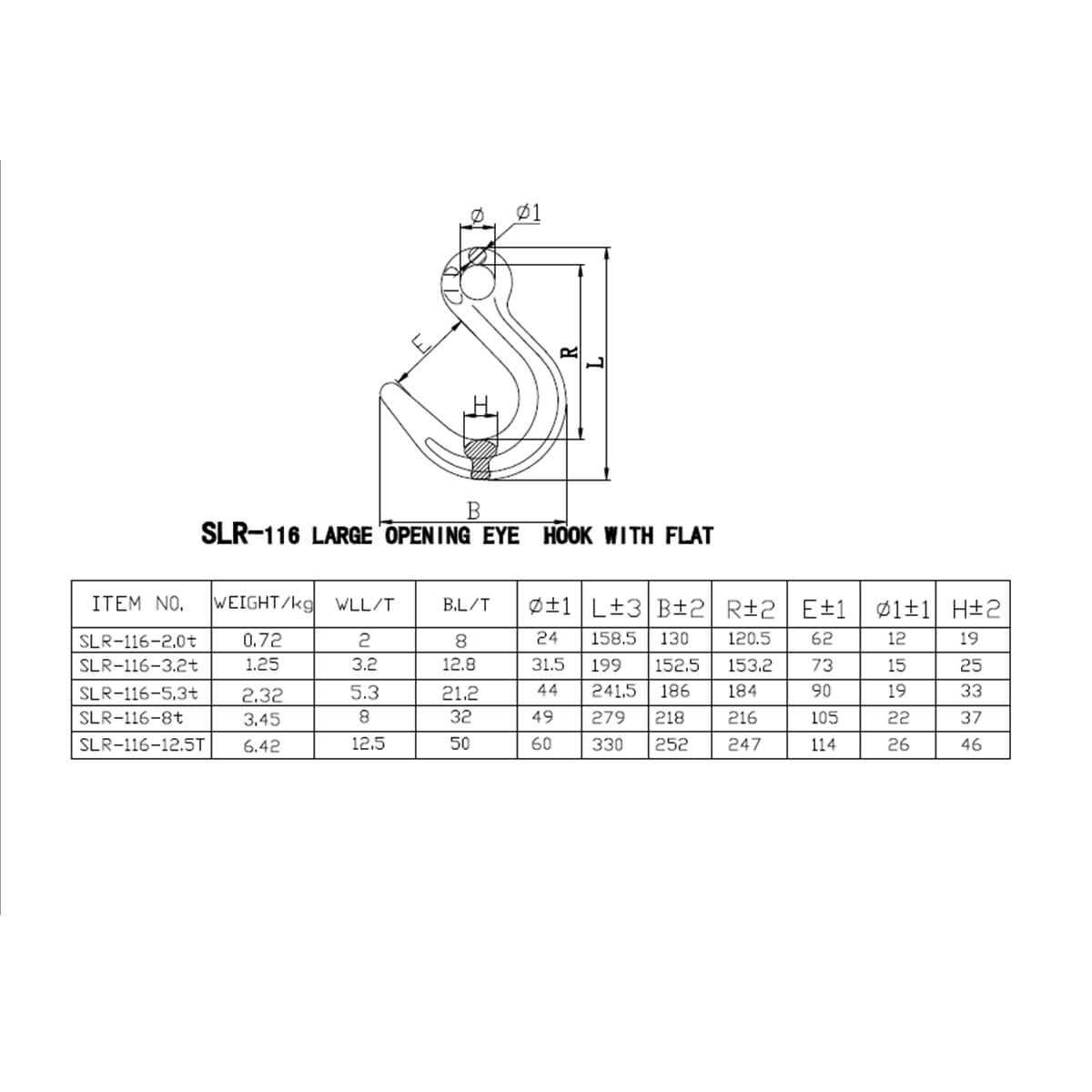

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
