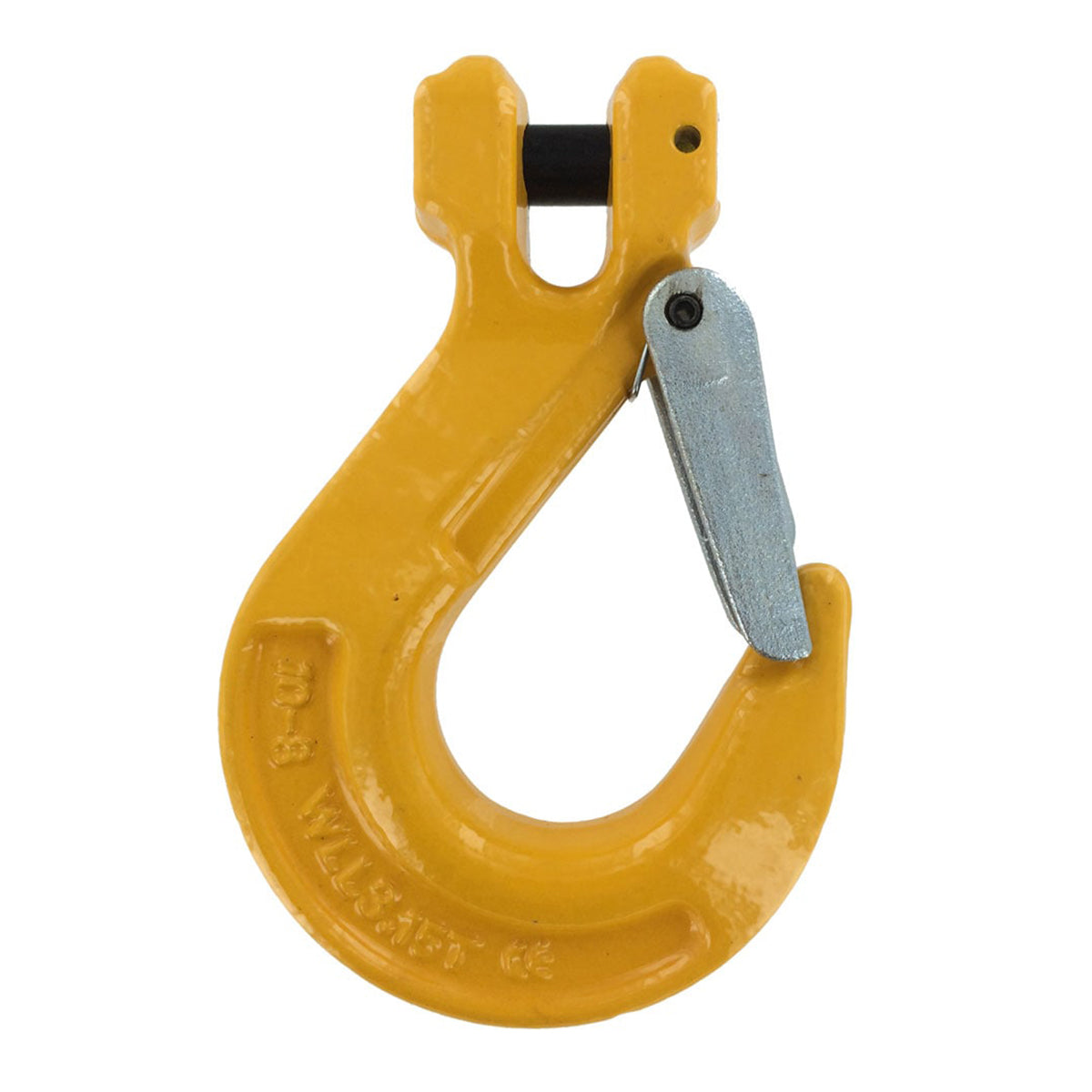

13mm Clevis Sling Hook
Grade 80 forged alloy steel clevis sling hook with safety latch, designed for direct chain attachment in industrial lifting applications. WLL 5,300 kg, 13 mm chain size.
- Working load limit
- 5,300 kg
- Min. breaking load
- 21,200 kg
- Grade
- Grade 80
- Material
- Forged alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The Ableforged 13 mm Clevis Sling Hook (Model HCS 013) is a general-purpose, Grade 80 forged alloy steel hook designed for direct attachment to 13 mm alloy lifting chain, no separate connector required. Its clevis opening is sized to accept only the correct chain diameter, reducing the risk of misuse on site.
A built-in safety latch with a stainless steel spring keeps the hook closed under load and prevents accidental disengagement, providing an essential additional layer of lifting safety. The large throat opening and carefully contoured body minimise fouling when rigging slings, making it quick and easy to use in demanding environments.
Every hook is embossed with the brand, WLL, batch number and size for full traceability, and is proof-load tested to 2.5 times the working load limit before leaving the factory.
- Material: forged alloy steel, quenched and tempered (Grade 80)
- Chain size: 13 mm
- Working Load Limit (WLL): 5,300 kg (5.3 t) at 4:1 safety factor
- Safety latch with stainless steel spring for corrosion resistance
- Proof load tested to 2.5 × WLL; ultimate load 4 × capacity
- Fatigue rated to 1.5 × WLL at 20,000 cycles
- Embossed with brand, WLL, batch number and size for traceability

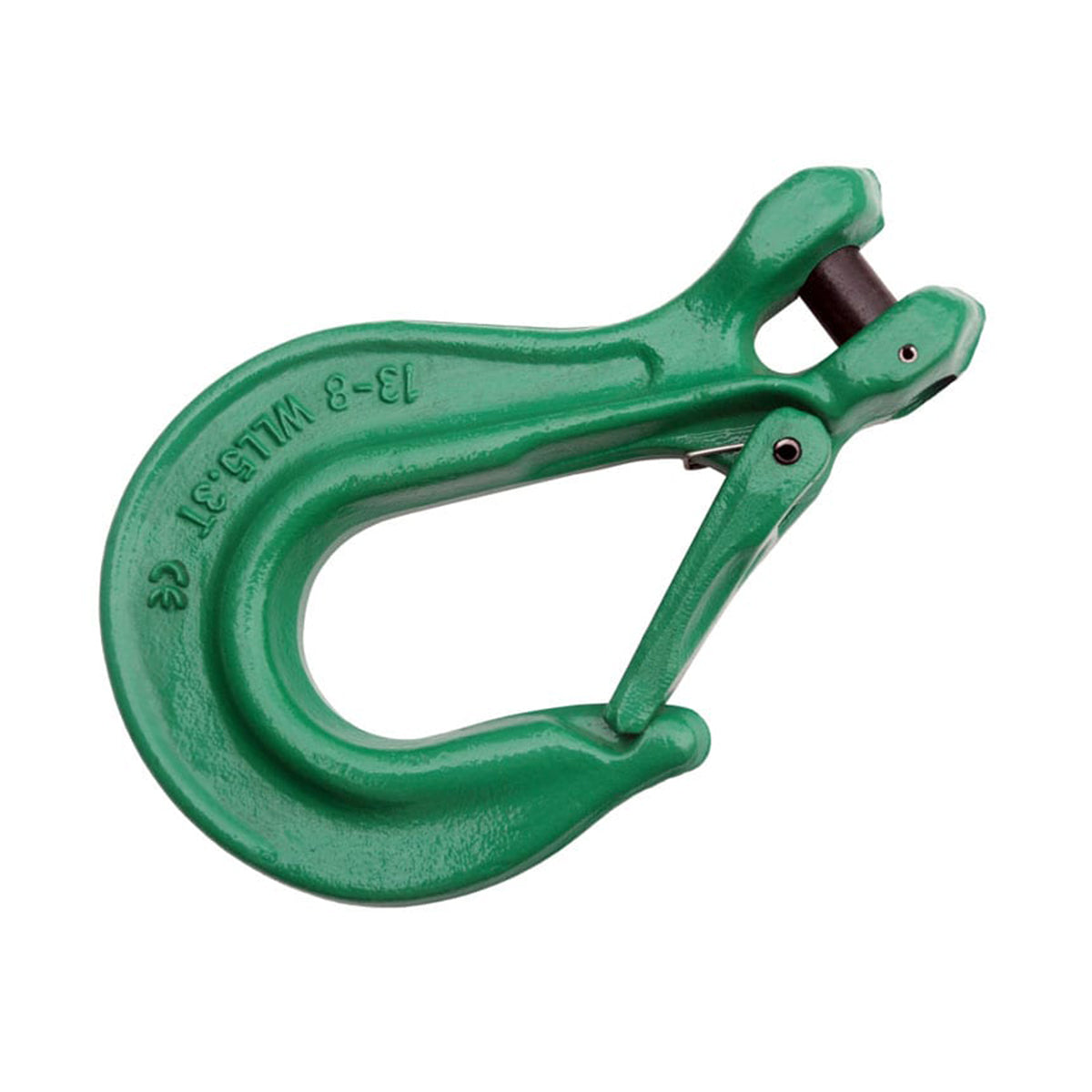

- Painted finish, available in yellow or green
Key features
- 01Direct chain fit
- 02Safety latch included
- 03Grade 80 alloy steel
- 04Proof load tested
- 05Full traceability

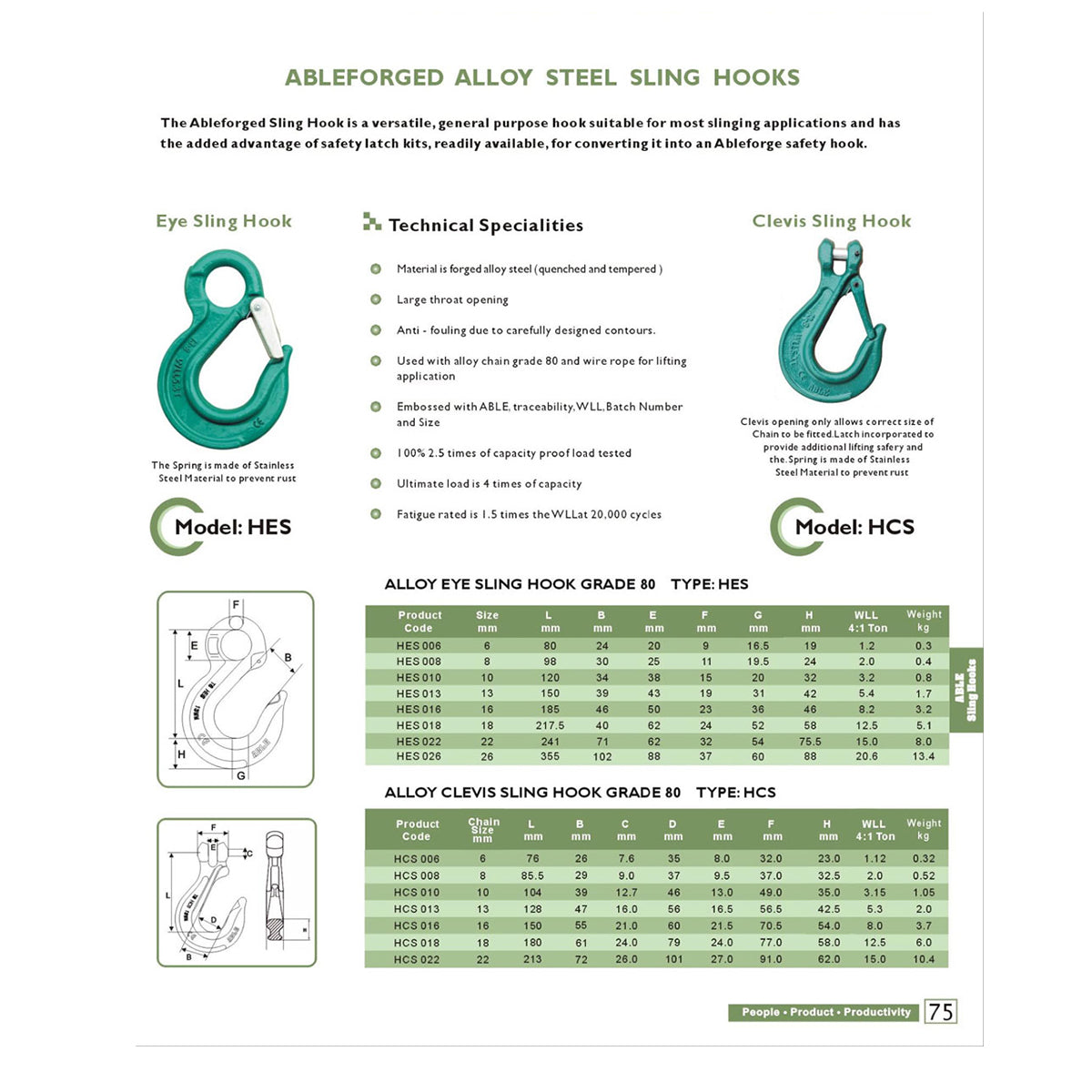

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
