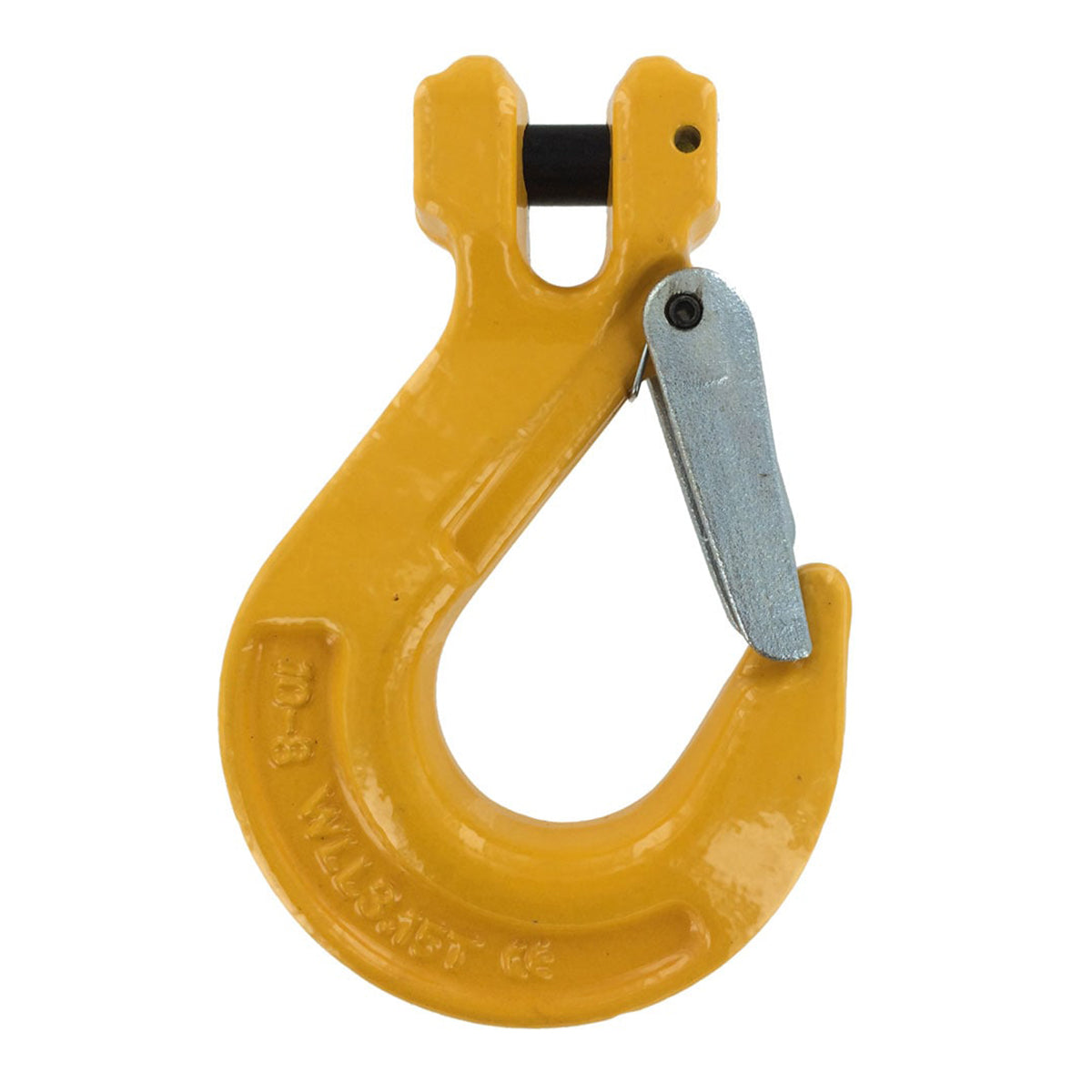

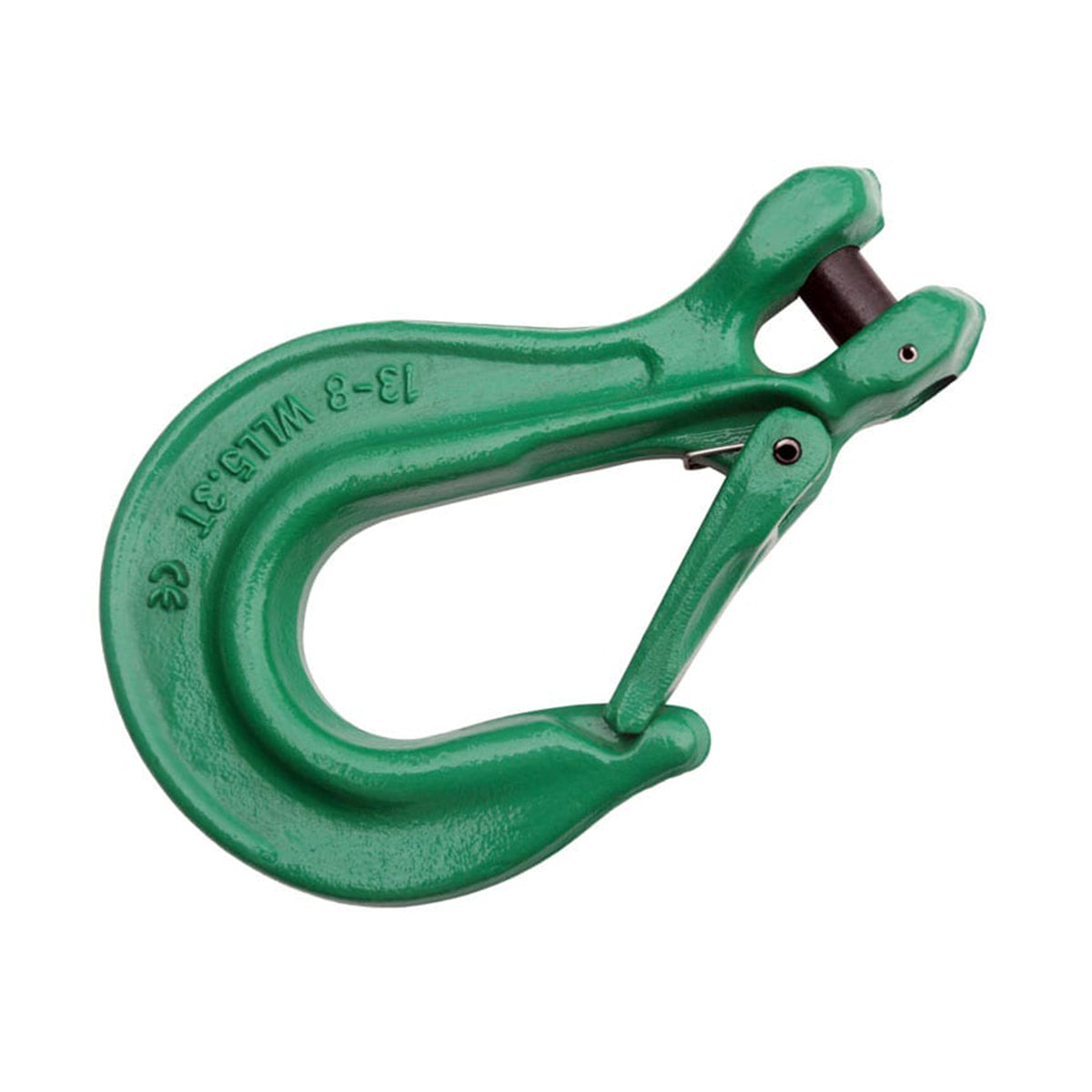

16mm Clevis Sling Hook – Grade 80 Alloy Steel
A Grade 80 forged alloy steel clevis sling hook with safety latch, designed for direct attachment to 16mm lifting chain. WLL 8,000 kg, proof load tested to 2.5× WLL.
- Working load limit
- 8,000 kg
- Min. breaking load
- 32,000 kg
- Grade
- Grade 80
- Material
- Forged alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The Ableforged 16mm Clevis Sling Hook (Model HCS 016) is a general-purpose Grade 80 forged alloy steel hook designed for direct attachment to 16mm alloy lifting chain, no additional connector required. The clevis opening is sized to accept the correct chain gauge only, preventing misuse, while the built-in safety latch with stainless steel spring keeps loads securely seated during lifting operations.
Each hook is embossed with the brand, WLL, batch number and size for full traceability, and is 100% proof load tested to 2.5 times its Working Load Limit. The ultimate load capacity is 4 times the WLL, and the hook is fatigue rated at 1.5 times the WLL at 20,000 cycles. The painted finish provides additional corrosion resistance.
- Made from forged alloy steel, quenched and tempered to Grade 80
- For use with Grade 80 alloy chain in lifting and slinging applications
- Safety latch with stainless steel spring prevents accidental disengagement and corrosion
- Embossed with brand, WLL, batch number and size for full traceability
- 100% proof load tested to 2.5× WLL; ultimate load is 4× capacity
Key features
- 01Grade 80 alloy steel
- 02WLL 8,000 kg
- 03Direct chain fit
- 04Built-in safety latch
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
