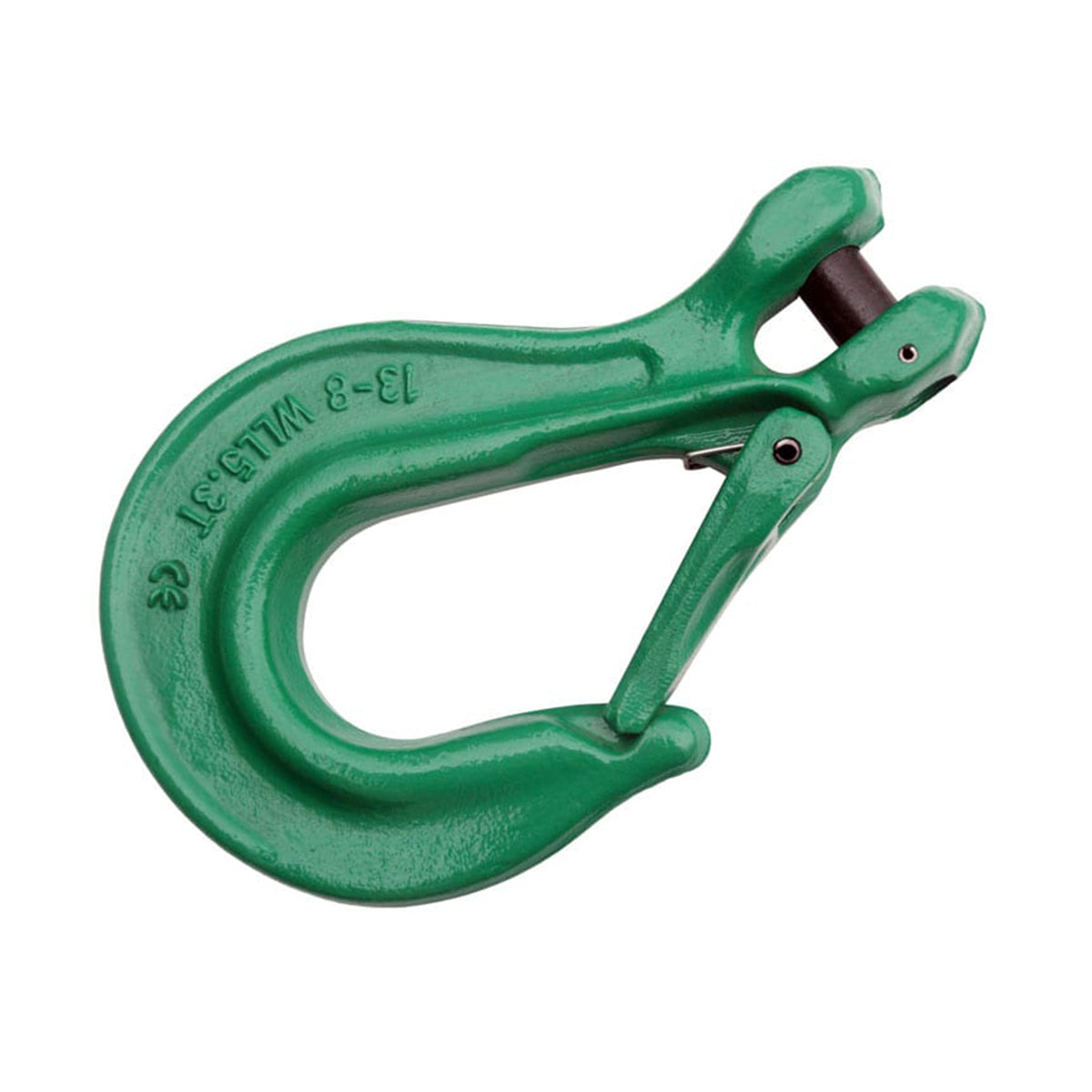

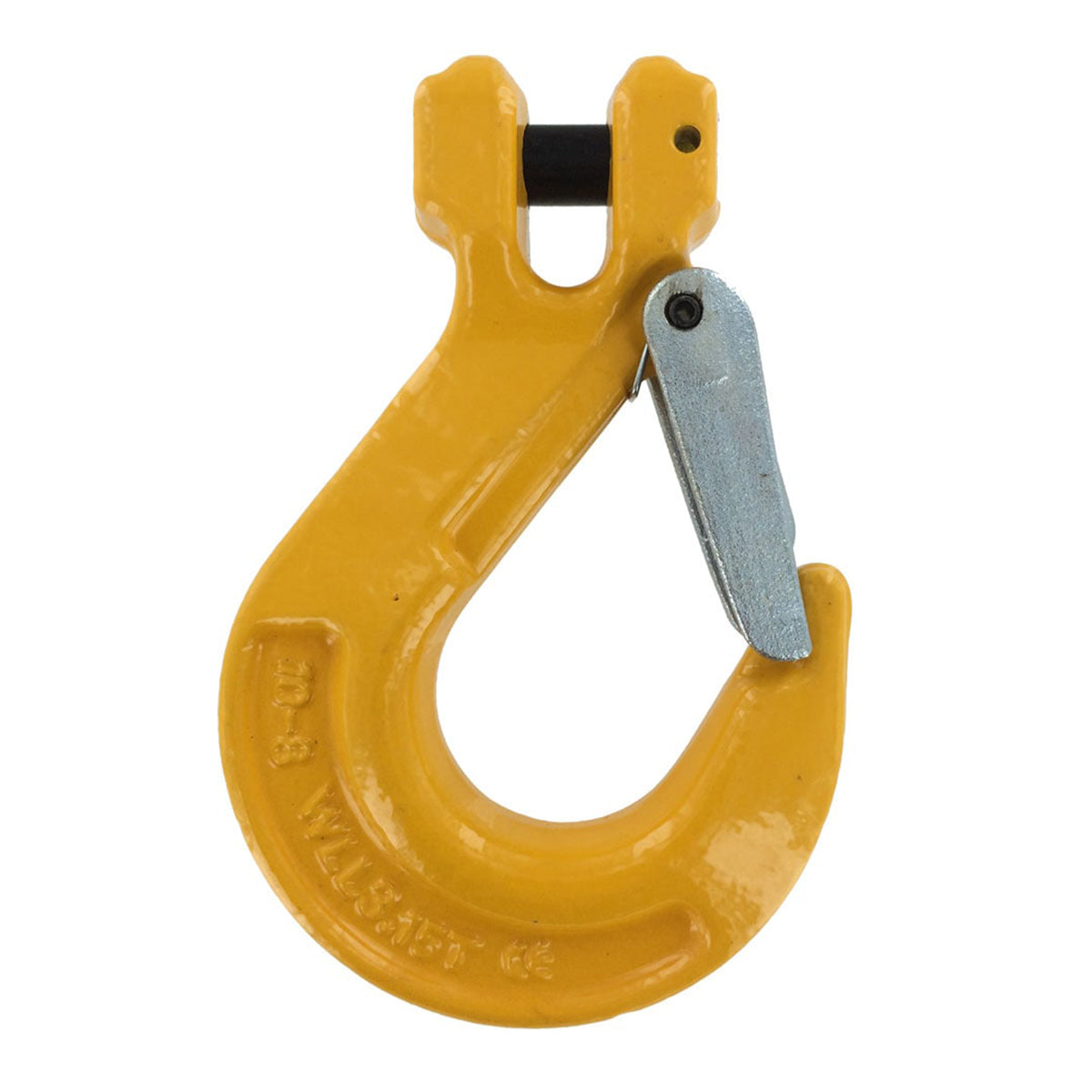

10mm Clevis Sling Hook
Grade 80 alloy steel clevis sling hook for 10mm chain, fitted with a safety latch and stainless steel spring. Proof load tested to 2.5× WLL with a working load limit of 3,150 kg.
- Working load limit
- 3,150 kg
- Min. breaking load
- 12,600 kg
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The Ableforged 10mm Grade 80 Alloy Clevis Sling Hook (Model HCS 010) is a general-purpose, heavy-duty lifting hook designed to connect directly onto 10mm alloy chain without the need for additional connectors. The clevis opening is sized to accept only the correct chain diameter, reducing the risk of mis-rigging. A built-in safety latch, with a stainless steel spring to resist corrosion, keeps the load secure throughout the lift.
Manufactured from quenched and tempered alloy steel and embossed with brand, WLL, batch number and size for full traceability, this hook meets Grade 80 requirements and is suitable for use with Grade 80 alloy chain and wire rope in a wide range of slinging applications.
- Material: forged alloy steel, quenched and tempered (Grade 80)
- Working Load Limit (WLL): 3,150 kg (4:1 safety factor)
- Proof load tested to 2.5× WLL; ultimate load 4× capacity
- Fatigue rated to 1.5× WLL at 20,000 cycles
- Built-in safety latch with stainless steel spring
- Clevis fitting, attaches directly to chain, no separate connector required
- Embossed with brand, WLL, batch number and size for traceability
- Anti-fouling profile with large throat opening
Key features
- 01Direct chain fit
- 02Safe & secure
- 03Grade 80 alloy steel
- 04Proof load tested
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
