1000kg Universal Beam Clamp
A heavy-duty steel beam clamp rated at 1 tonne (1,000 kg), designed to distribute load away from the I-beam flange edge, ideal for lifting, positioning and anchoring RSJs and structural steelwork.
- Working load limit
- 1,000 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

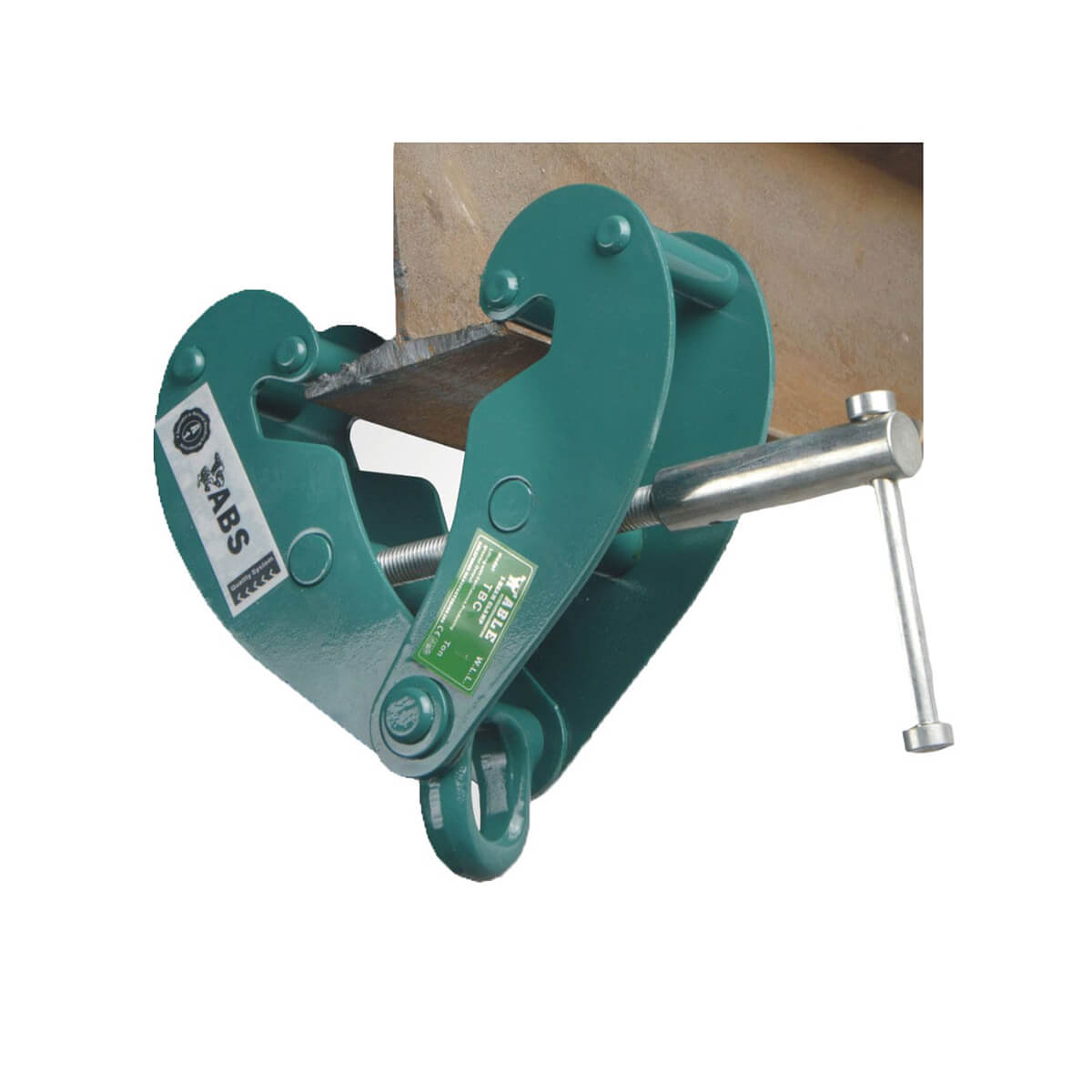

Able Universal Beam Clamp, 1 Tonne (BC1)
The Able BC1 Universal Beam Clamp is a professional-grade lifting accessory purpose-built for attaching a hoist or block to an I-beam or RSJ. Its specially shaped clamp jaw distributes the load away from the flange edge, significantly reducing flange stress and protecting the structural integrity of the beam. Quick to fit and simple to adjust via a threaded handle, the clamp is suitable for a wide range of temporary or semi-permanent hoist anchor-point applications in construction, fabrication and industrial maintenance.
- Rated capacity: 1 tonne (1,000 kg) working load limit
- Flange width range: 75-230 mm, fits a wide variety of I-beams and RSJs
- Threaded-handle adjustment for fast, tool-free installation
- Integrated suspension bar provides lower headroom clearance
- Conforms to ANSI/ASME safety standard
- Can be supplied without lifting ring (optional); special flattened, reinforced jaw design also available
Finished in a durable green powder coat. Net weight: 4.2 kg. Manufactured by Ableforge Manufacturing Inc (brand: Able).
Key features
- 011 tonne rated capacity
- 02Reduces flange stress
- 03Quick tool-free adjustment
- 04Low-headroom suspension
- 05Ansi/asme compliant
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
