1000kg Lever Block 1.5m Drop
The Able LB-II 1000kg lever block hoist delivers reliable ratchet-and-pawl lifting with a 1.5m standard lift. Grade 80 chain, forged hooks, and a double pawl brake make it ideal for confined-space lifting.
- Working load limit
- 1,000 kg
- Chain size
- 6 mm
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

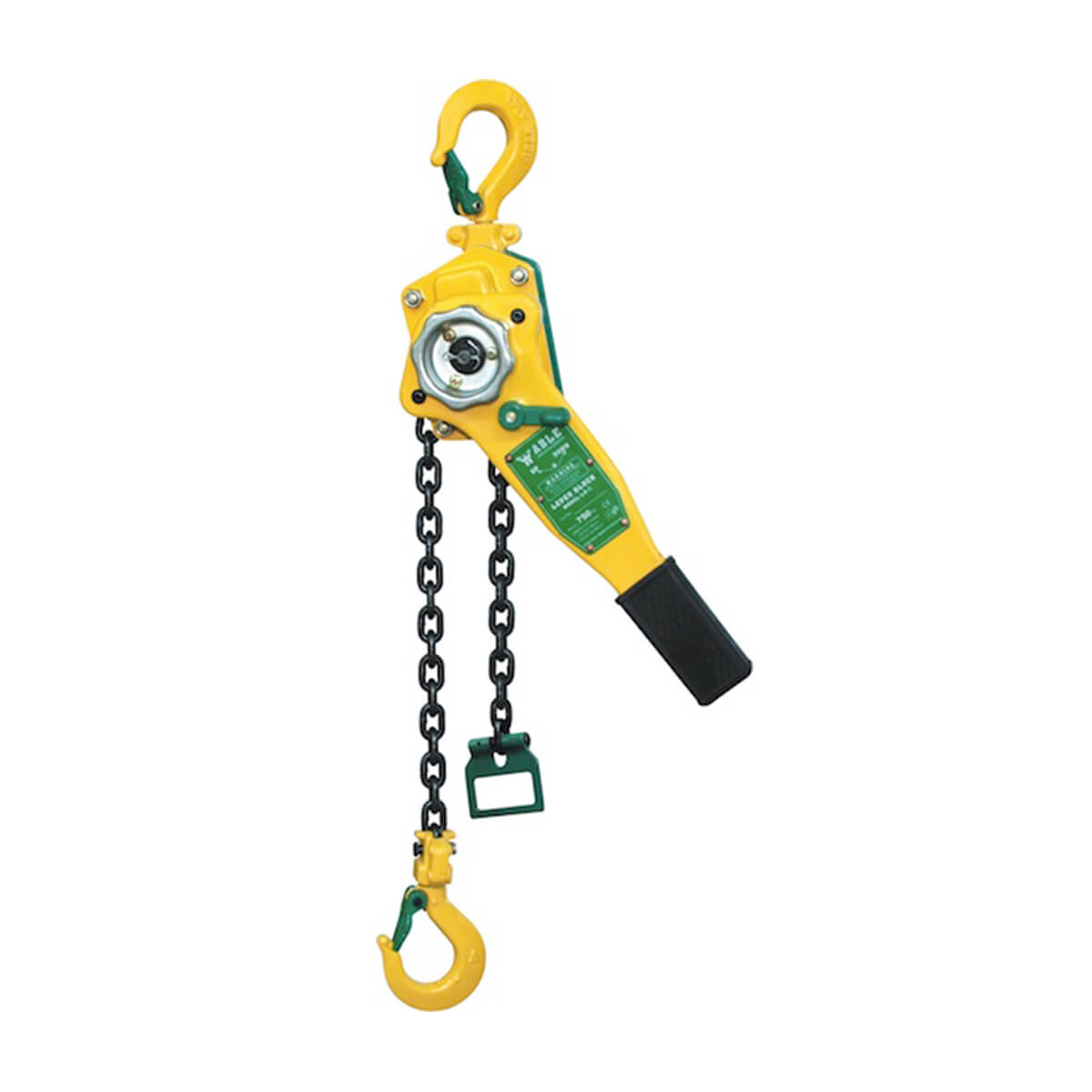

Able LB-II Series Lever Block, 1000 kg / 1.5 m Lift
The Able LB-II 1000 kg lever block is a compact, hand-operated chain hoist designed for lifting, lowering, and load tensioning in workshops, on construction sites, and in confined spaces where overhead cranes cannot reach. Operated with a simple ratchet lever, it requires no power source and delivers precise load control in any orientation.
Built to EN 13157:2010, every unit is individually proof-load tested to 1.5× WLL and carries its own serial number for full traceability. The minimum breaking load is rated at 400% of WLL, giving a substantial safety margin for demanding applications.

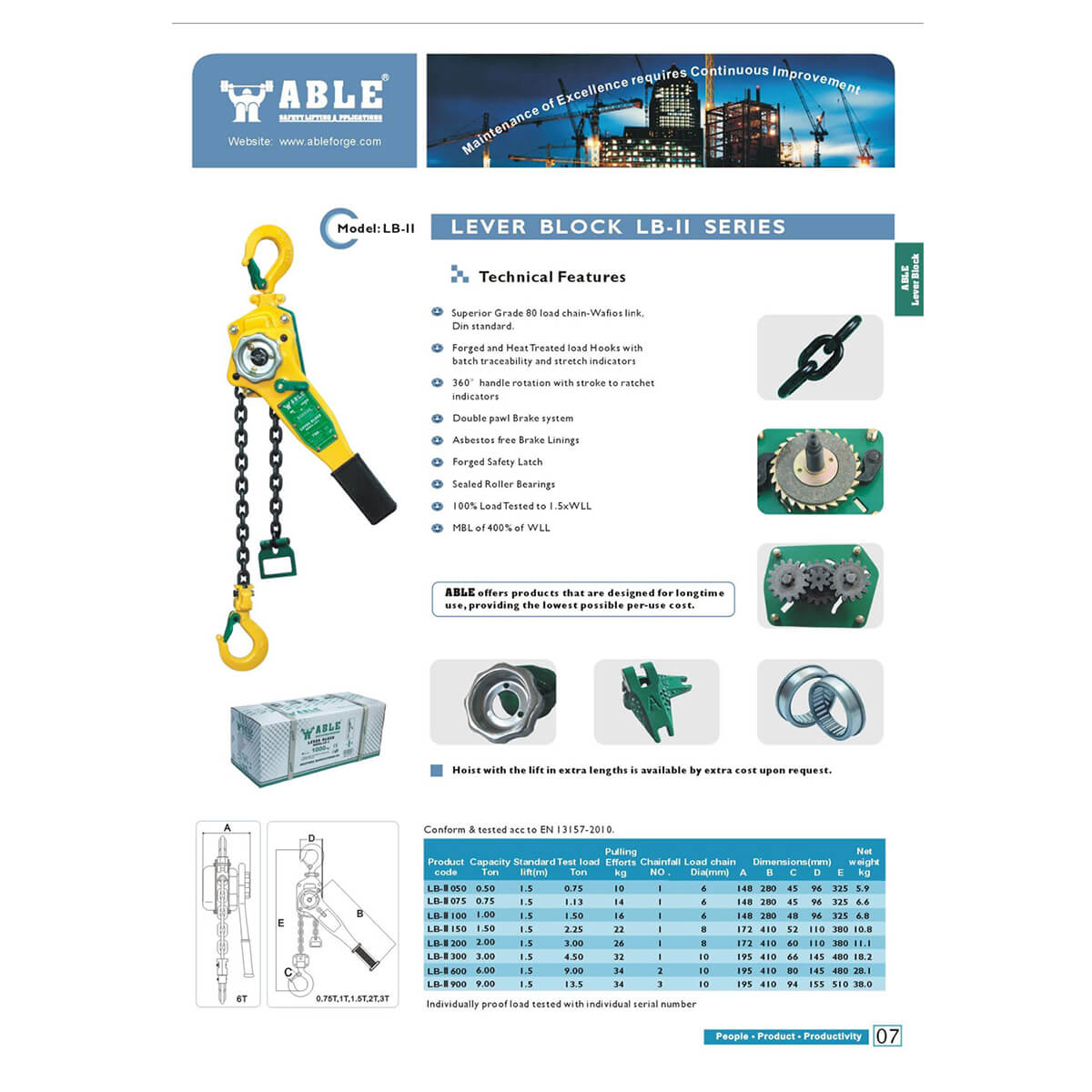

Key Features
- Superior Grade 80 load chain, Wafios link, DIN standard for maximum strength and consistency.
- Forged and heat-treated load hooks, batch traceability and integrated stretch indicators flag overload damage at a glance.
- 360° handle rotation with stroke-to-ratchet indicators, smooth, fatigue-reducing operation from any angle.
- Double pawl brake system with asbestos-free brake linings, holds the load securely and meets modern health and safety requirements.
- Forged safety latch hooks, top and bottom hooks both feature positive safety latches to prevent accidental release.
- Sealed roller bearings, reduce maintenance intervals and extend service life.
- 100% load tested to 1.5× WLL; MBL 400% of WLL, every hoist leaves the factory with an individual proof-load certificate.
The hoist is available with extended lift lengths upon request at additional cost.
Key features
- 011000 kg working load limit
- 02Grade 80 chain & forged hooks
- 03Double pawl brake with asbestos-free linings
- 04360° handle rotation
- 05EN 13157:2010 compliant
Specification
