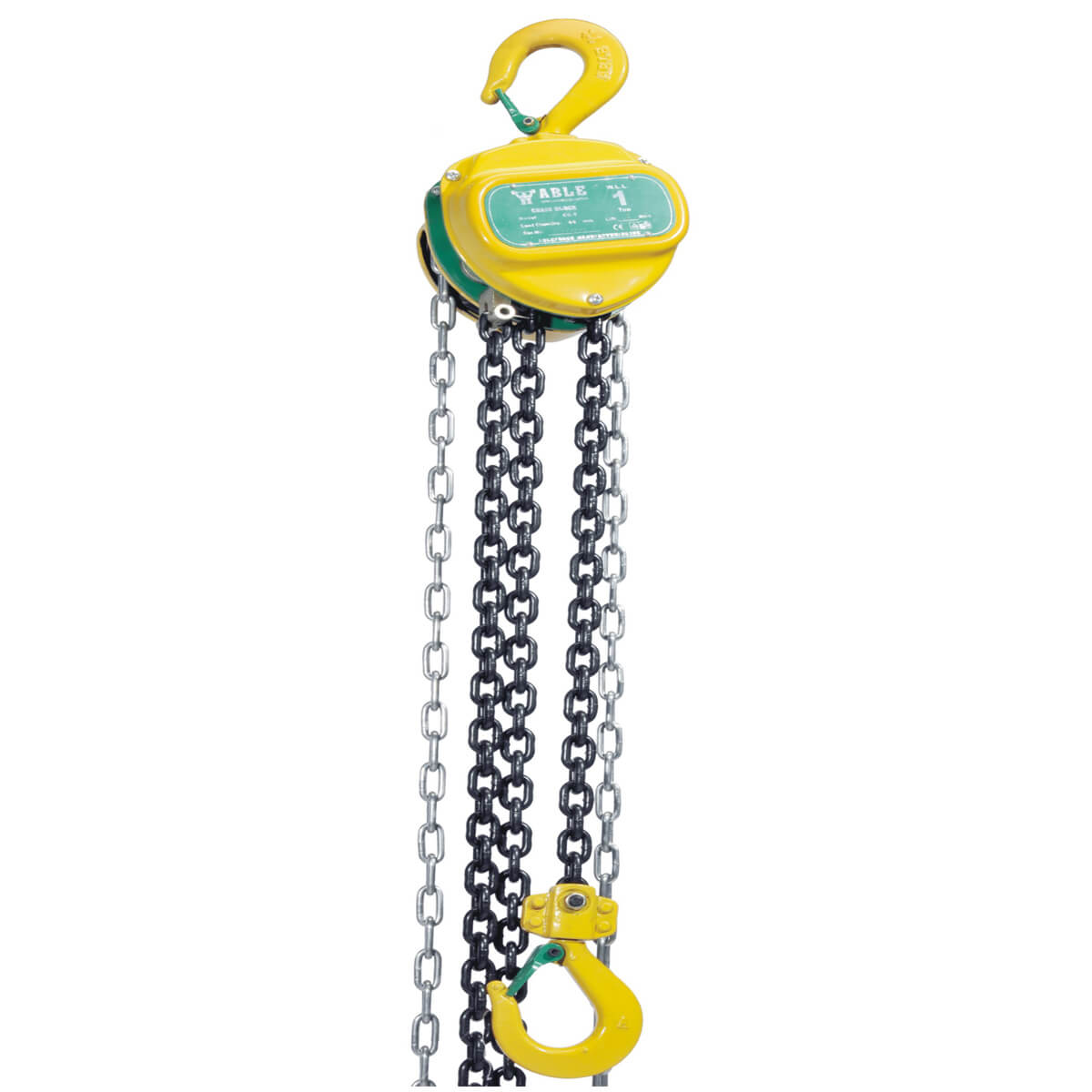

1000kg Chain Block 3m Drop
A 1-tonne manual chain block hoist by ABLE, with a 3m lift, Grade 80 load chain, double-pawl fail-safe brake, and forged safety-latch hooks, ideal for workshops, factories and overhead lifting.
- Working load limit
- 1,000 kg
- Chain size
- 6 mm
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
ABLE 1000kg Manual Chain Block Hoist, 3m Drop
The ABLE 1-tonne chain block is a robust, manually operated hoist designed for safe and efficient lifting, lowering and positioning of heavy loads in workshops, factories, power plants and construction environments. A hand-operated pull chain drives precision internal gears, meaning minimal effort is needed to raise or move loads of up to 1,000 kg.
Key Features
- Superior Grade 80 Load Chain, minimum breaking load is 400% of WLL, with elongation greater than 10% for early warning of overload.
- Double-Pawl Fail-Safe Brake, even if one pawl becomes unserviceable, the remaining pawl keeps the brake system fully secure, preventing accidental load drop.
- Forged & Heat-Treated Hooks, both top and bottom hooks are individually forged, heat treated and fitted with safety latches and stretch indicators for batch traceability.
- Individually Proof Load Tested, each unit is tested to 1.5× WLL and carries its own unique serial number for full audit compliance.
- Enclosed Housing, sealed body protects internal components, allowing outdoor use without lubrication of the load brake.
Technical Specifications
- Capacity: 1.0 tonne (1,000 kg)
- Standard lift: 3.0 m
- Test load: 1.5 tonne
- Hand chain pulling effort: 31 kg
- Number of chain falls: 1
- Load chain diameter: 6 mm
Whether you are installing machinery, carrying out repairs or working in confined overhead spaces, the ABLE 1000kg chain block delivers dependable performance with built-in safety at every stage of the lift.
Key features
- 01Safe 1-tonne lifting capacity
- 02Double-pawl fail-safe brake
- 03Grade 80 load chain
- 043 metre standard drop
- 05Forged safety-latch hooks
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use chain blocks
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
