10,000kg Universal Beam Clamp
A heavy-duty universal beam clamp rated at 10,000 kg (10 ton), designed to attach securely to I-beam flanges and provide a safe hoist anchor point for lifting, positioning and handling steel beams.
- Working load limit
- 10,000 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

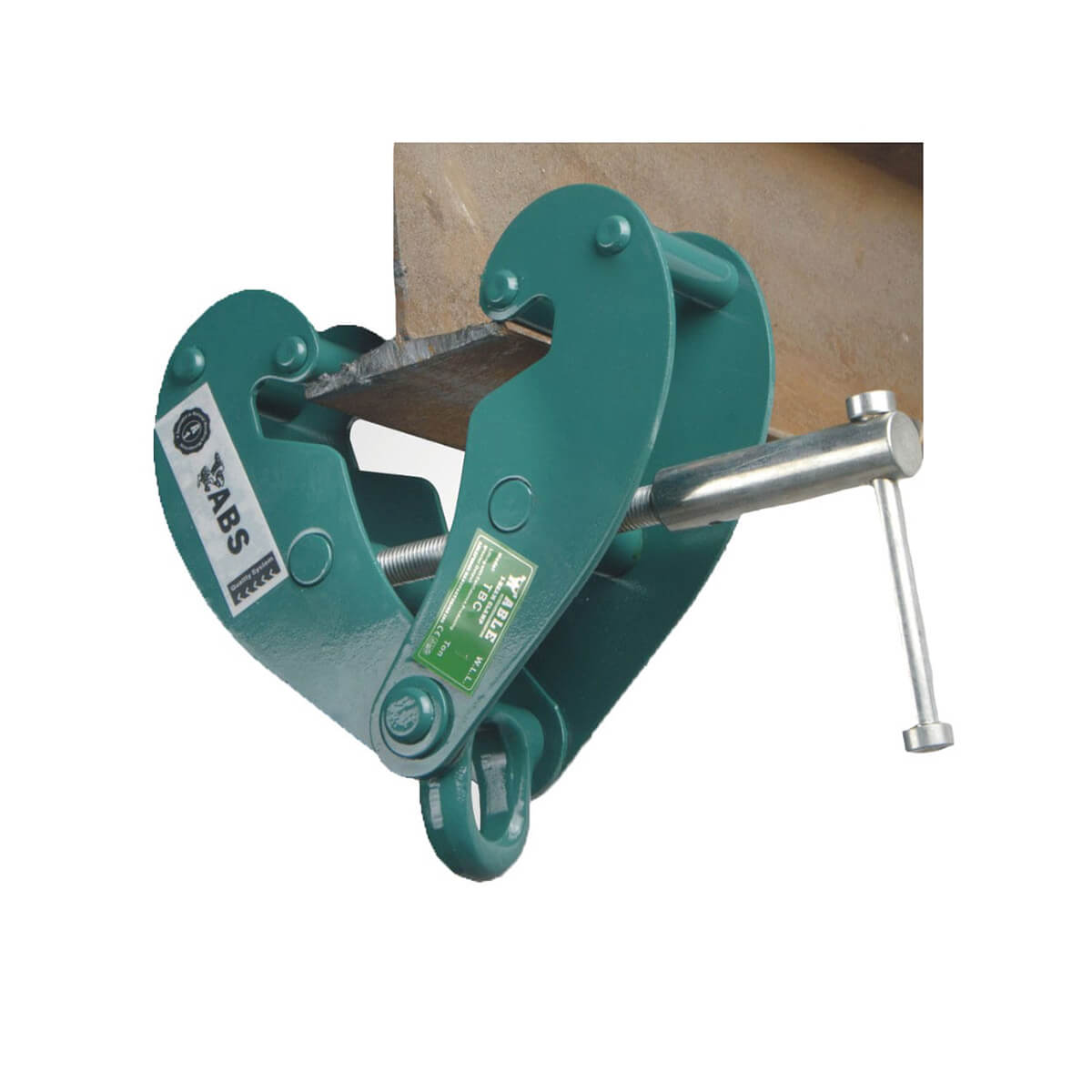

Able Universal Beam Clamp, 10,000 kg (10 Ton)
The Able BC10 Universal Beam Clamp is a professional-grade lifting clamp engineered to attach to the flange of an I-beam or RSJ, creating a reliable temporary or semi-permanent hoist anchor point. Its specially shaped clamp jaw distributes the load away from the flange edge, significantly reducing flange stress during lifting, holding and positioning operations.
Adjustment is fast and straightforward via the threaded handle, and the integrated suspension bar keeps headroom to a minimum, ideal for tight working environments. The clamp accommodates a wide range of flange widths from 90 mm to 320 mm, making it genuinely universal across common structural steel sections.
- Rated working load limit of 10,000 kg (10 ton)
- Accepts flange widths from 90 mm to 320 mm
- Threaded handle for quick, tool-free adjustment
- Clamp jaw design distributes load away from the I-beam flange edge to reduce stress
- Integrated suspension bar provides lower headroom operation
- Conforms to ANSI/ASME safety standard
- ABS approved
- Available without lifting ring as an optional variant; special flattened, reinforced jaw design also available
Suitable for construction, fabrication, steel erection and general industrial lifting wherever a beam anchor point is required.
Key features
- 01Heavy-duty 10-ton capacity
- 02Reduces flange stress
- 03Wide flange compatibility
- 04Quick threaded-handle adjustment
- 05Low-headroom suspension bar

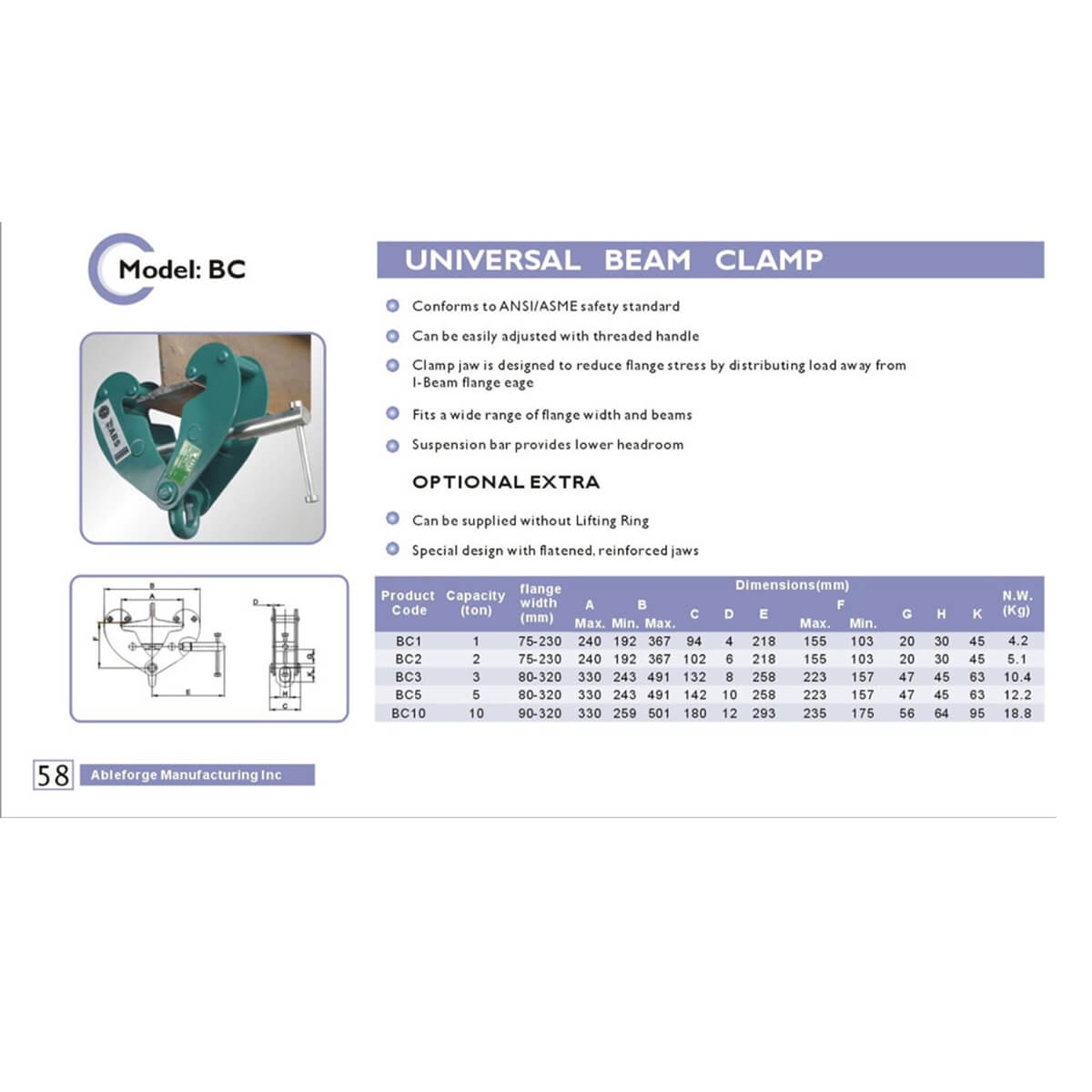

Specification
