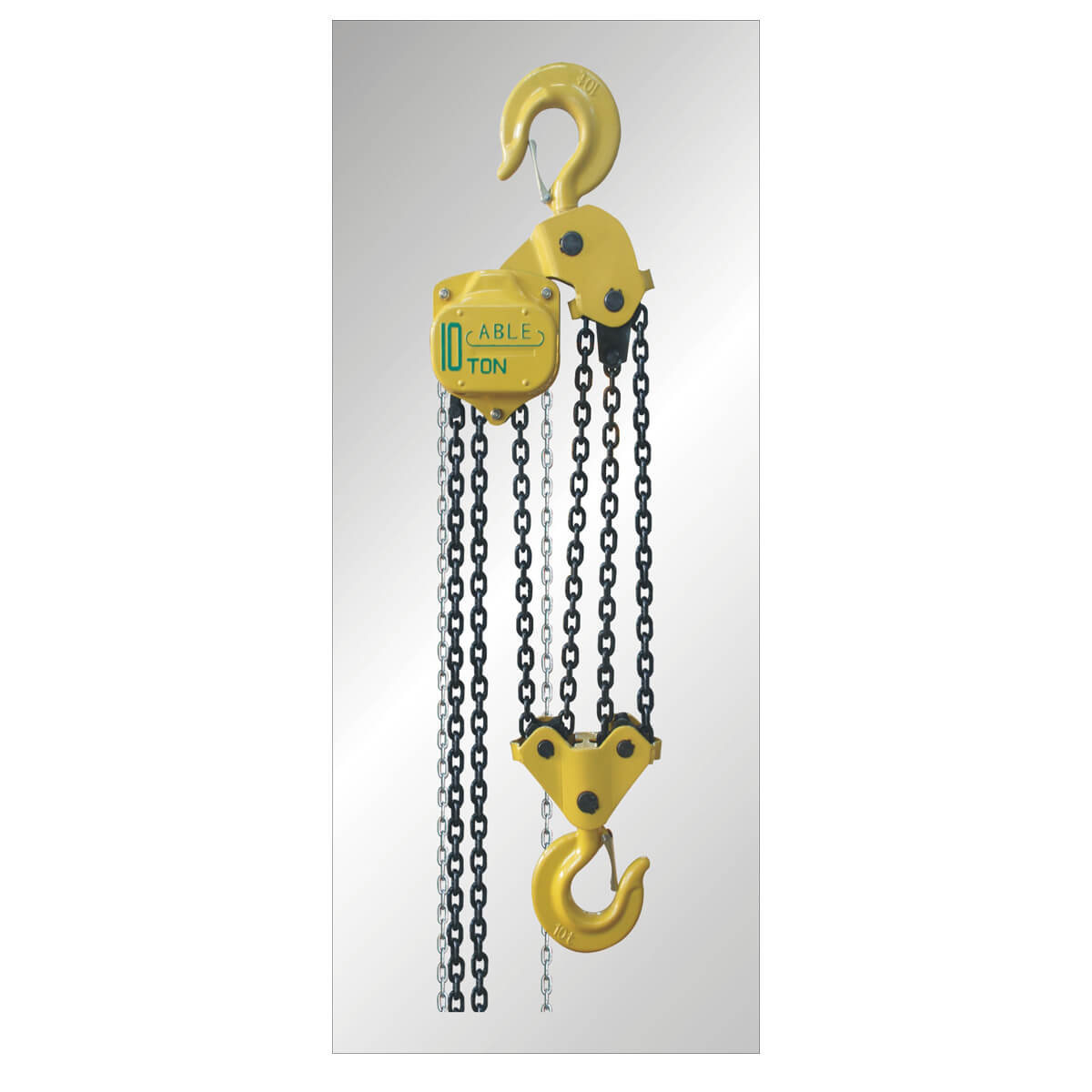

10,000kg Chain Block 3m Drop
A heavy-duty 10-tonne manual chain block hoist with 3m lift height, Grade 80 load chain, double pawl fail-safe brake, and forged safety-latched hooks, ideal for industrial lifting, installation, and overhead work.
- Working load limit
- 10,000 kg
- Chain size
- 10 mm
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Able 10,000kg Manual Chain Block, 3m Drop
This 10-tonne capacity chain block from Able delivers reliable, controlled manual lifting for demanding industrial environments. Operated entirely by hand, the block's internal gear system means a relatively low pulling effort of just 41 kg is needed to raise loads of up to 10,000 kg. The four-fall load chain arrangement provides mechanical advantage while keeping the unit manageable in confined or overhead working situations.
Built for safety and longevity, every unit is individually proof-load tested to 1.5× the working load limit and assigned its own serial number for full batch traceability. The enclosed housing protects the mechanism for outdoor use, and the load brake requires no lubrication, keeping maintenance requirements low.
Key Features
- Superior Grade 80 load chain with a minimum breaking load of 400% of WLL and elongation greater than 10%
- Forged and heat-treated load hooks with integrated stretch indicators for at-a-glance wear monitoring
- Double pawl, fail-safe brake system, if one pawl becomes unserviceable, the remaining pawl keeps the brake secure
- Individually proof-load tested to 1.5× WLL; each unit carries its own serial number for traceability
- Enclosed housing suitable for outdoor use; load brake requires no lubrication
- Forged safety latches on both top and bottom hooks
Please note: This is not a stock item. Please call to confirm availability, delivery is typically approximately 4 weeks.
Key features
- 0110,000 kg (10 tonne) working load limit
- 02Double pawl fail-safe brake system keeps the load secure even if one pawl becomes unserviceable
- 03Grade 80 load chain
- 04Low 41 kg pulling effort required thanks to a 4-fall chain configuration
- 05Enclosed housing
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use chain blocks
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
