9.5T 1-1/8" Blue Pin Dee Shackle | ABLE
ABLE forged steel Dee shackle with a 9.5-tonne WLL and CE-marked body. Quenched and tempered for maximum in-line strength in crane rigging, marine, and heavy lifting applications.
- Working load limit
- 9,500 kg
- Material
- Forged quenched and tempered steel
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

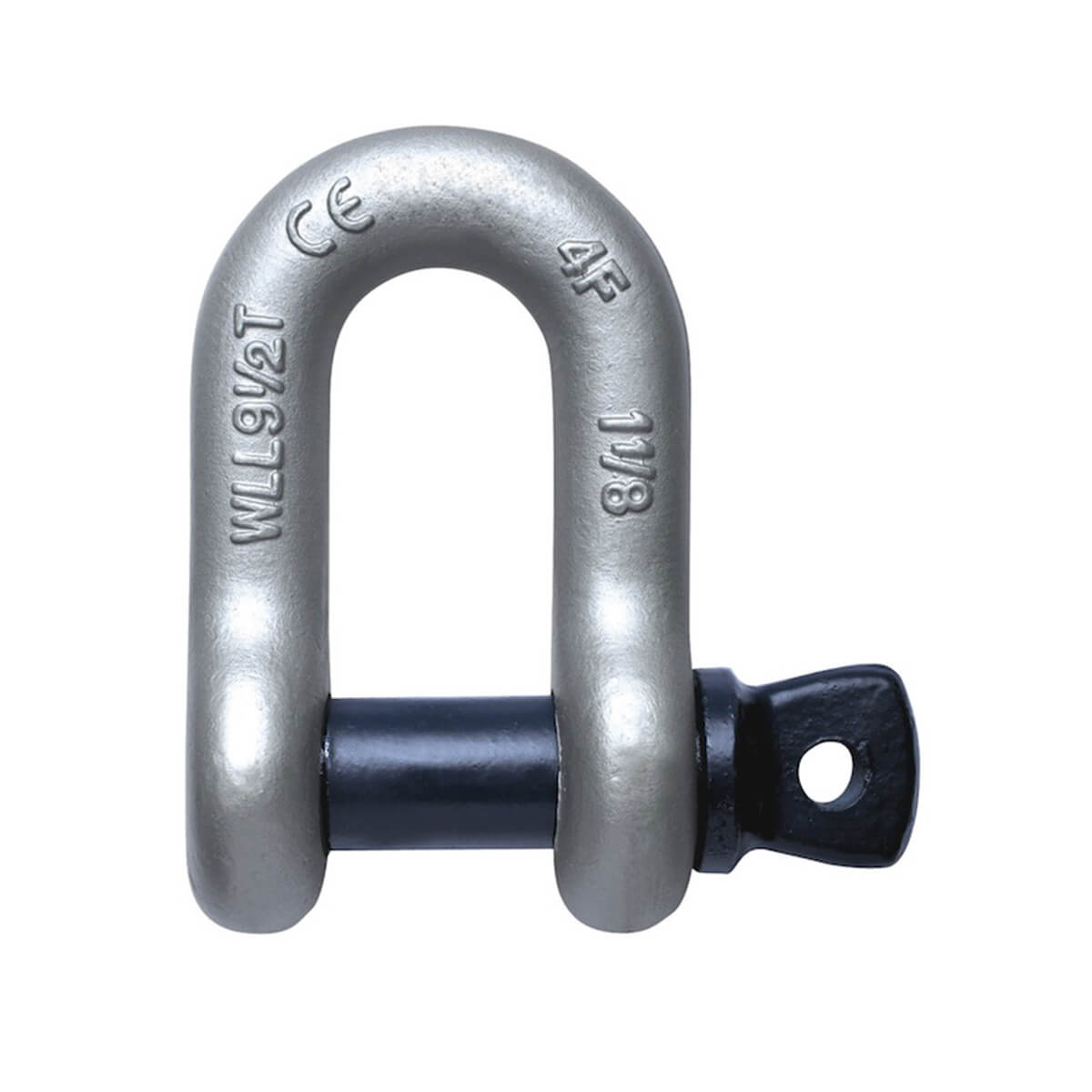

The ABLE SPD028 is a heavy-duty forged Dee shackle rated to a 9.5-tonne Working Load Limit (9,500 kg), permanently embossed on the body alongside the CE mark for instant, on-site verification. Quenched and tempered steel construction delivers the strength and toughness demanded by crane rigging, marine, construction, and general industrial load-handling.
The D-shape (chain shackle) profile concentrates load in-line, making it the preferred choice wherever high straight-pull forces are involved. The threaded screw pin provides a secure, positive closure that is quick to fit and remove without tools, while the drilled pin end allows mousing or wire-locking where regulations require.
- Working Load Limit: 9,500 kg (9.5 t), permanently embossed on body
- CE marked, clearly visible on the shackle bow
- Forged, quenched and tempered steel for maximum strength and durability

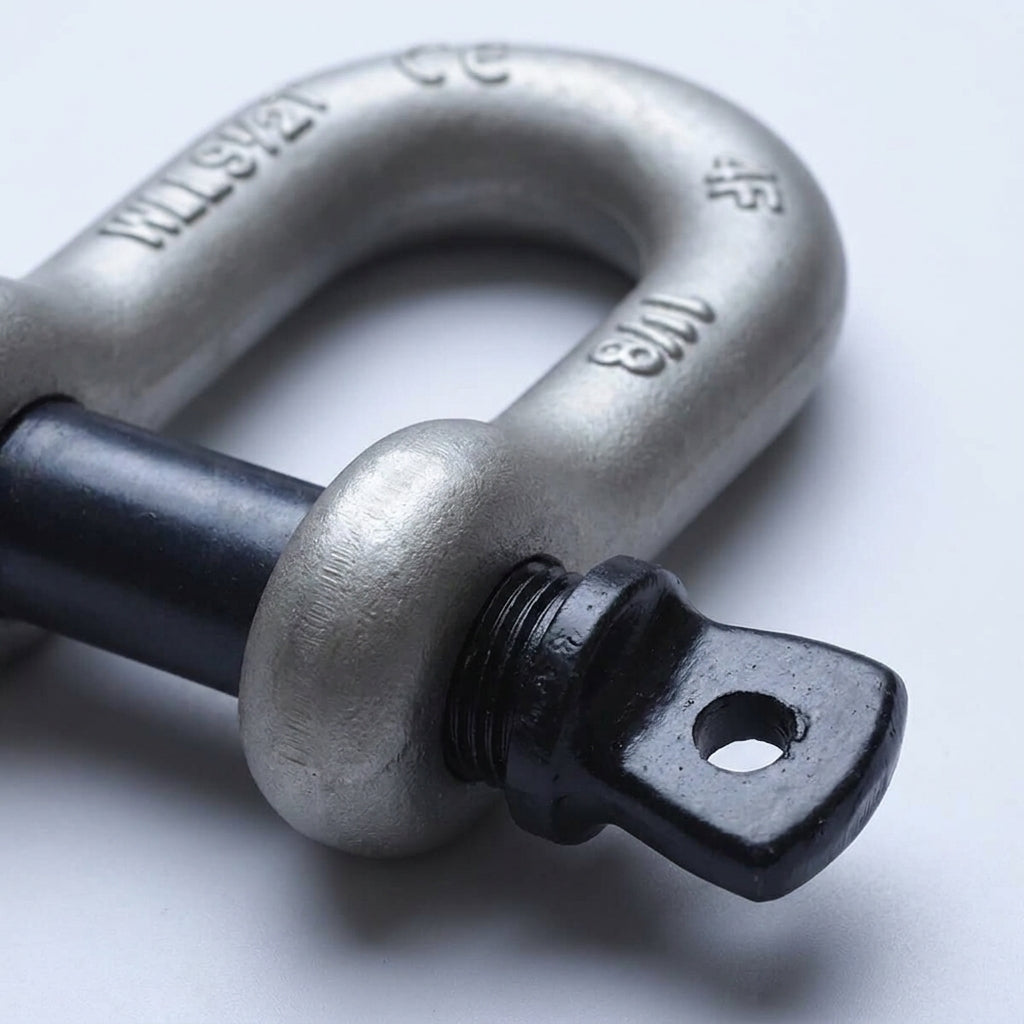

- Threaded screw pin with drilled end for mousing or wire-locking

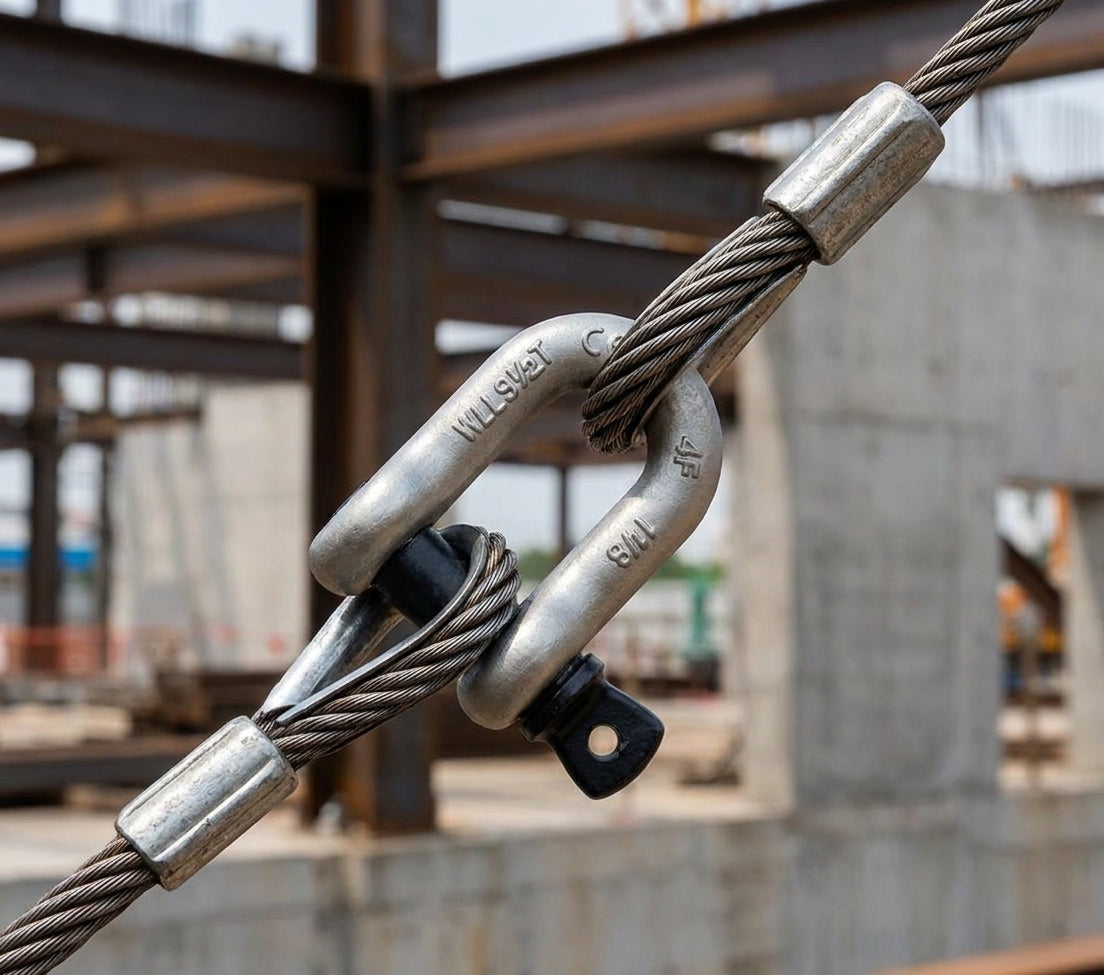

- Narrow Dee profile excels under high in-line loads across rigging, marine, and construction use
Key features
- 01Rated to 9,500 kg (95 T) WLL
- 02Forged quenched & tempered steel
- 03Dee (chain shackle) profile
- 04Threaded screw pin with drilled end
- 05Able manufactured
Specification
