6.5T Screw Pin Dee Shackle – 7/8" (ABLE)
Forged steel CE-marked dee shackle with a 9½T WLL stamped on the body, screw pin closure, and quenched-and-tempered construction, built for heavy-duty lifting, rigging, and lashing.
- Working load limit
- 6,500 kg
- Material
- Alloy steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

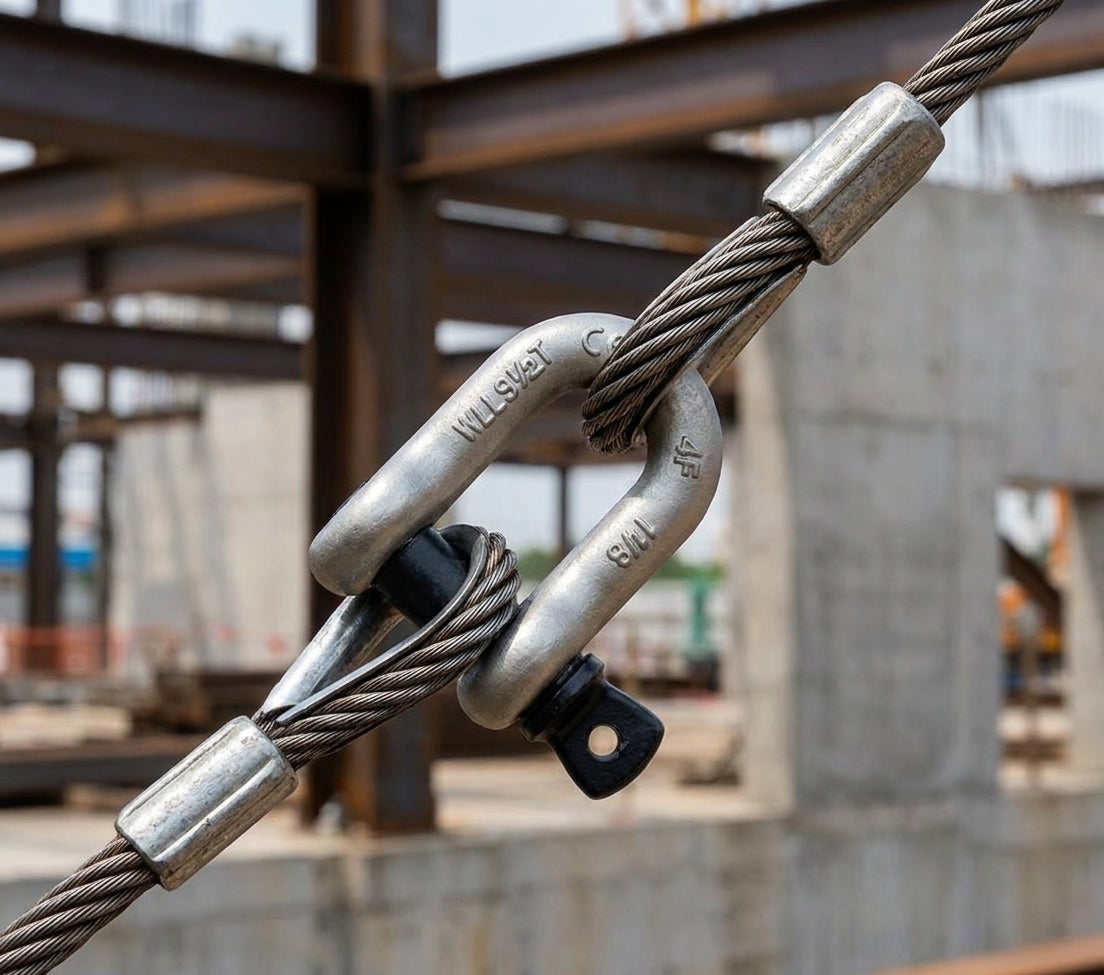

The ABLE Forged Screw Pin Dee Shackle (Model SPD) is a heavy-duty chain shackle manufactured from quenched-and-tempered alloy steel. The Working Load Limit is permanently stamped directly onto every shackle body, providing instant on-site identification and full traceability. CE marked, it is suited to industrial crane rigging, marine applications, construction lashing, and heavy haulage securing.
The classic dee (D) profile efficiently transfers in-line loads through the body, while the screwed pin closure provides a secure, tool-free connection that can be quickly removed when required. The shackle carries the CE mark and the WLL is permanently embossed, with minimum breaking strength equal to 6× the working load limit in accordance with the Ableforge specification.

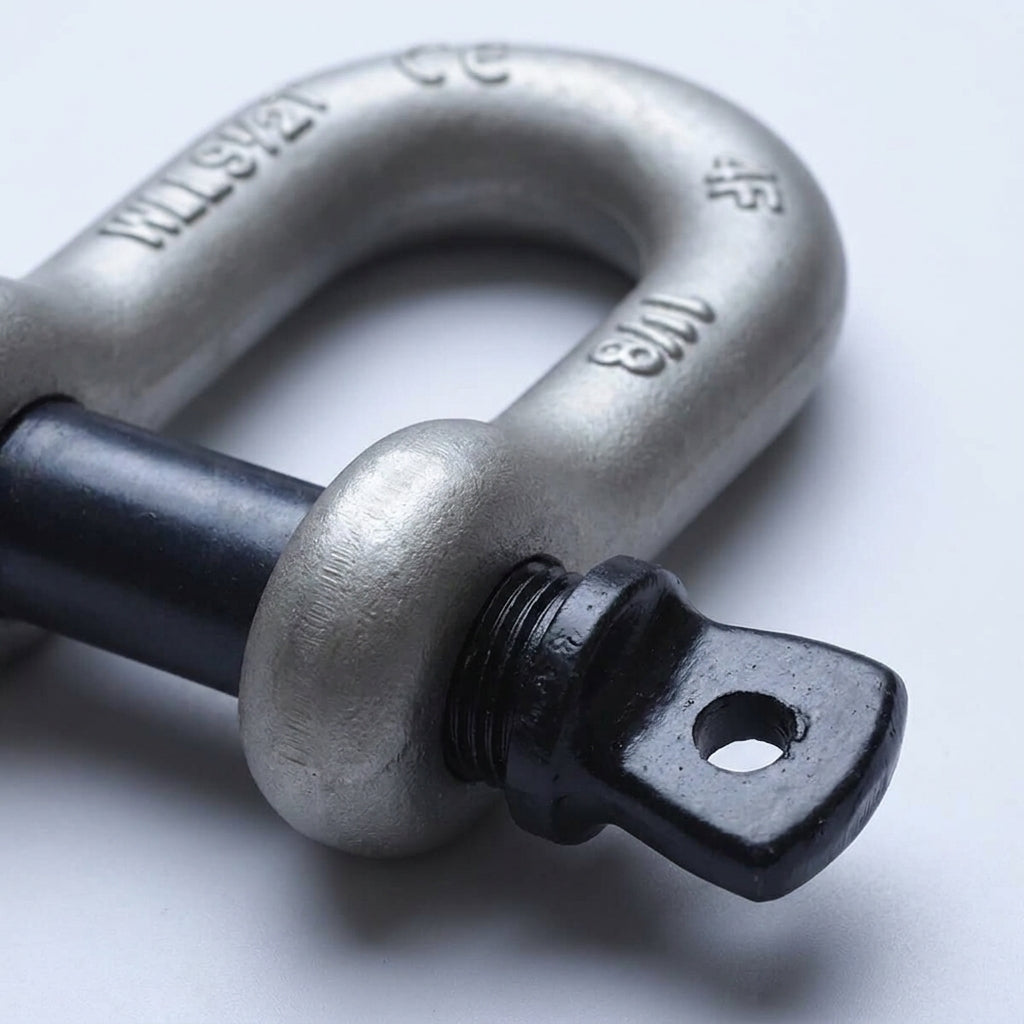

- Working Load Limit permanently stamped on the shackle body, WLL 9½T legible in product images
- CE marked forged dee shackle for lifting and rigging
- Quenched and tempered alloy steel construction for maximum strength and durability
- Screw pin closure, secure, tool-free fitting and removal
- Minimum breaking strength 6× WLL per Ableforge specification
Key features
- 01WLL 9½T permanently stamped on the body
- 02CE marked forged alloy steel dee shackle built
- 03Quenched and tempered construction
- 04Screw pin closure provides a fast
- 05Minimum breaking strength 6× WLL per Ableforge SPD specification
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
