800kg Steel Wire Rope Puller x 30m – Able Model RWP-08
Compact, lightweight hand-operated wire rope puller with 800 kg lifting capacity and 30 m steel wire rope included. Ideal for pulling and lifting vehicles, logs, machinery and other heavy loads at any working angle.
- Working load limit
- 800 kg
- Pulling capacity
- 1,200 kg
- Rope diameter
- 8 mm
- Material
- Aluminium alloy
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The Able Model RWP Wire Rope Puller is a compact, hand-operated pulling and lifting tool designed for use in construction, agriculture, recovery, and industrial environments. Simply move the handle left and right to feed the wire rope through the mechanism, one direction pulls the load, the other releases it. Because the rope passes straight through the body, no drum or storage reel is required, keeping the unit small and light.

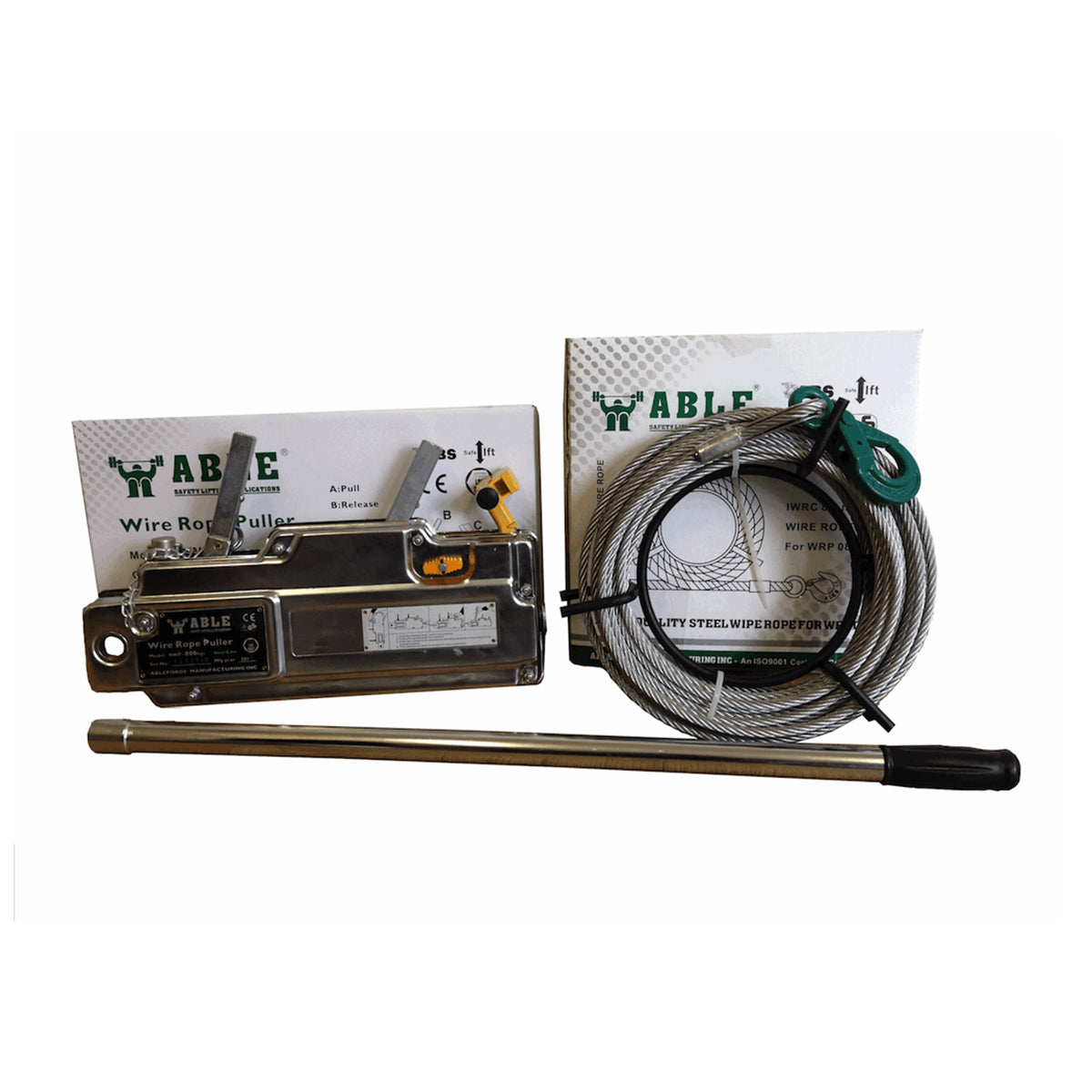

This listing covers the 800 kg lifting capacity variant (RWP-08-20), supplied complete with a 30-metre IWRC steel wire rope (8 mm diameter) and a safety hook. An extended lever handle is included for comfortable, efficient operation.
Key Features
- Compact and lightweight design, easy to carry and position on site
- Equipped with two built-in safety devices for safe user operation
- Wire rope is drawn out straight regardless of rope length, no tangling or drum required
- Transmission speed up to 3 metres per minute, depending on effort and pace
- Usable at any working angle, versatile for pulling, lifting, and tensioning tasks
- Fitted with a safety hook for secure load attachment
- Quick-release lever for fast rope-length adjustment

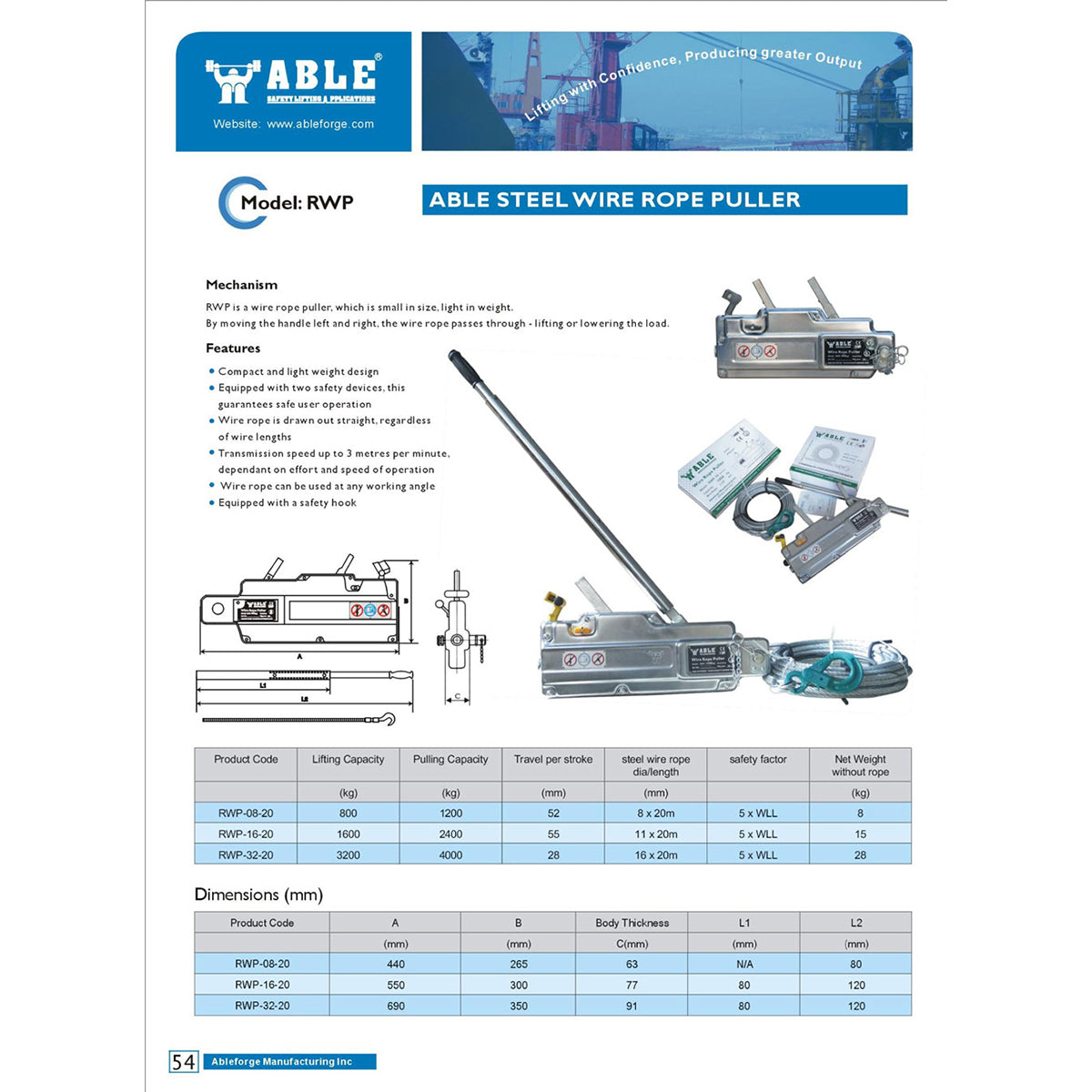

Technical Specification
- Lifting capacity: 800 kg
- Pulling capacity: 1,200 kg
- Safety factor: 5 × WLL
- Travel per stroke: 52 mm
- Steel wire rope diameter / length: 8 mm × 20 m (this listing supplied with 30 m rope)
- Net weight (without rope): 8 kg
- Body dimensions: A 440 mm × B 265 mm, body thickness 63 mm
Manufactured by Ableforge Manufacturing Inc, an ISO 9001 certified company.
Key features
- 01800 kg lifting capacity
- 0230 m steel wire rope included
- 03Compact & lightweight
- 04Any-angle operation
- 05Two built-in safety devices
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use a wire rope puller
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
