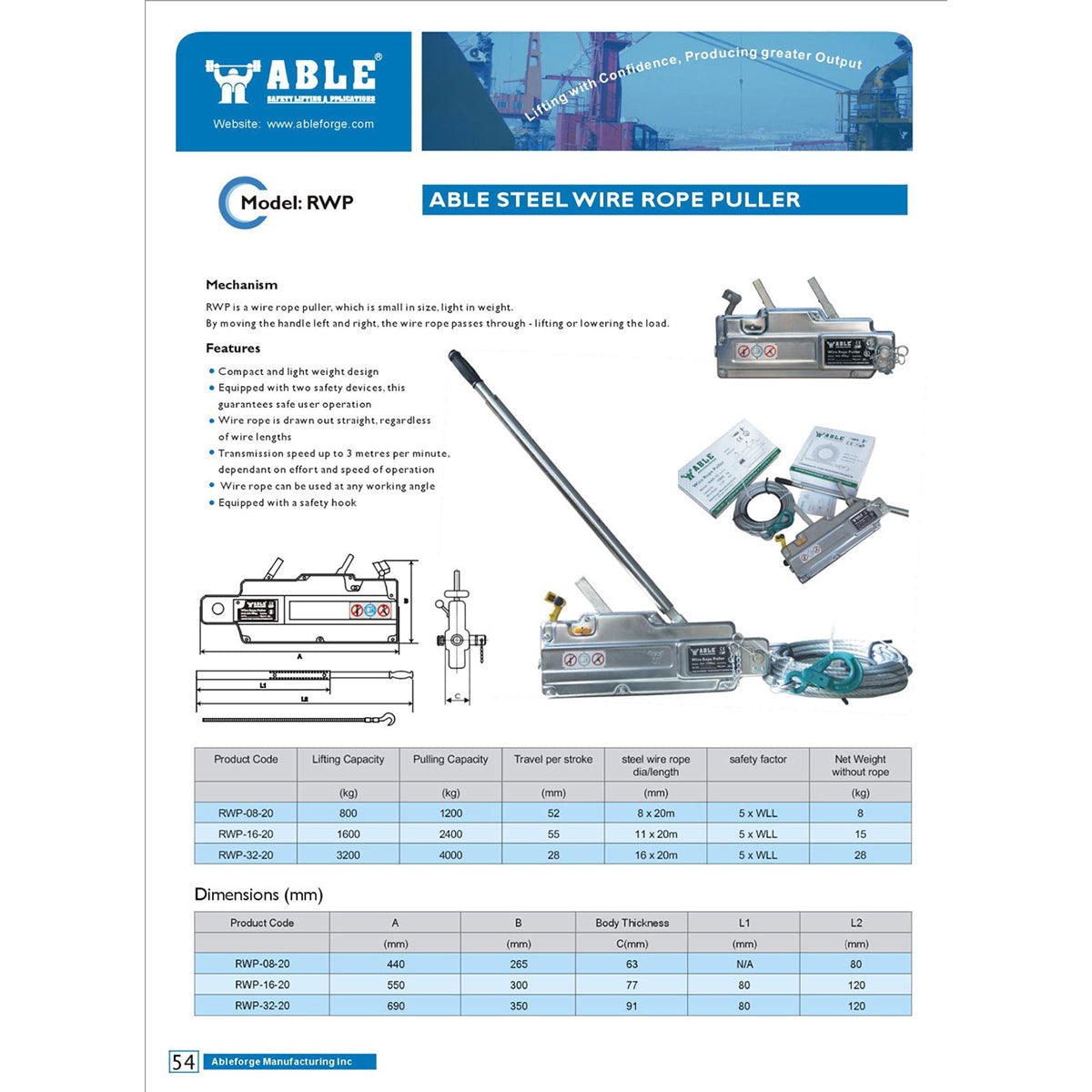

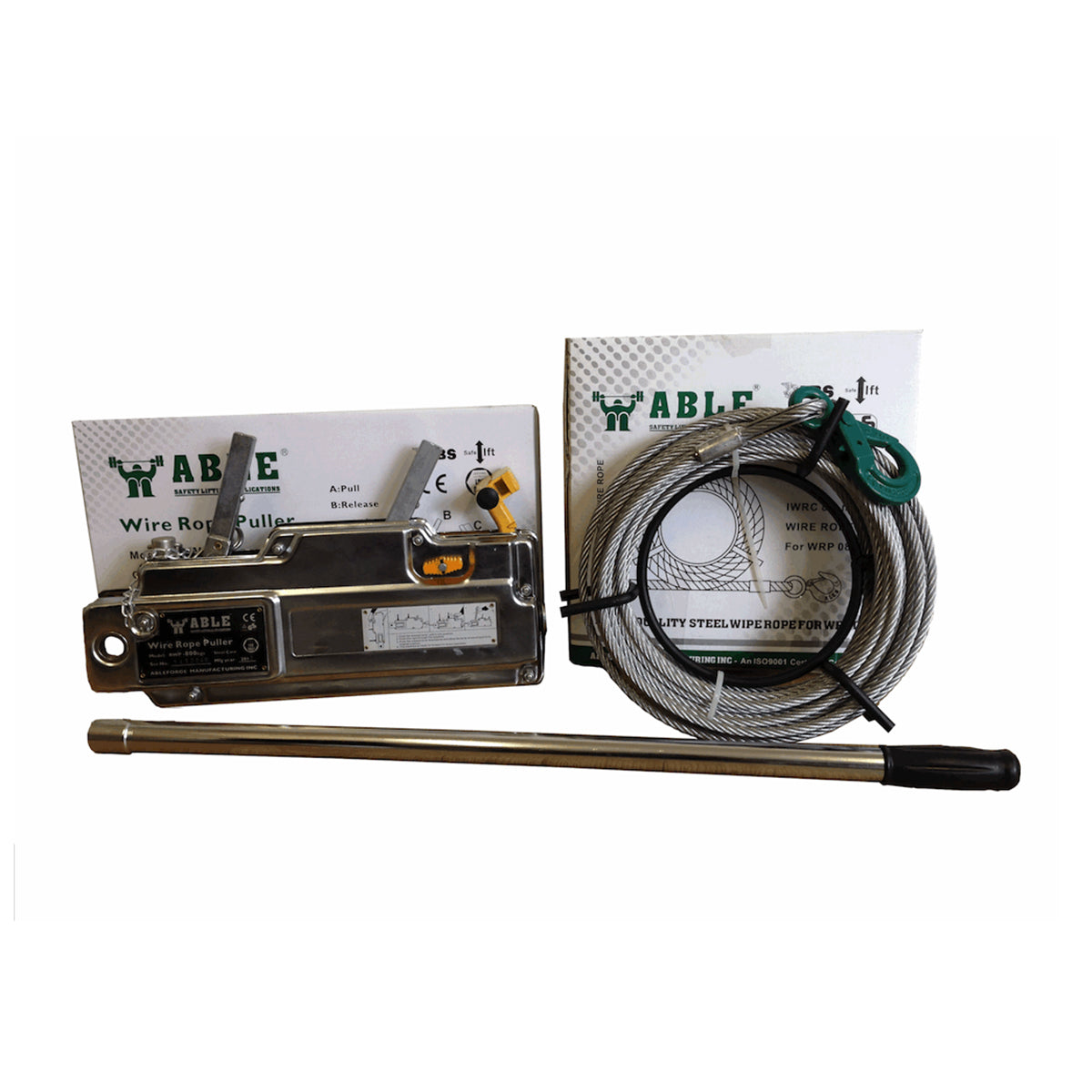

Able 3200kg Steel Wire Rope Puller with 60m Wire Rope – Model RWP-32-20

The Able RWP Steel Wire Rope Puller is a compact, lightweight hand-operated pulling and lifting tool designed for demanding on-site applications. By moving the handle left and right, the wire rope passes smoothly through the body, lifting or lowering loads with controlled, consistent effort. There is no drum required to store the rope, keeping the unit small and easy to transport.

This listing is for the RWP-32-20 variant, supplied with a 60 m length of 16 mm diameter IWRC steel wire rope and a safety hook. The puller has a lifting capacity of 3200 kg and a pulling capacity of 4000 kg, with a safety factor of 5 × WLL on the wire rope. Travel per stroke is 28 mm.

The wire rope is always drawn out straight regardless of rope length, and can be used at any working angle, making this puller ideal for pulling vehicles, machinery, logs, and other heavy loads in construction, forestry, marine, and industrial environments.

• Compact and lightweight design, easy to carry and deploy on site
• Equipped with two built-in safety devices for secure user operation
• Wire rope drawn out straight regardless of wire length
• Transmission speed up to 3 metres per minute, dependent on effort and speed of operation
• Wire rope can be used at any working angle
• Equipped with a safety hook
• Removable lever handle included

Manufactured by Ableforge Manufacturing Inc, an ISO 9001 certified company.
