8.5T Screw Pin Dee Shackle (1-1/8") | ABLE SPD028
Heavy-duty forged steel screw-pin dee shackle with a 9.5-tonne WLL, CE marked and permanently stamped for traceability. Ideal for rigging, lifting, and lashing in construction and marine applications.
- Working load limit
- 9,500 kg
- Material
- Forged steel
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

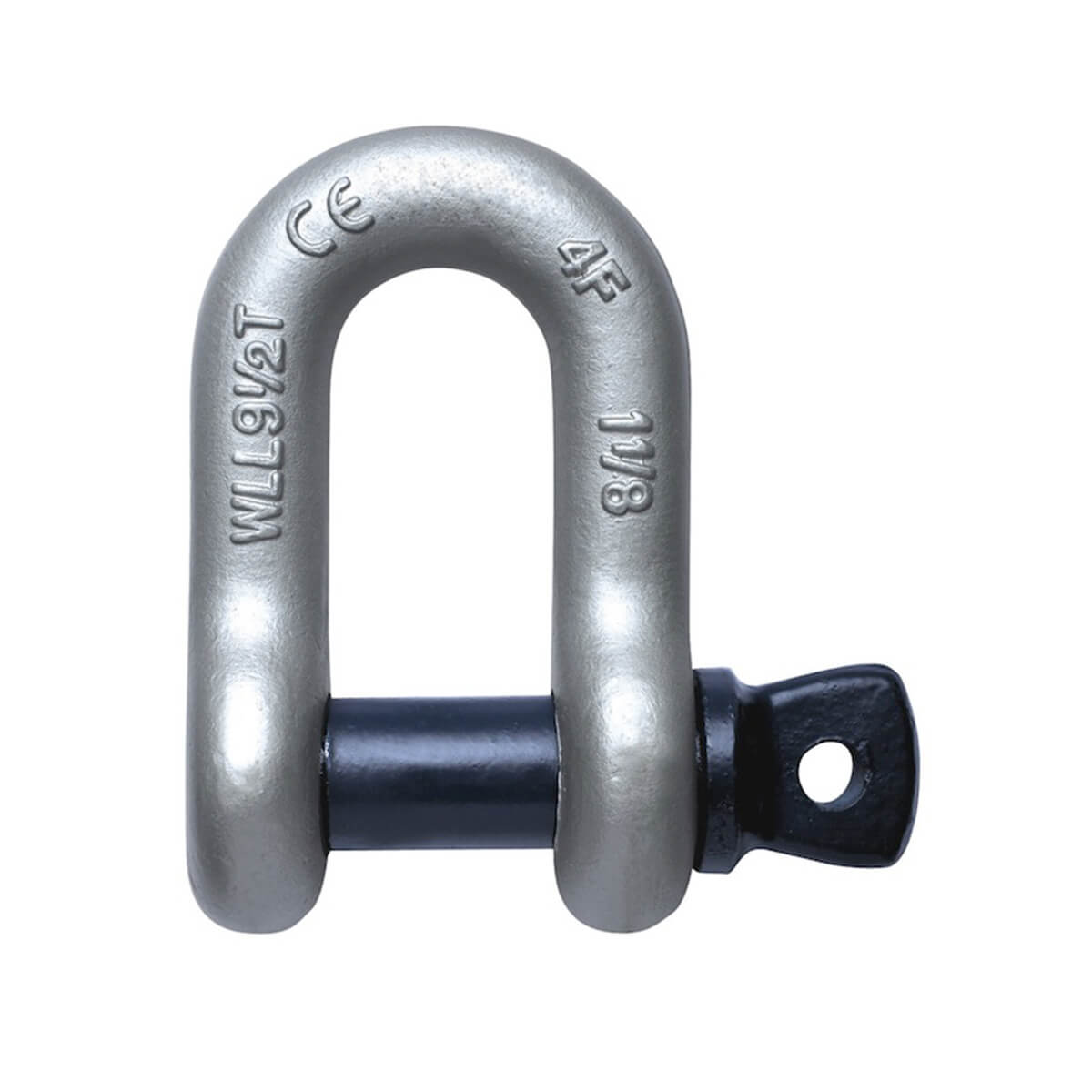

The ABLE SPD028 is a forged screw-pin dee (chain) shackle rated to a 9.5-tonne Working Load Limit, with the WLL and CE mark permanently stamped directly onto the body for instant, reliable identification on site. Quenched and tempered for maximum toughness, this shackle is built to withstand the rigours of crane rigging, construction, marine, and general industrial lifting.

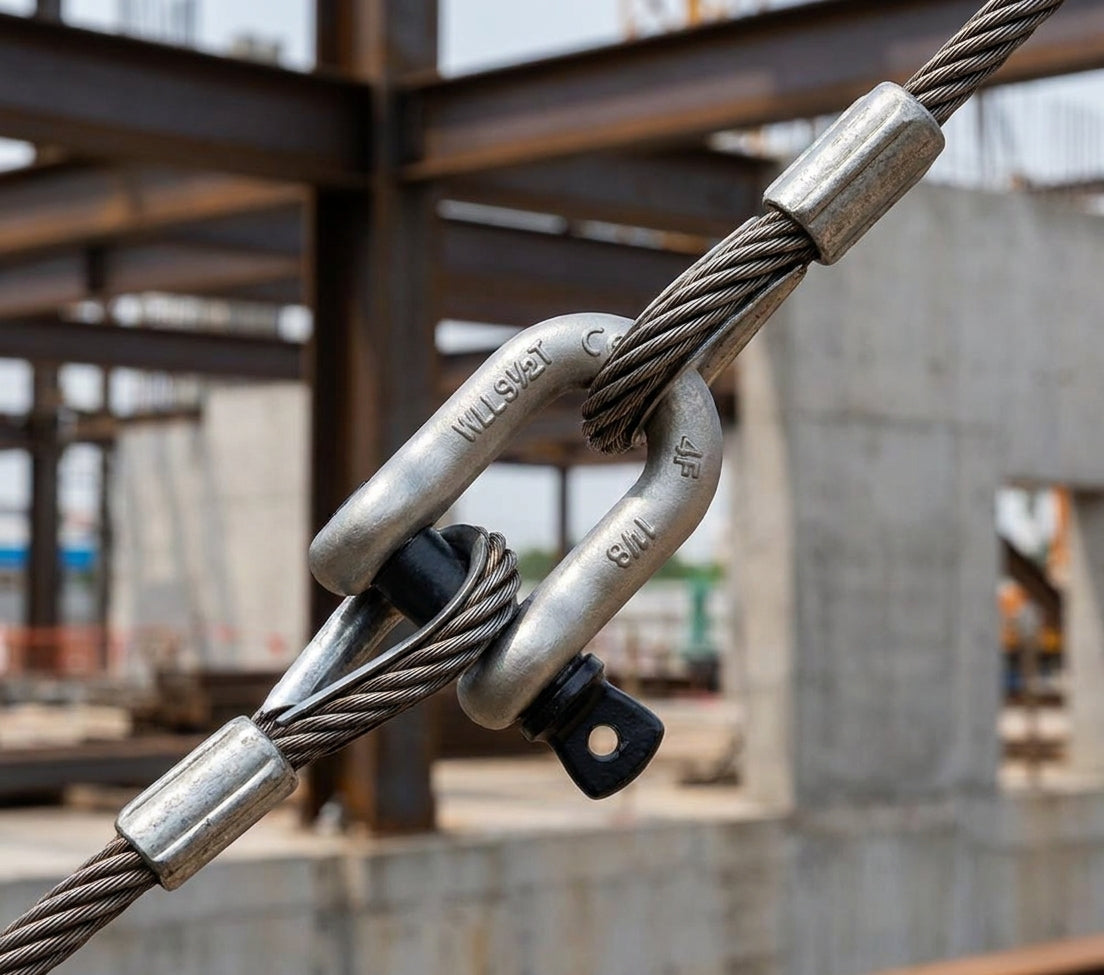

The narrow D-profile concentrates load in-line, making it the correct choice wherever straight tensile loading is required, connecting wire ropes, chain slings, lifting eyes, and spreader bars. The screw-pin closure provides a secure, tool-free connection that can be quickly opened and re-used.

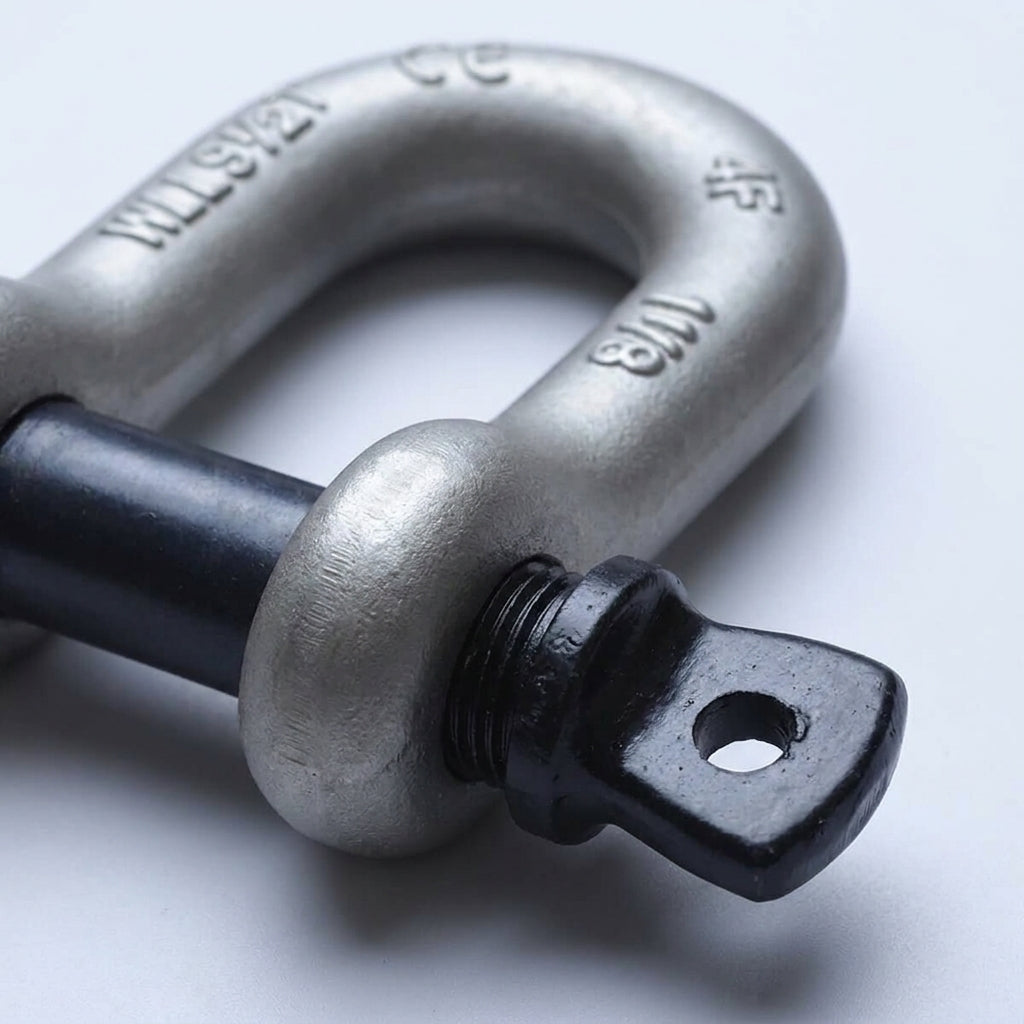

- Working Load Limit: 9.5 tonnes (9,500 kg), permanently stamped on body
- CE marked, clearly legible on the shackle body
- Nominal size: 1-1/8 in (marked "1 1/8" on shackle)
- Forged steel body, quenched and tempered for superior strength and toughness
- Screw-pin closure for fast, secure, tool-free connection and re-use
- Dee (chain) profile optimised for in-line tensile loads

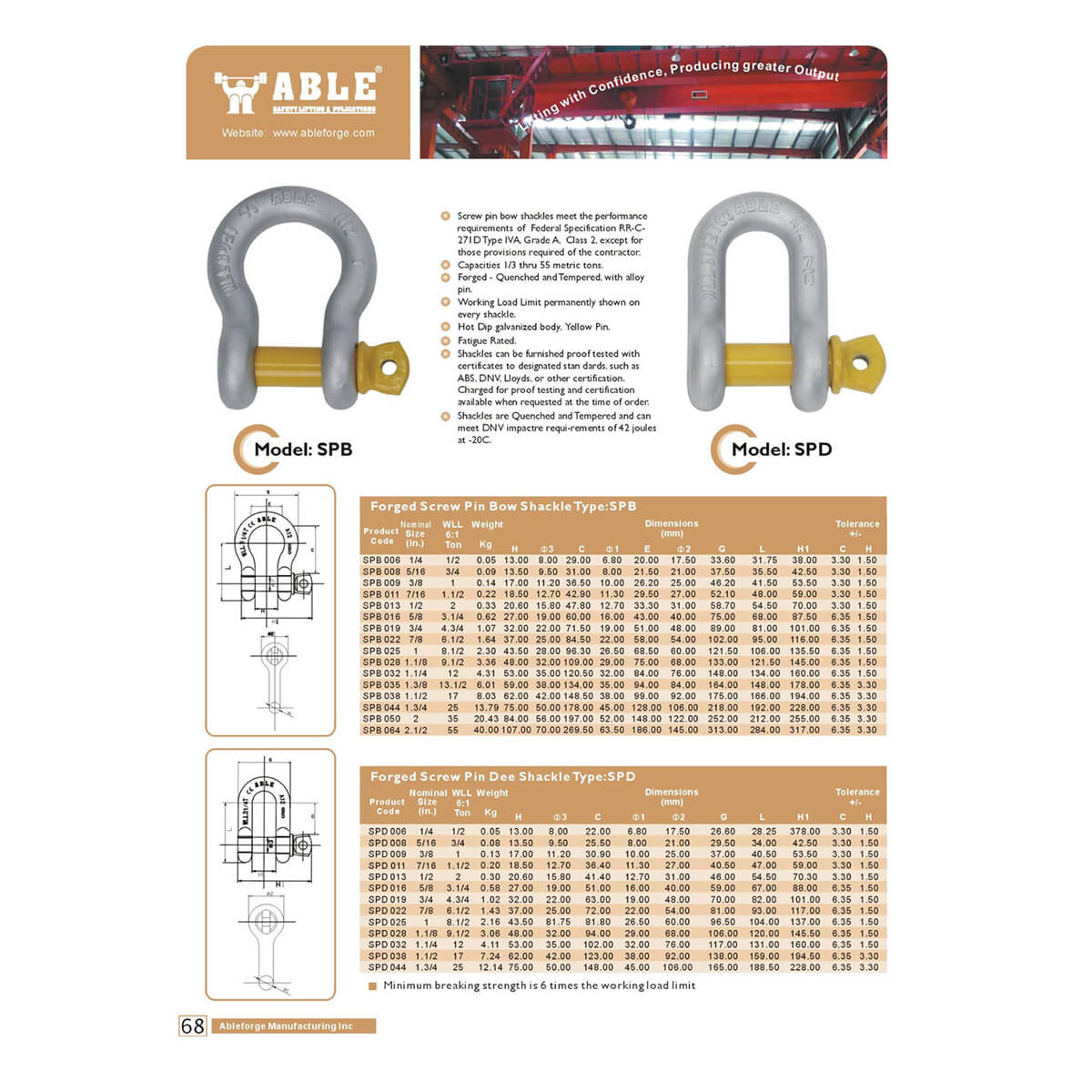

- Minimum breaking strength is 6 times the working load limit (per Ableforge spec sheet)
Supplied as a single shackle. Always apply the load in line with the shackle axis and never exceed the stated Working Load Limit.
Key features
- 019,500 kg WLL
- 02CE marked & forged
- 03Screw-pin dee type
- 04Quenched & tempered
- 056:1 minimum break ratio
Specification
