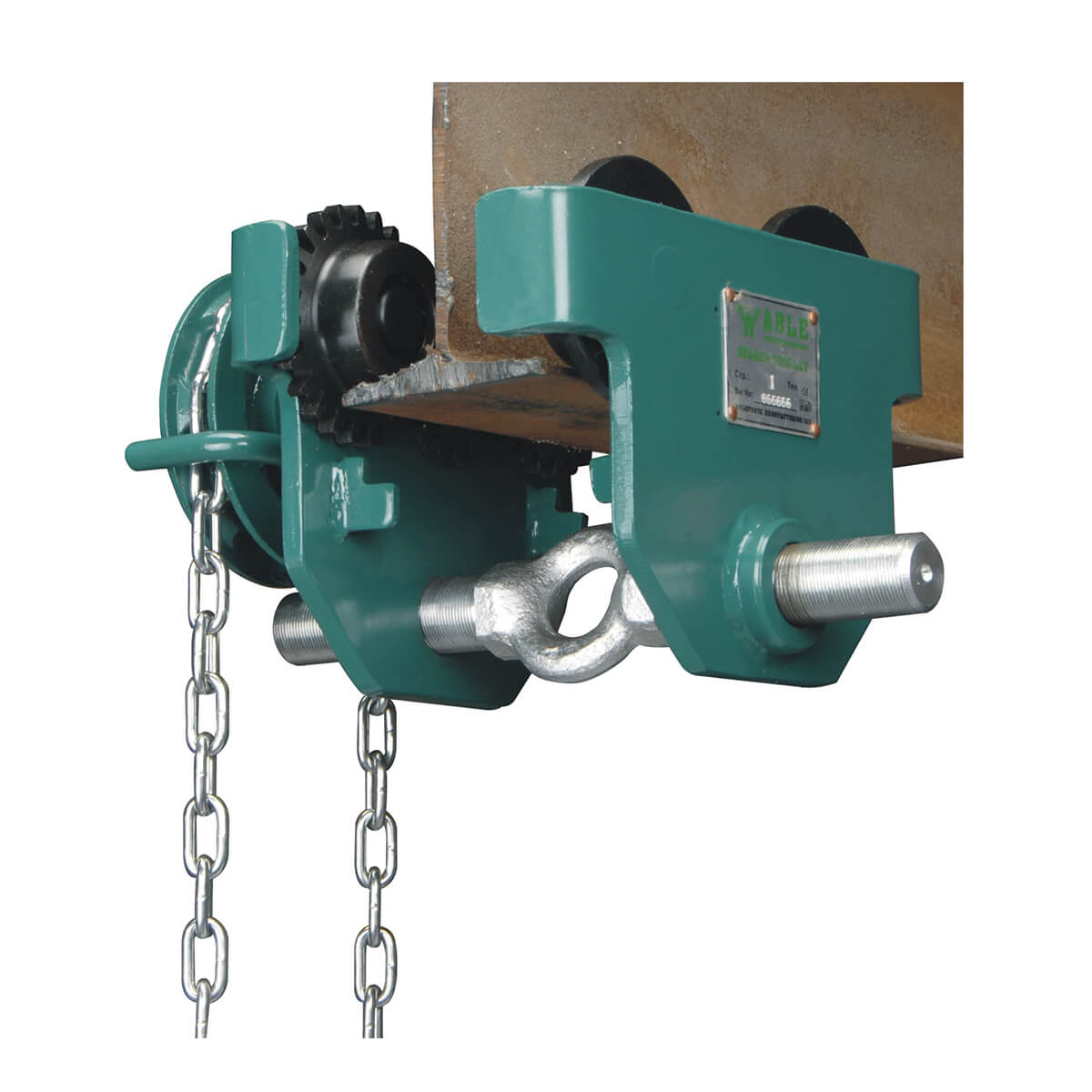

5000kg Geared Girder Trolley With Chain
Hand-operated geared girder trolley rated at 5,000 kg, designed to run along the bottom flange of a monorail beam. Ideal for factories, mines, docks and warehouses where no power supply is available.
- Working load limit
- 5,000 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
5000kg Geared Girder Trolley With Chain
This heavy-duty geared girder trolley allows operators to manually traverse suspended loads along a monorail beam simply by pulling the hand chain. With a 5,000 kg (5 tonne) working load limit and a proof test load of 7.5 tonnes, it provides a higher degree of control than a plain push trolley, especially valuable at larger capacities. The screw-adjustable hanger makes it compatible with a wide range of I-beam flange widths, and the close-headroom design maximises available lift height.
Conforming and tested to EN 13157-2010, each trolley is individually proof-load tested and supplied with its own serial number. The GT-II50 is widely used in factories, mines, wharves, docks, warehouses and engine rooms for the installation, maintenance and repair of equipment wherever mains power is unavailable.
- Working load limit: 5,000 kg (5 tonnes)
- Proof test load: 7,500 kg (7.5 tonnes)
- Hand-chain height (drop): 3.0 m
- Minimum beam flange width: 114 mm
- Maximum beam flange width: 220 mm
- Minimum curve radius: 1.4 m
- Conforms and tested to EN 13157-2010
- Individually proof-load tested with individual serial number
- Screw hanger for easy beam-width adjustment
- Close-headroom design for maximum lift height
Key features
- 015,000 kg rated capacity
- 02Hand-chain operated
- 03Wide beam compatibility
- 04Close-headroom design
- 05Heavy-duty industrial build
