500kg Geared Girder Trolley With Chain
A hand-operated geared girder trolley rated at 500 kg, designed to run along the bottom flange of a monorail I-beam and move suspended loads precisely, ideal where no power supply is available.
- Working load limit
- 500 kg
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

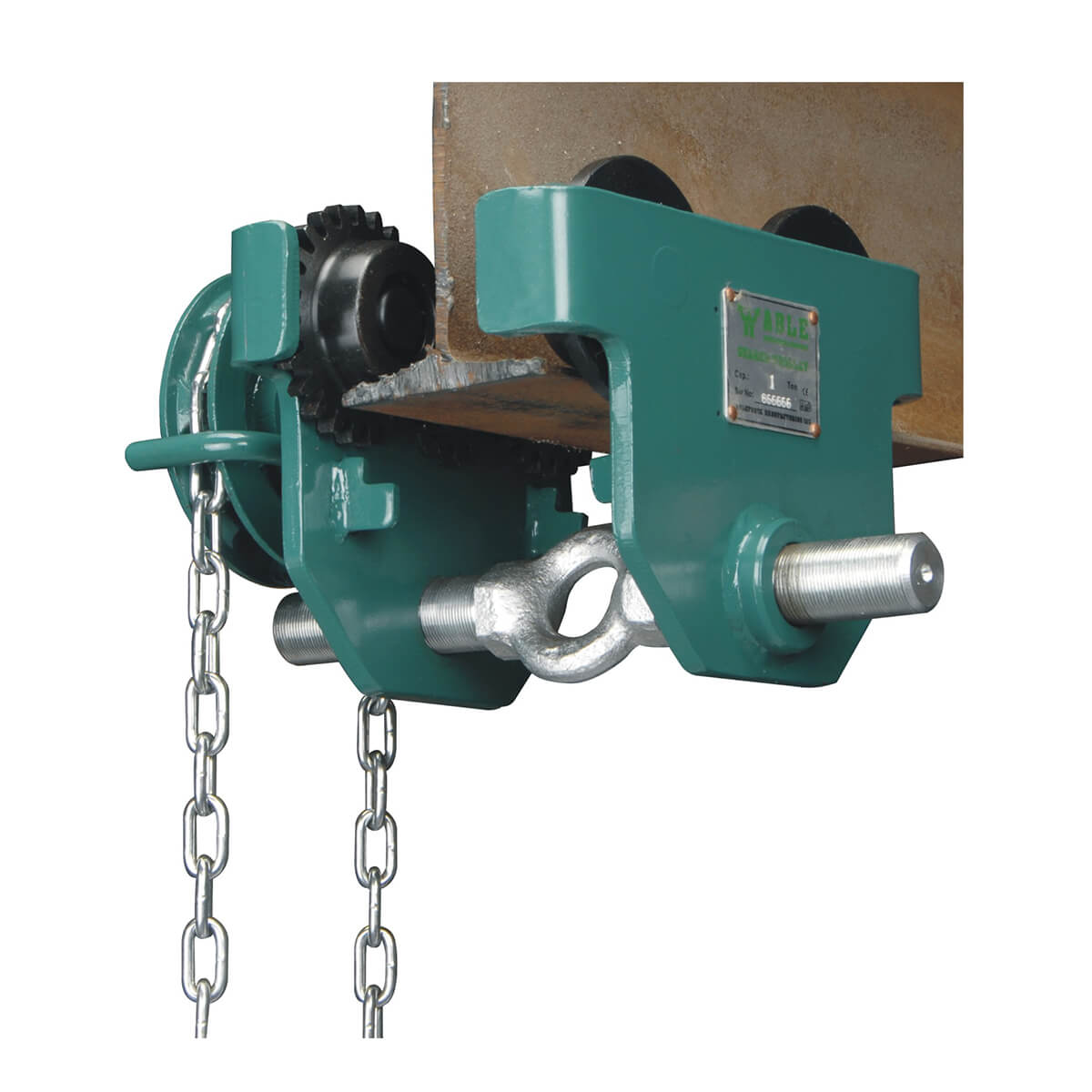

The 500 kg Geared Girder Trolley with Chain (Model GT-II05) is a robust, hand-operated beam trolley designed to travel along the bottom flange of a monorail I-beam. By pulling the hand chain, operators can smoothly move and precisely position suspended loads in either direction, with far greater control than a plain push trolley, particularly at higher capacities.
The screw-type hanger allows the trolley to be adjusted to suit a wide range of beam flange widths, making it highly versatile across different installations. Individually proof-load tested with its own serial number, the trolley conforms to and is tested in accordance with EN 13157:2010.
Widely used across factories, mines, wharves, docks, warehouses and engine rooms, this trolley is especially suited to maintenance, installation and repair tasks where no electrical power supply is available.
- Heavy-duty close-headroom construction for premium performance
- Adjustable screw hanger to suit a wide range of I-beam flange widths (64-220 mm)
- Hand-chain driven for smooth, controlled load travel with no power required
- Individually proof-load tested and serialised for full traceability
- Conforms to and tested in accordance with EN 13157:2010
Key features
- 01Hand-chain operated
- 02500 kg capacity
- 03Adjustable beam fit
- 04EN 13157:2010 compliant
- 05Heavy-duty close-headroom design

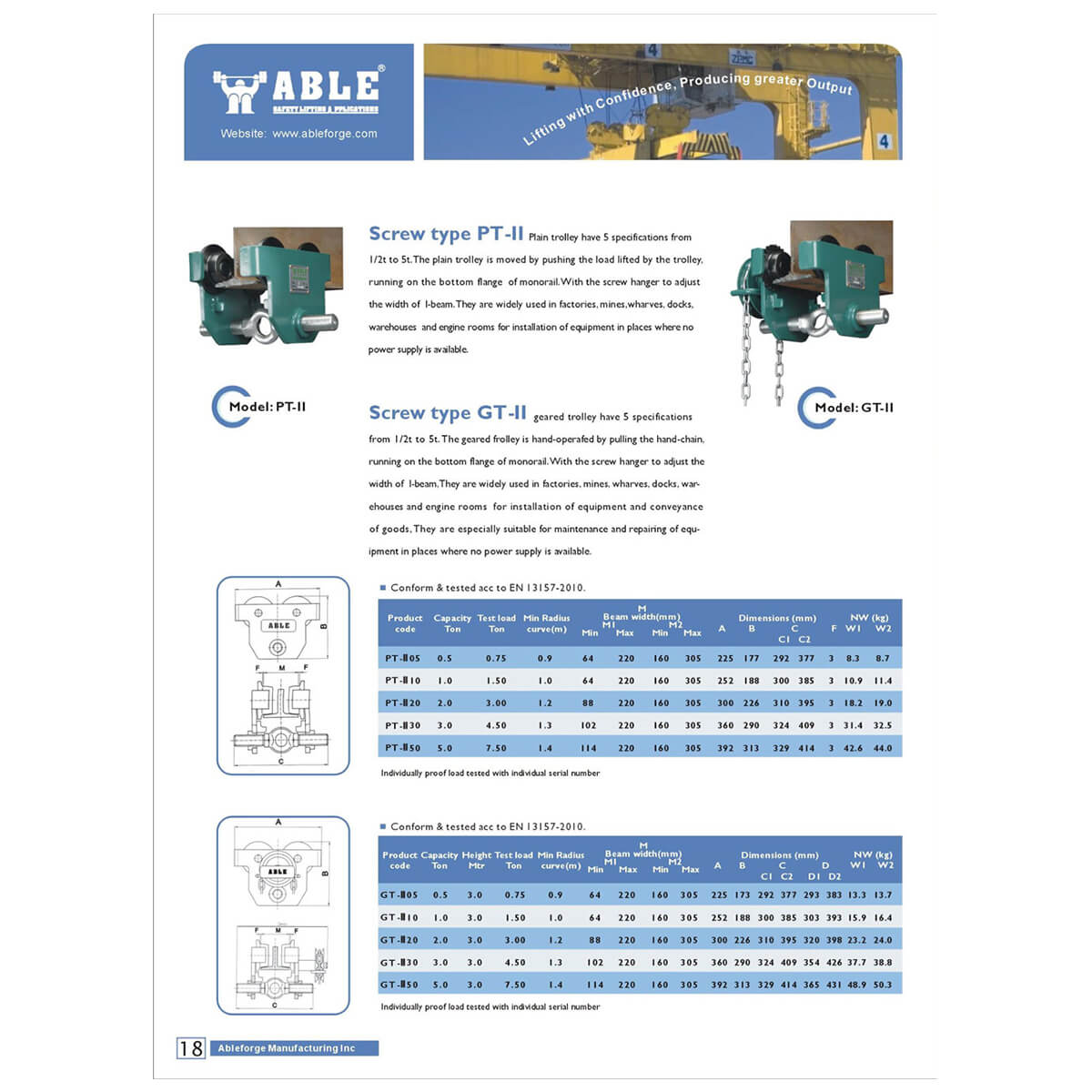

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
