3200kg Steel Wire Rope Puller x 30m | Able RWP-32-20

The Able Steel Wire Rope Puller (Model RWP) is a compact, lightweight hand-operated pulling and lifting tool designed for moving vehicles, machinery, logs and other heavy objects. By working the handle left and right, wire rope is fed through the body in either direction, lifting or lowering with no drum required, keeping the unit small and easy to transport.

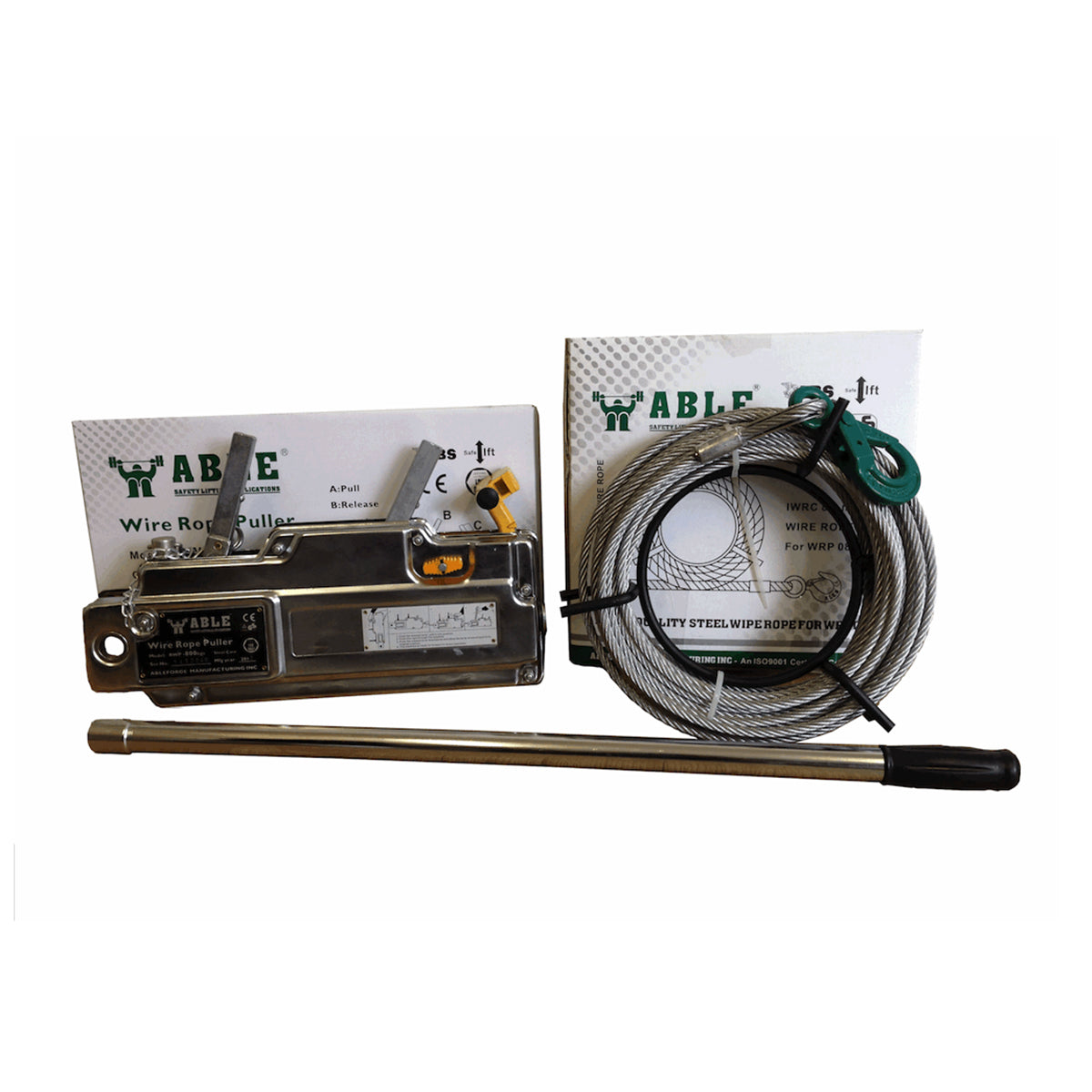

This listing is for the RWP-32-20 variant with a 3200 kg lifting capacity and a 4000 kg pulling capacity, supplied complete with a 16 mm diameter × 20 m IWRC steel wire rope and safety hook. Additional rope length options are available.

• Compact and lightweight body design, easy to carry and deploy anywhere on site
• Equipped with two integrated safety devices for secure, reliable operation
• Wire rope is drawn out straight regardless of length, no tangling or drum management needed
• Transmission speed up to 3 metres per minute, depending on operator effort and stroke speed
• Wire rope can be used at any working angle, giving maximum versatility
• Equipped with a safety hook for secure attachment
• Safety factor: 5 × WLL on the wire rope

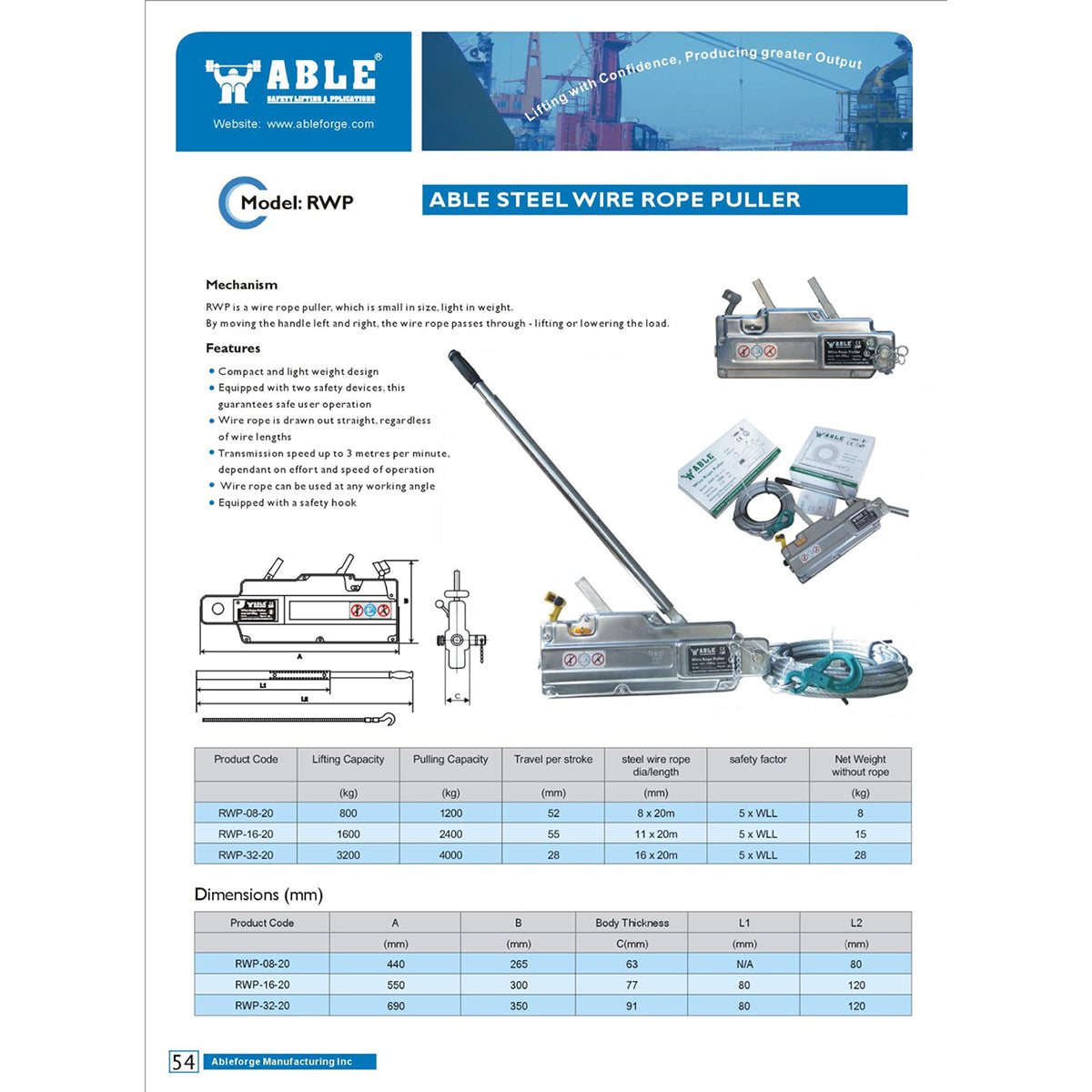

Specifications (RWP-32-20):

• Lifting Capacity: 3200 kg
• Pulling Capacity: 4000 kg
• Travel per stroke: 28 mm
• Wire rope diameter × length: 16 mm × 20 m
• Safety factor: 5 × WLL
• Net weight (without rope): 28 kg
• Body length (A): 690 mm | Width (B): 350 mm | Body thickness (C): 91 mm
• Handle dimensions: L1 80 mm, L2 120 mm

Typical applications: vehicle recovery, machinery positioning, log pulling, construction site rigging, and general industrial lifting and hauling.
