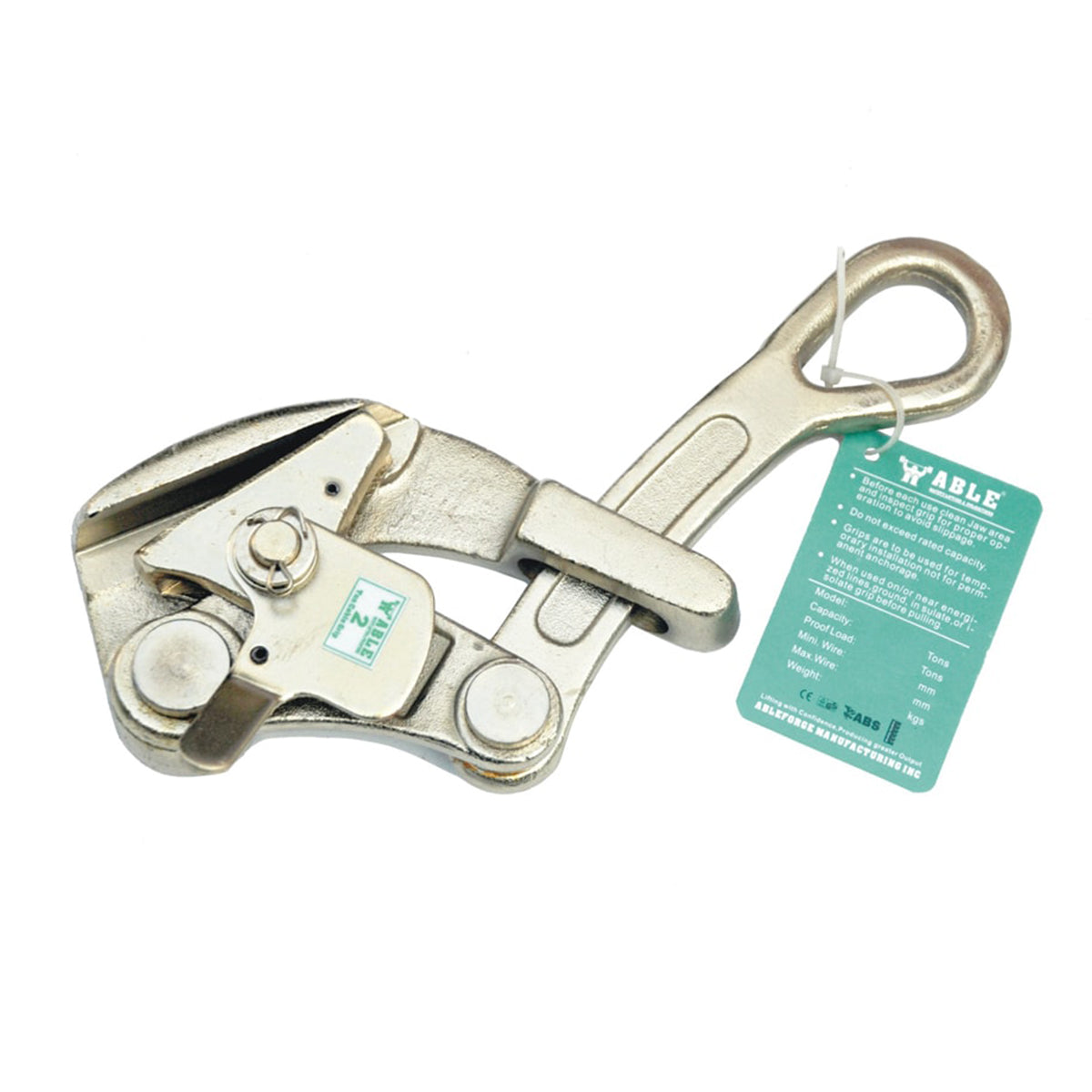

3000kg Unshelled Cable Grip – 3.0 Tonne SWL (Model B-3000)

The Ableforge UCG-B Series Unshelled Cable Grip (Model B-3000) is an ideal device for gripping, pulling and tensioning messenger wire ropes, cables and metal rods. Constructed from solid ductile and malleable iron, it delivers a safe working load of 3.0 tonnes and accommodates conductor diameters of 16-32 mm.

The parallel jaw mechanism provides a firm, non-slip grip without damaging the wire, while the integrated guide prevents the grip from dropping off the line and allows instant release when required. Compatible with ratchet pullers and pulley tackle systems, this grip is both field repairable and inexpensive to maintain, making it a reliable choice for overhead line work, tensioning operations and temporary anchorage tasks.

• Parallel jaws deliver a firm, non-slip grip without damaging the wire
• Integrated guide prevents accidental release from the wire and affords instant controlled release
• Suitable for use with ratchet pullers and pulley tackle systems
• Solid ductile and malleable iron construction for durability
• Easily field repairable and inexpensive to maintain

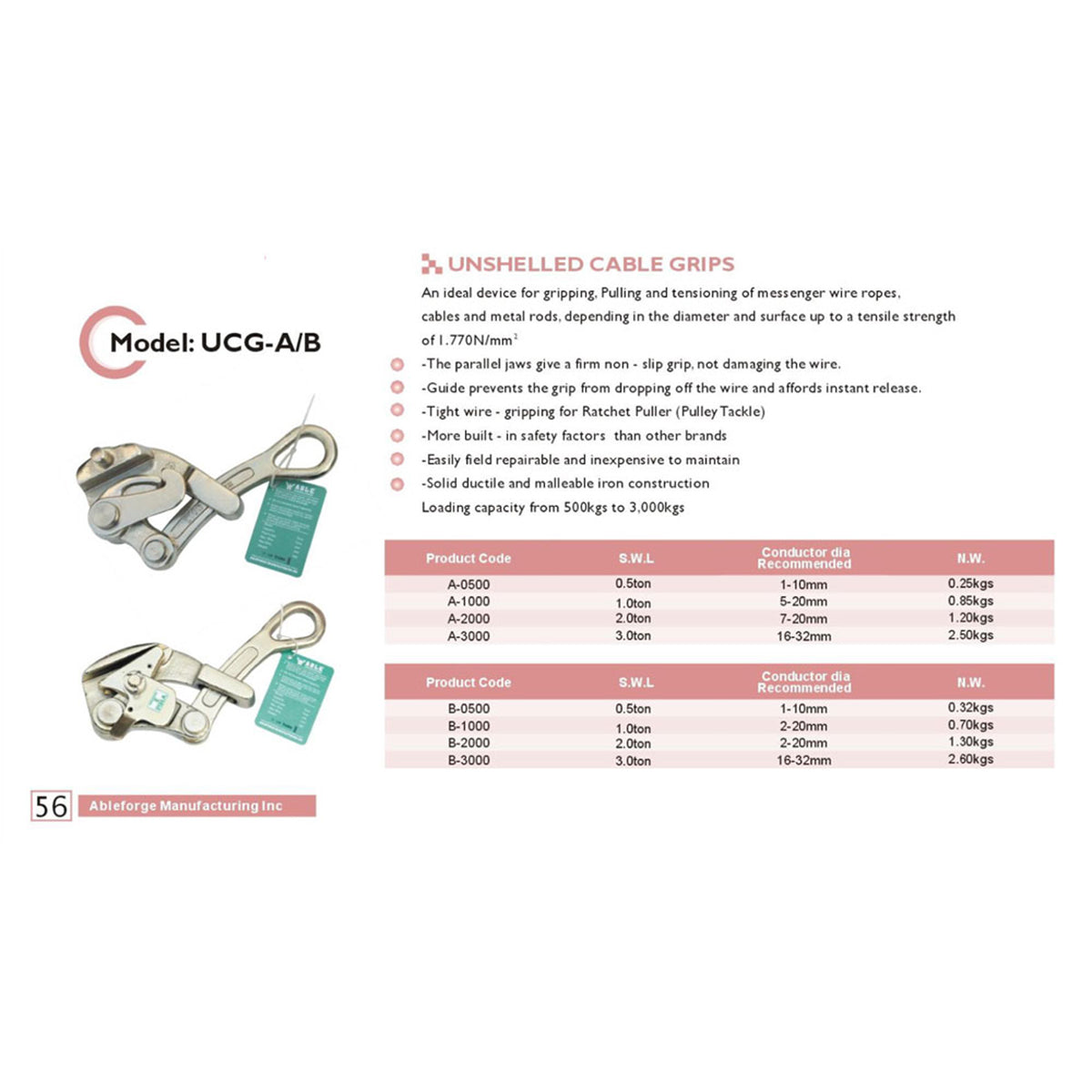

Specifications

• Model: B-3000
• Safe Working Load: 3.0 tonne
• Conductor Diameter (recommended): 16-32 mm
• Net Weight: 2.60 kg
• Tensile Strength: up to 1,770 N/mm²
• Manufacturer: Ableforge Manufacturing Inc

For temporary installation only, not for use as permanent anchorage. Always isolate the ground when used on or near energised lines. Clean jaw area and inspect before each use.
