2000kgs Unshelled Cable Grip
A 2-tonne SWL unshelled cable grip by Able for gripping, pulling and tensioning wire ropes, cables and metal rods up to 20 mm diameter. Solid ductile and malleable iron construction with parallel non-slip jaws.
- Working load limit
- 2,000 kg
- Material
- Solid ductile and malleable iron
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

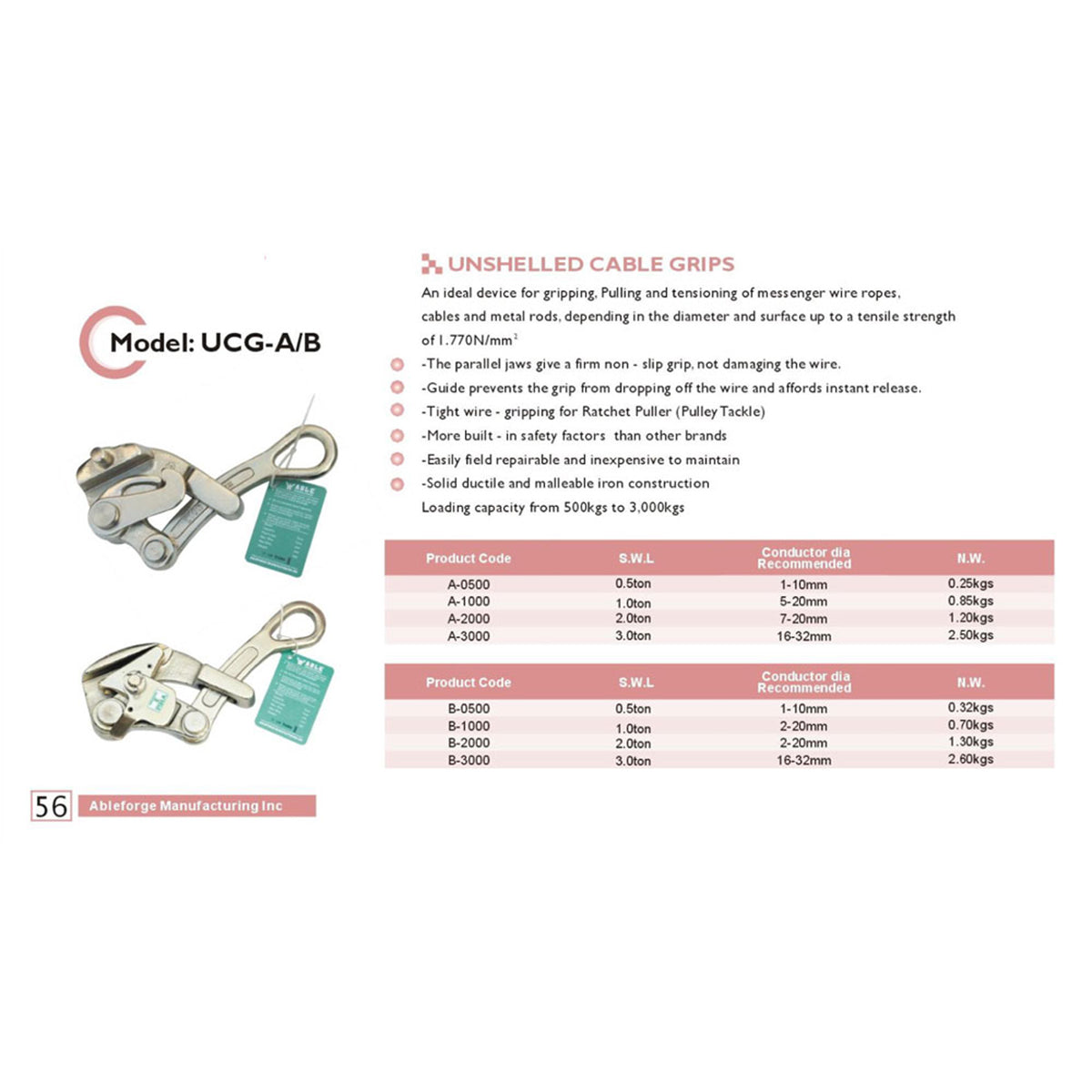

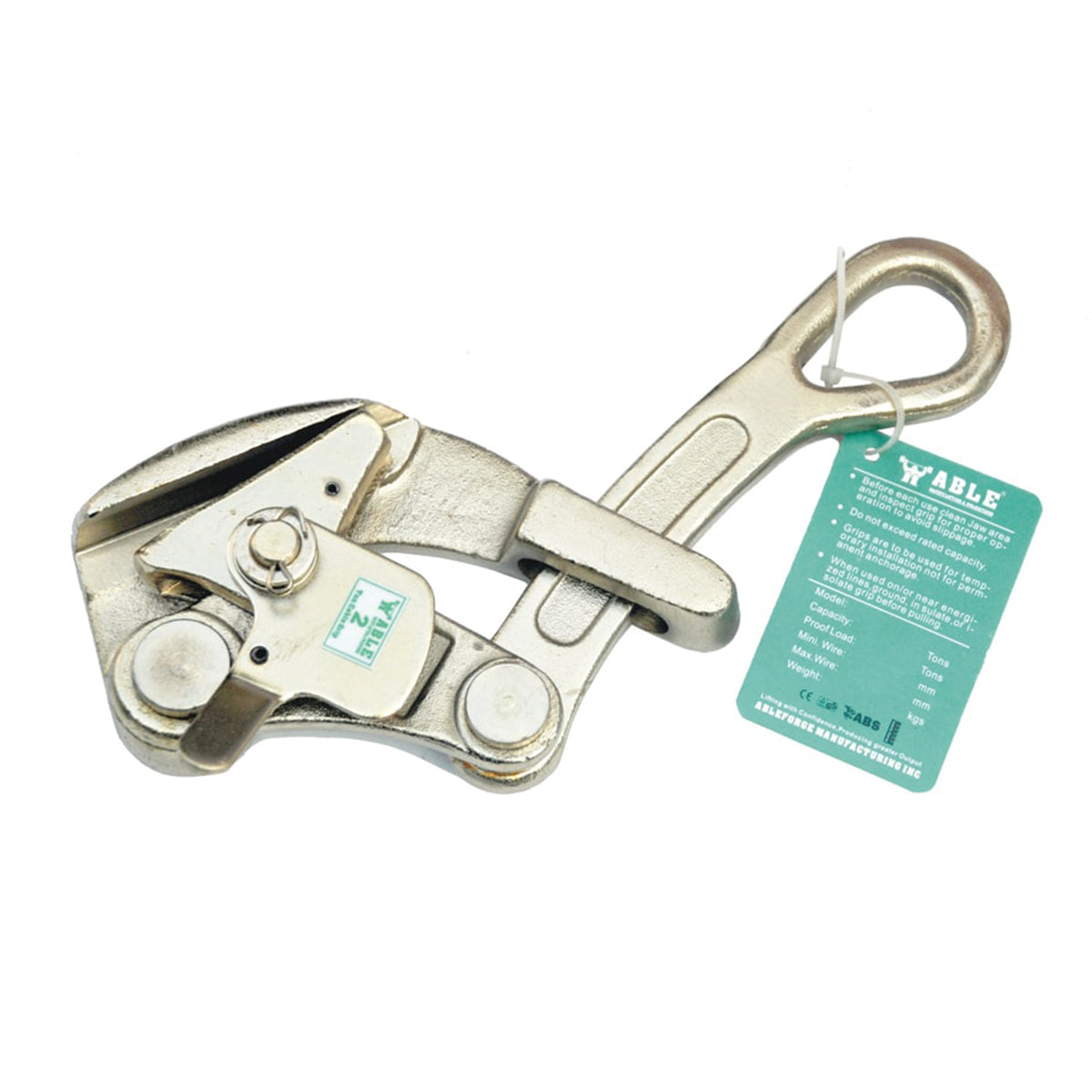

The Able UCG-B2000 Unshelled Cable Grip is an industrial-grade pulling and tensioning device designed for use with messenger wire ropes, cables and metal rods. Built from solid ductile and malleable iron, it delivers a safe working load of 2.0 tonnes and accommodates conductor diameters of 2-20 mm, making it suitable for a wide range of overhead line and rigging applications.
The parallel jaw design grips the wire firmly without causing surface damage, while the integrated guide prevents the grip from accidentally dropping off the wire and allows instant, safe release. Compatible with ratchet pullers (pulley tackle) for tight-wire applications, the grip is engineered with greater built-in safety factors than many comparable products and can be repaired in the field with minimal expense.
- Parallel jaws provide a firm, non-slip grip without damaging the wire
- Integrated guide prevents the grip dropping off the wire and affords instant release
- Ideal for use with a hand ratchet puller (pulley tackle) for tight-wire tensioning
- Solid ductile and malleable iron construction, easily field repairable and inexpensive to maintain
- Safe working load 2.0 tonnes; suits conductor diameters of 2-20 mm
Specifications
- Model: UCG-B2000 (Product Code B-2000)
- Safe Working Load (SWL): 2.0 ton
- Conductor Diameter Range: 2-20 mm
- Net Weight: 1.30 kgs
- Tensile strength rating: up to 1,770 N/mm²
Key features
- 01Safe working load 20 tonnes
- 02Non-slip parallel jaws
- 03Instant release guide
- 04Field repairable construction
- 05Compatible with ratchet pullers
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
