3000kg Vertical Lifting Clamp
ABLE VLC3 vertical lifting clamp rated at 3,000 kg WLL, designed for vertical lifting, turning and transfer of steel plates and shaped steels with a built-in safety latch mechanism.
- Working load limit
- 3,000 kg
- Material
- 20 CrMnTi alloy steel
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
ABLE SV Plus Vertical Lifting Clamp, 3,000 kg WLL (Model VLC3)
The ABLE VLC3 is a professional-grade vertical lifting clamp engineered for the vertical lifting, turning over and transfer of flat plates, sheet materials and shaped steels. Built from fully forged and heat-treated alloy steel (jaw and floor material: 20 CrMnTi), this clamp delivers outstanding strength, reliability and a long working life in demanding industrial environments.
A key safety feature is the integrated safety latch mechanism: the lock cannot disengage even if the lifting rope is slackened, protecting loads against ground-touching shocks. Each clamp carries an individual serial number and a permanent PI code for full traceability, and the product meets standard BS EN13155.
Key Features
- Working Load Limit (WLL): 3,000 kg (3 tonnes)
- Jaw opening: 0-36 mm
- Safety factor: 6 times WLL

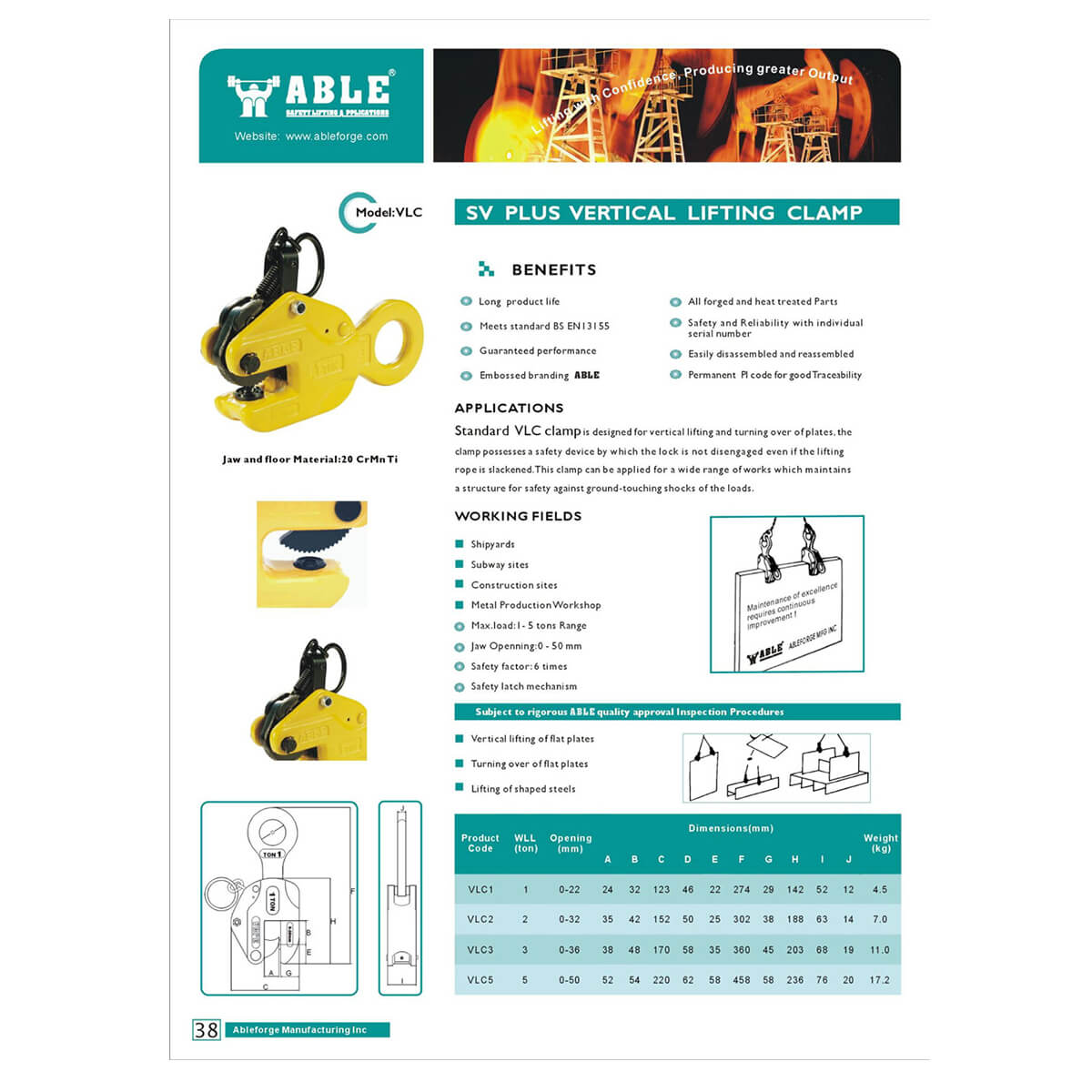

- Dimensions (mm): A 38, B 48, C 170, D 58, E 35, F 360, G 45, H 203, I 68, J 19
- Weight: 11.0 kg
- All forged and heat-treated parts for maximum durability
- Individual serial number and permanent PI code for traceability
- Meets BS EN13155
- Easily disassembled and reassembled for maintenance
Typical Applications
- Vertical lifting and turning over of flat plates
- Lifting of shaped steels
- Shipyards, construction sites, subway sites and metal production workshops
Key features
- 013,000 kg (3-tonne) WLL vertical lifting clamp
- 02Built-in safety latch mechanism keeps the lock engaged even when the lifting rope is slackened
- 03All-forged and heat-treated alloy steel construction (20 CrMnTi jaw and floor)
- 04Meets BS EN13155
- 05Jaw opening range 0-36 mm accommodates a wide variety of plate thicknesses
Specification
