5000kg Vertical Lifting Clamp
The Able VLC5 vertical lifting clamp offers a 5-tonne working load limit for safe vertical lifting, turning, and transfer of steel plates and structural steel. Built from forged, heat-treated steel with a safety latch mechanism.
- Working load limit
- 5,000 kg
- Material
- 20 CrMnTi
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Able SV Plus Vertical Lifting Clamp, VLC5 (5 Tonne)

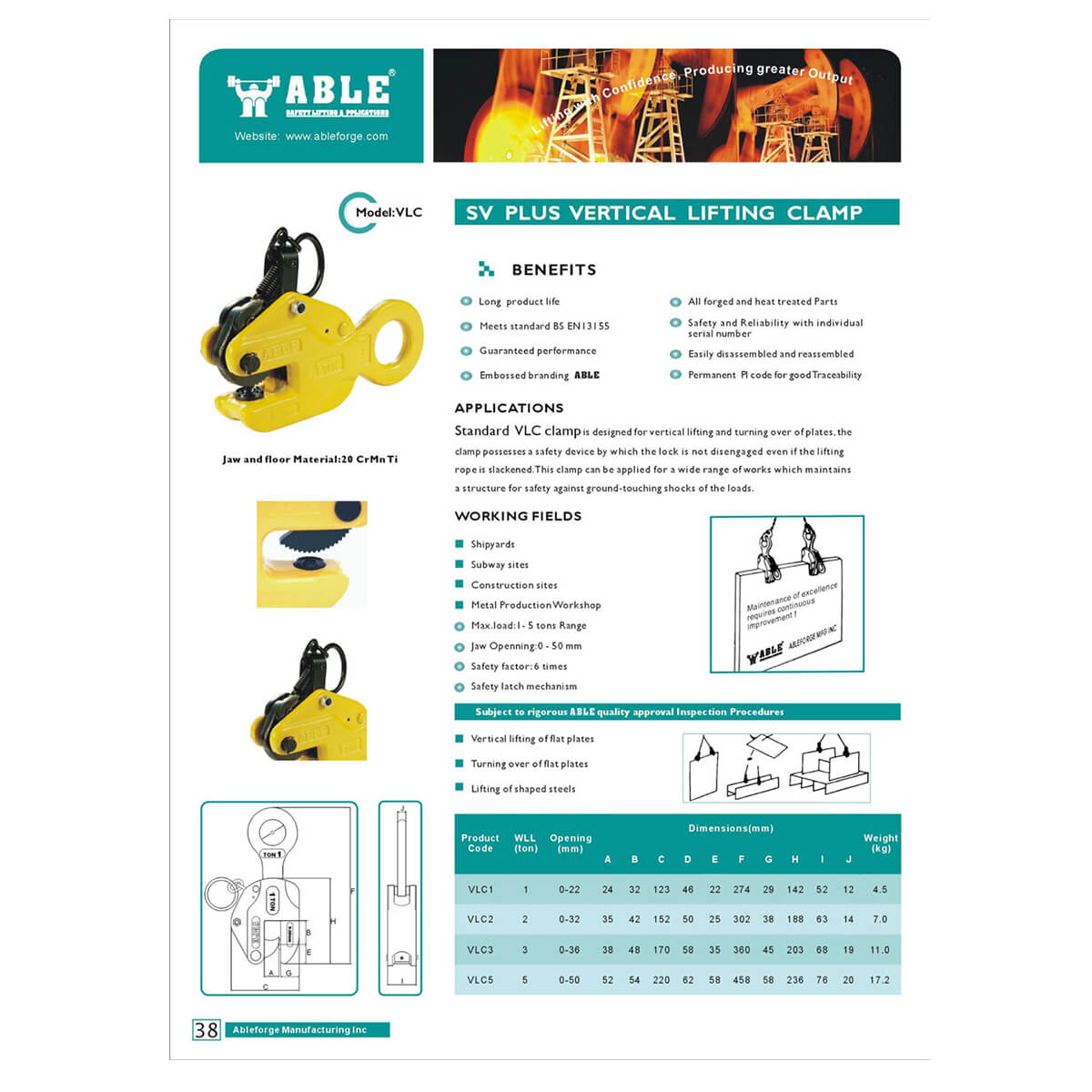

The Able VLC5 is a heavy-duty vertical lifting clamp designed for the vertical lifting, turning, and transfer of steel plates, sheet material, and shaped steels. Manufactured to meet BS EN 13155, every clamp is forged and heat-treated for outstanding strength and durability, and carries an individual serial number for full traceability.
A built-in safety latch mechanism ensures the lock cannot disengage even when the lifting rope is slackened, protecting both the load and the operator at all times. The jaw opening range of 0-50 mm accommodates a wide variety of plate thicknesses, and the clamp's robust construction makes it suitable for use across shipyards, construction sites, subway projects, and metal production workshops.
Key Features
- Working load limit: 5 tonnes (5,000 kg)
- Jaw opening range: 0-50 mm
- Weight: 17.2 kg
- All forged and heat-treated parts for long service life
- Safety latch mechanism, lock stays engaged even if lifting rope is slackened
- Meets standard BS EN 13155
- Individual serial number and permanent PI code for full traceability
- Jaw and floor material: 20 CrMnTi
- Easily disassembled and reassembled for maintenance
- Safety factor: 6 times WLL
Typical Applications
- Vertical lifting of flat plates
- Turning over of flat plates
- Lifting of shaped steels
- Shipyards, construction sites, subway sites, metal production workshops
Key features
- 015-tonne working load limit
- 02Safety latch mechanism
- 03BS EN 13155 compliant
- 04All forged & heat-treated construction
- 05Wide jaw opening 0-50 mm
Specification
