3000kg Geared Girder Trolley With Chain
A heavy-duty, hand-operated geared girder trolley rated at 3,000 kg, designed to travel along the bottom flange of a monorail beam. Ideal for factories, warehouses, docks and mines where no power supply is available.
- Working load limit
- 3,000 kg
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
3000kg Geared Girder Trolley With Chain

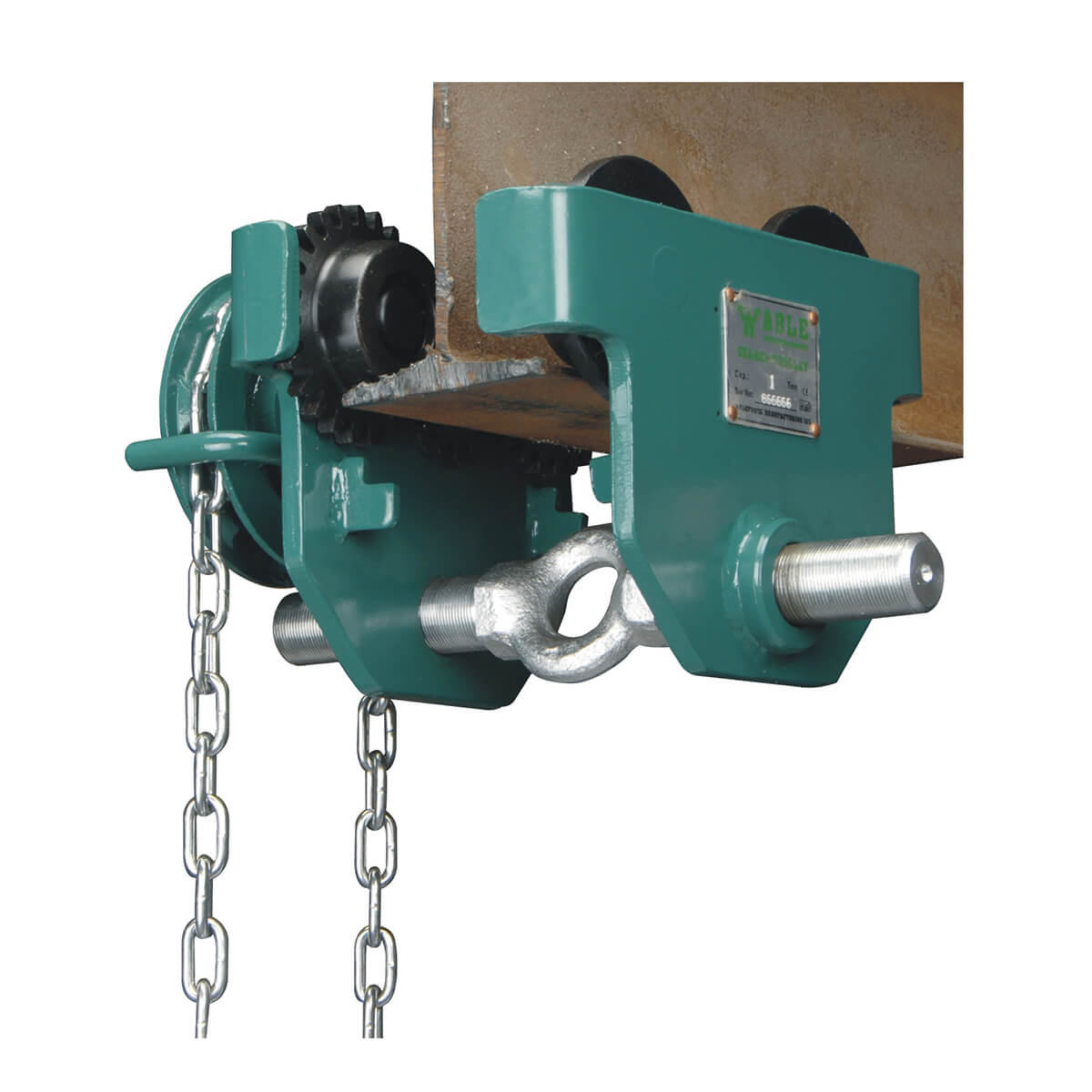

This Able GT-II20 geared girder trolley provides precise, hand-operated load positioning along the bottom flange of a monorail I-beam. Simply pull the hand chain to travel in either direction, no power supply required, making it the preferred choice for factories, mines, wharves, docks, warehouses and engine rooms where electrical infrastructure is absent or impractical.
The screw-hanger design allows the beam width to be adjusted across a wide range, ensuring compatibility with many standard I-beam sizes without the need for additional components. Each trolley is individually proof-load tested and supplied with its own unique serial number, conforming to and tested in accordance with EN 13157:2010.
- Rated capacity: 3,000 kg (3.0 tonne)
- Proof test load: 4,500 kg (4.5 tonne)
- Hand-chain operated, no power supply needed
- Adjustable screw hanger suits beam flange widths from 102 mm to 220 mm
- Minimum curve radius: 1.3 m
- Hand-chain height (drop): 3.0 m
- Conforms and tested to EN 13157:2010
- Individually proof-load tested with individual serial number
- Widely used in factories, mines, docks, warehouses and engine rooms

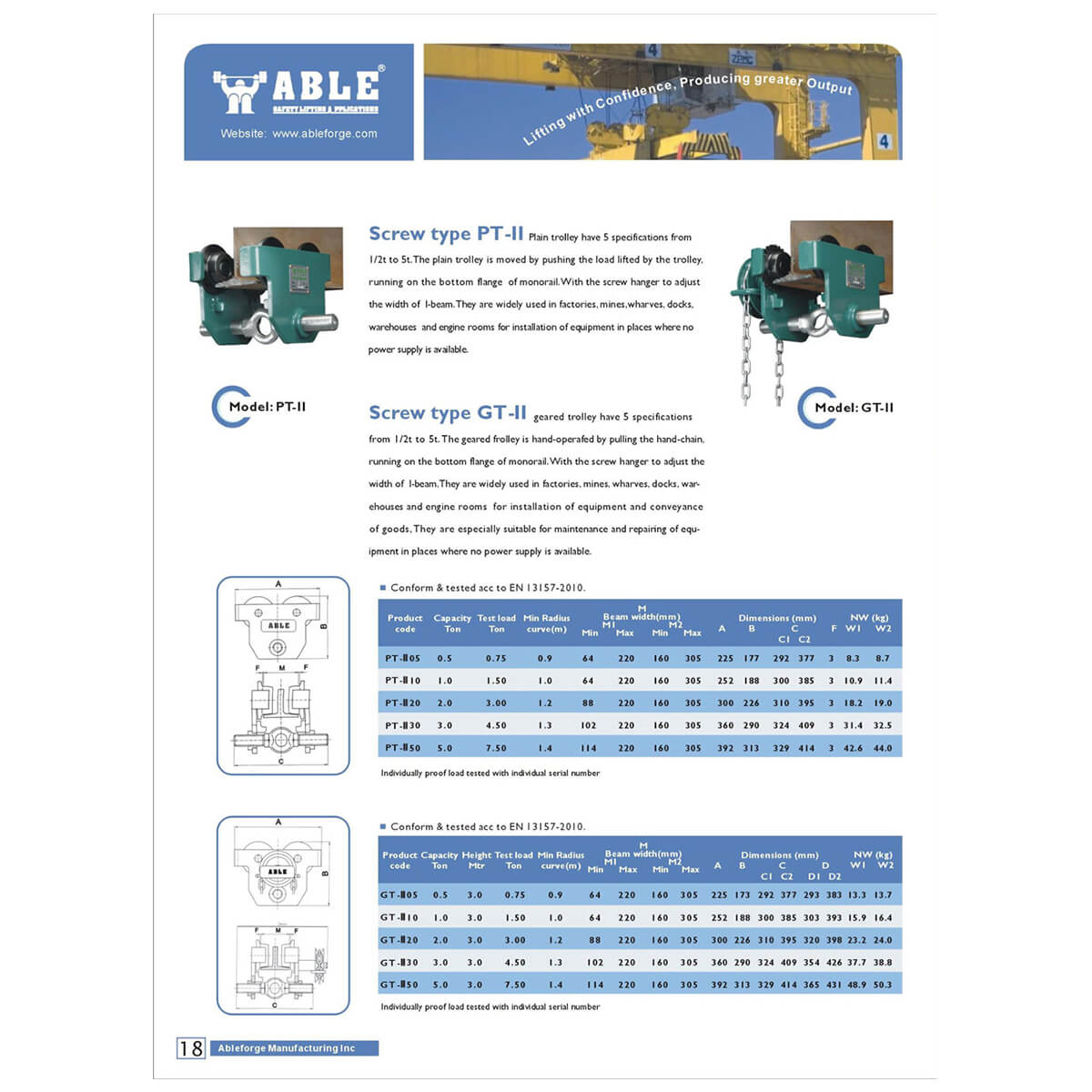

Available in capacities from 500 kg to 5,000 kg, please see our full range of geared girder trolleys.
Key features
- 01Rated 3,000 kg capacity
- 02Hand-chain operated
- 03Adjustable screw hanger
- 04Heavy-duty construction
- 05Close headroom design
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
