2000kg Vertical Lifting Clamp
The Able SV Plus VLC2 vertical lifting clamp offers a 2-tonne WLL for safe vertical lifting, turning, and transfer of steel plates and sheet material, with a built-in safety latch that holds even when the lifting rope is slackened.
- Working load limit
- 2,000 kg
- Material
- 20 CrMnTi alloy steel
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

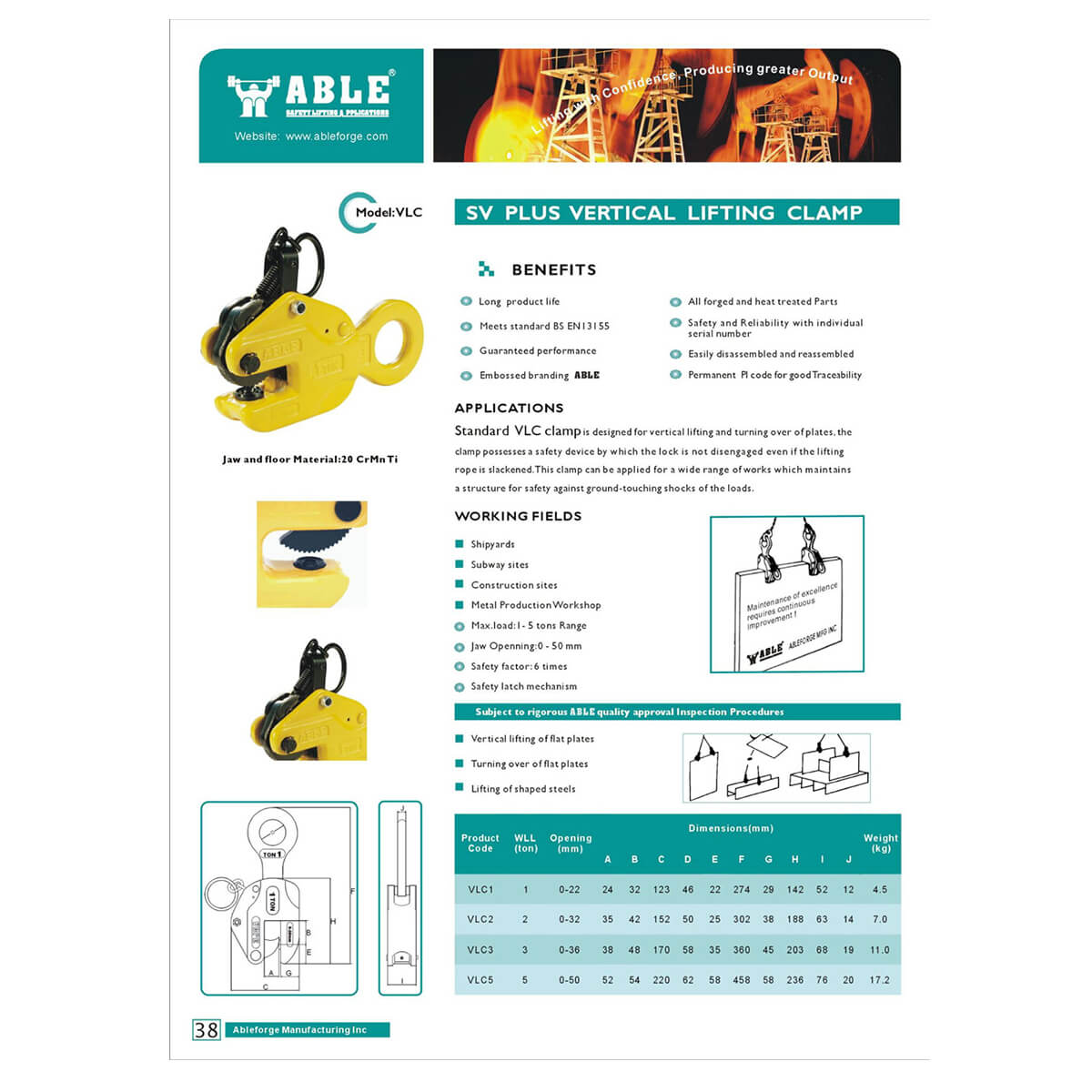

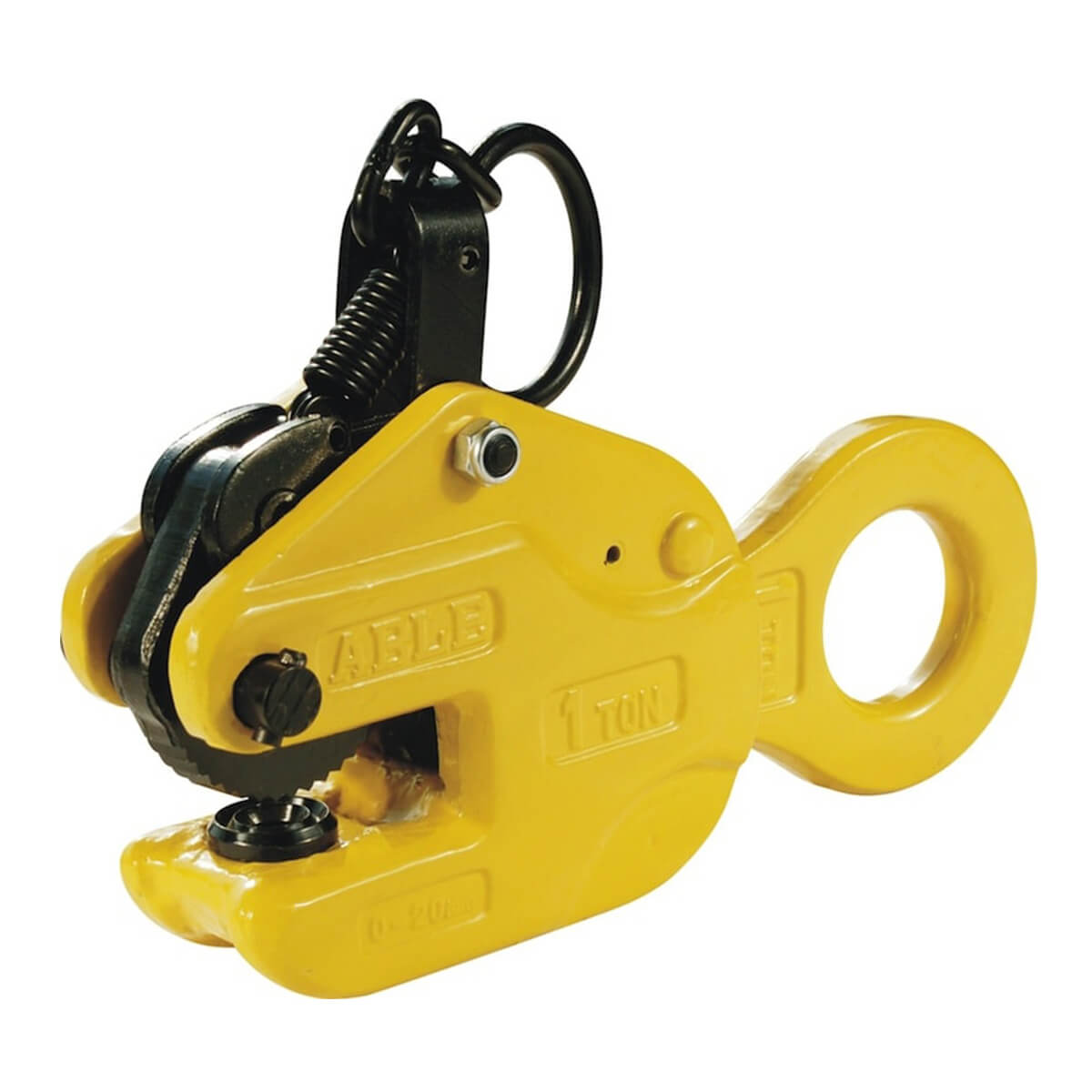

Able SV Plus Vertical Lifting Clamp, 2000 kg WLL (Model VLC2)
The Able SV Plus VLC2 is a heavy-duty vertical lifting clamp designed for the safe vertical lifting, turning-over, and transfer of flat steel plates, shaped steels, and other sheet materials. Used across shipyards, construction sites, subway projects, and metal production workshops, it is equally at home wherever steel plate must be moved without surface damage.
Every clamp is fully forged and heat-treated for maximum strength and long service life. An integrated safety latch mechanism ensures the clamp remains locked to the load even when the lifting rope is slackened, providing an essential layer of protection against accidental release. Each unit carries an individual serial number and a permanent PI code for full traceability, and the product meets BS EN 13155, the European standard for non-fixed load lifting attachments.
Key Features
- Working load limit: 2 tonnes (2000 kg)
- Jaw opening range: 0-32 mm
- Safety factor: 6 times WLL
- All forged and heat-treated parts, jaw and floor material: 20CrMnTi
- Safety latch prevents release when lifting rope is slack
- Individual serial number and permanent PI code for traceability
- Meets BS EN 13155
- Suitable for vertical lifting of flat plates, turning-over of flat plates, and lifting of shaped steels
Typical Applications
- Shipyards and marine fabrication
- Construction and civil engineering sites
- Subway and tunnelling projects
- Metal production workshops
Key features
- 012-tonne WLL vertical clamp
- 02Built-in safety latch
- 03Fully forged & heat-treated
- 04BS EN 13155 compliant
- 05Jaw opening 0-32 mm
Specification
