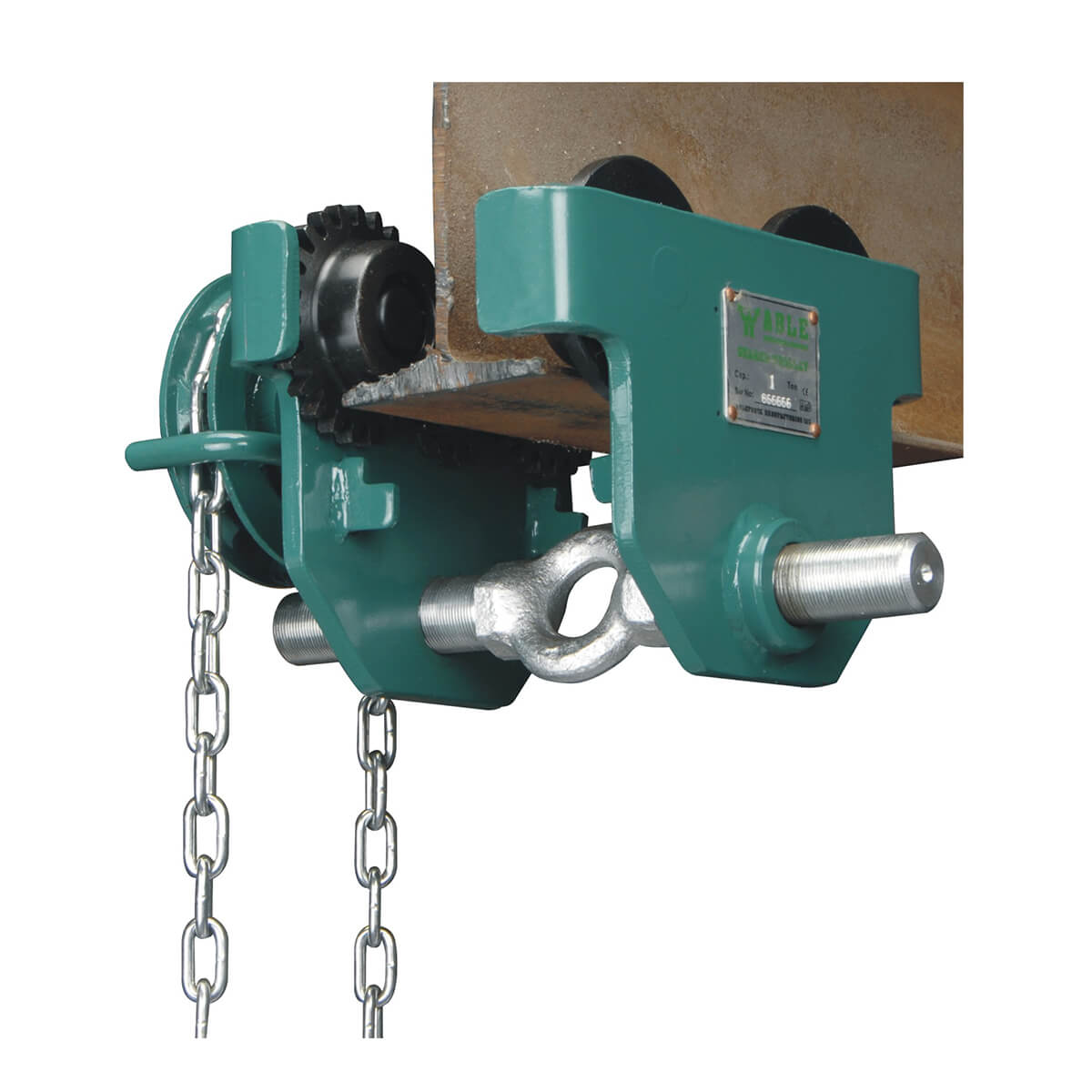

2000kg Geared Girder Trolley With Chain
A hand-operated geared girder trolley rated at 2,000 kg, designed to run along the bottom flange of a monorail and position suspended loads with precision, no power supply required.
- Working load limit
- 2,000 kg
- Material
- Steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
2000kg Geared Girder Trolley With Chain
This heavy-duty geared girder trolley provides smooth, controlled movement of suspended loads along a monorail bottom flange. Operated entirely by hand via a pull-chain, it is the ideal solution for factories, mines, wharves, docks, warehouses and engine rooms where no electrical power supply is available. The screw-type beam width adjuster allows the trolley to be set up across a wide range of I-beam flange widths, making it highly versatile across different installations.
Unlike plain push trolleys, the geared mechanism gives the operator far greater control when manoeuvring heavier loads, reducing effort and improving positioning accuracy. Each unit is individually proof-load tested and supplied with its own serial number for full traceability.
- Rated capacity: 2,000 kg (2.0 tonne)
- Test load: 3,000 kg (3.0 tonne)
- Hand-chain height: 3.0 m
- Minimum curve radius: 1.2 m
- Beam width adjustment: 88 mm, 220 mm
- Conforms and tested to EN 13157-2010
- Individually proof-load tested with individual serial number
- Screw hanger for easy beam width adjustment
- Suitable for use where no power supply is available
Key features
- 01Rated 2,000 kg capacity
- 02Hand-chain operated
- 03Wide beam compatibility
- 04EN 13157-2010 certified
- 05Heavy-duty industrial build
