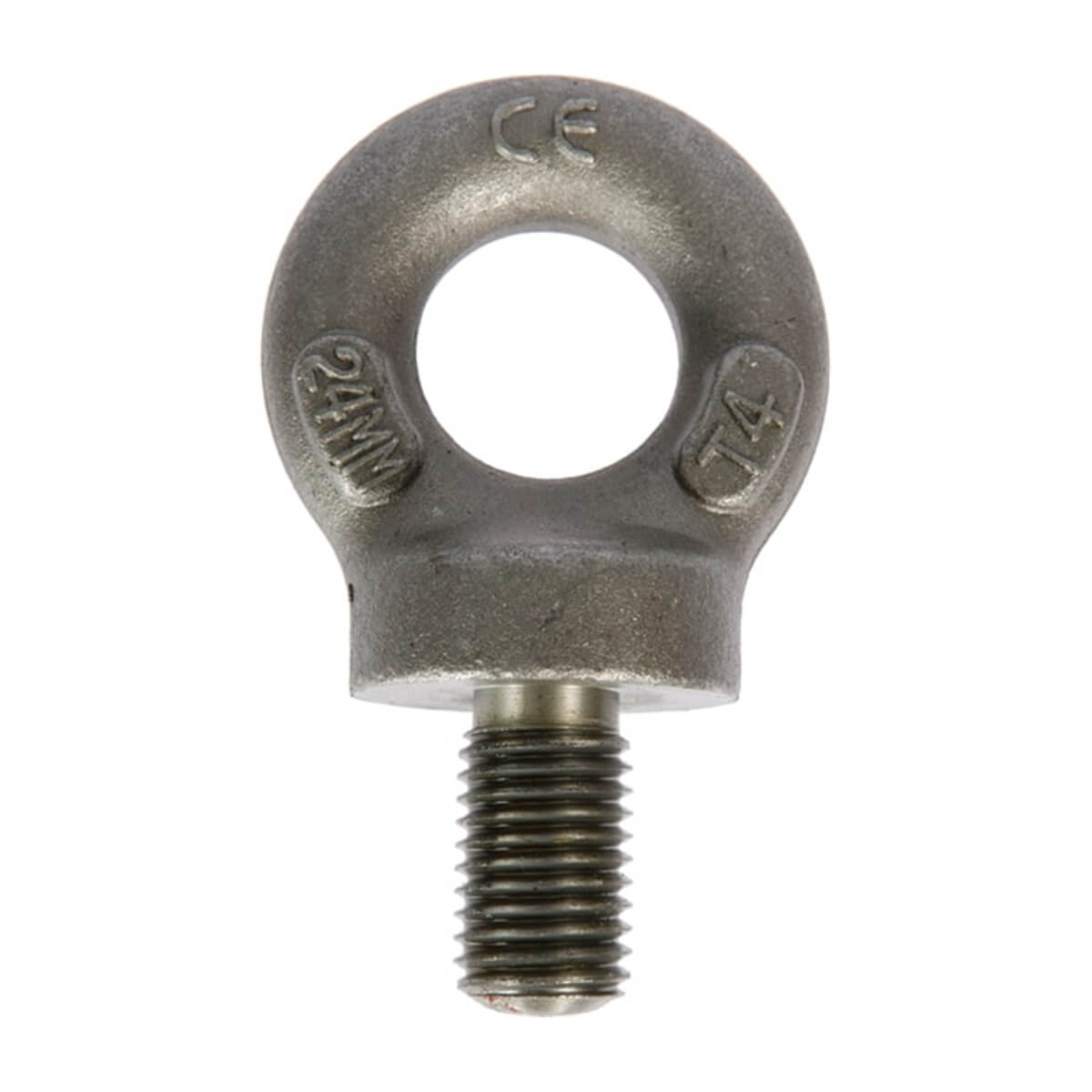

2.50t Drop Forged Collared Eyebolt M24 (L0308)

This drop forged collared eyebolt features a metric M24 thread and is manufactured from heat-treated carbon steel C45, giving it excellent strength and durability for demanding lifting and rigging tasks. The collar provides a firm seating face against the load surface, ensuring secure and stable attachment.

The eyebolt carries a Working Load Limit (WLL) of 2.50 tonnes when the load is applied vertically (axially). When loads are applied at an angle, the rated capacity must be reduced accordingly: loads applied at 45° must be derated to 30% of the vertical WLL, and loads applied at 90° must be derated to 25% of the vertical WLL. The pull must always act in the same plane as the eye.

CE marked and supplied in a self-colour finish as standard. Electro-galvanised finish is available on request.

• Material: Carbon Steel C45, heat treated
• Thread size: M24 metric thread
• WLL: 2.50 tonnes (vertical)
• Finish: Self colour (electro-galvanised available on request)
• CE marked for compliance and traceability
• Thread length (C): 17 mm
• Eye internal diameter (E): 35 mm
• Eye bar diameter (F): 21 mm
• Overall height (G): 46 mm
• Shank length (H): 40 mm
• Shank diameter (A): 24 mm
• Body width (B): 52 mm
• Weight: 0.85 kg
