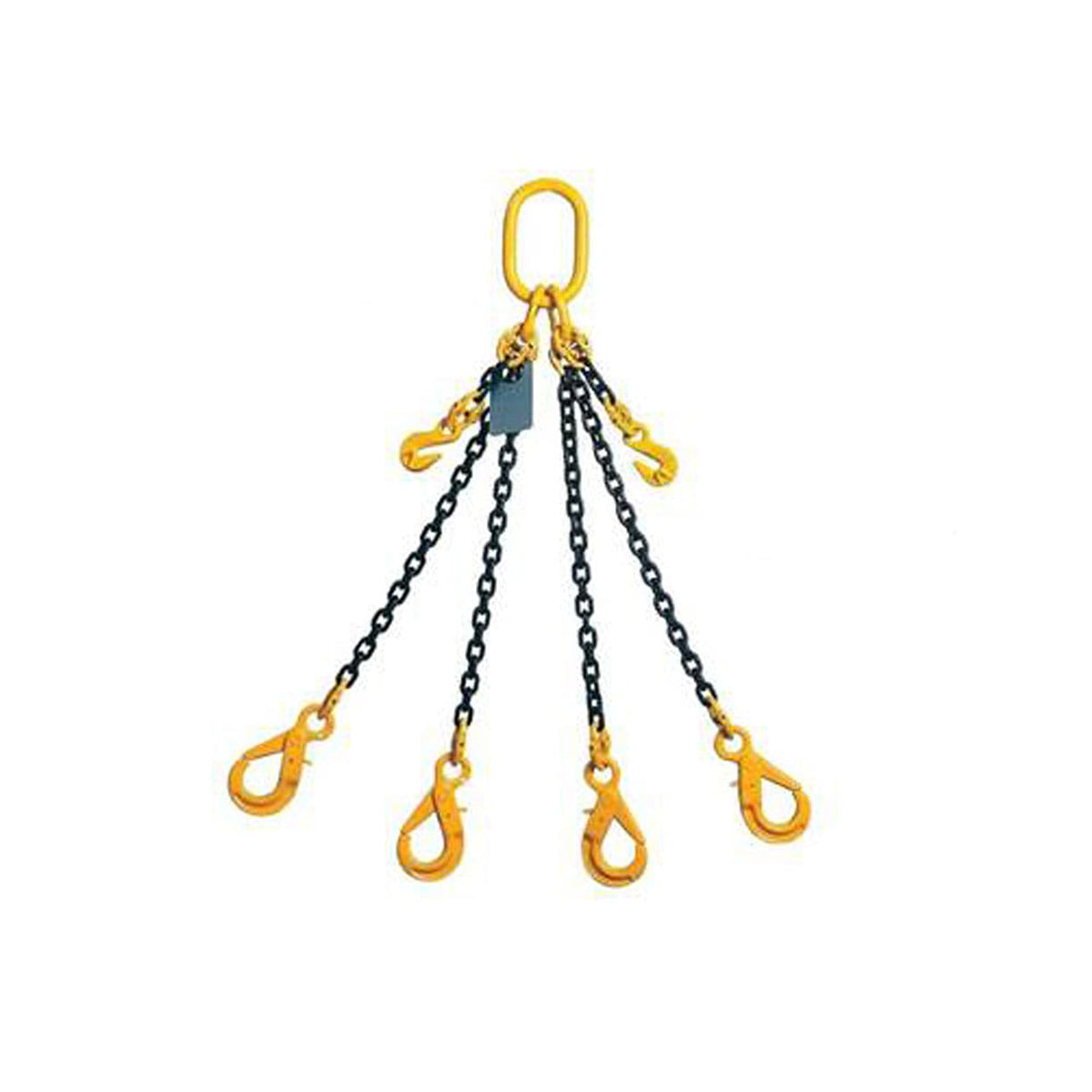

16mm Four Leg Lifting Chain Sling
A heavy-duty Grade 80 four-leg chain sling with 16mm chain, a WLL of 17,000 kg, and a choice of hook types, ideal for lifting large or awkward loads in construction and manufacturing.
- Working load limit
- 17,000 kg
- Min. breaking load
- 32,000 kg
- Chain size
- 16 mm
- Legs
- 4
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The 16mm four-leg lifting chain sling provides four independent attachment points from a single master link, making it the go-to solution for lifting large, heavy, or unevenly distributed loads safely and efficiently. Constructed from Grade 80 alloy steel chain, quenched, tempered, and proof tested, this sling delivers a Working Load Limit of 17,000 kg with outstanding durability and reliability.
Each sling is manufactured using the German WAFIOS production method, which combines computerised automated knitting, spot welding, and calibration to ensure every link is identical in size and strength. The chain is permanently embossed for full identification and traceability, and every sling is supplied with a certificate and identification tag to help you meet workplace lifting regulations.
Available in leg lengths from 1 m to 10 m, with a choice of three hook types, Clevis Sling Hook, Clevis Self Locking Hook, or Clevis "C" Hook, and with the option to add a shortening clutch for added versatility on site.
- Grade 80 alloy steel chain, quenched, tempered, and proof tested for maximum strength
- Working Load Limit: 17,000 kg across four legs
- Proof load tested to 2.5× WLL; ultimate load capacity is 4× WLL
- Permanently embossed chain links for full identification and traceability
- Supplied with certificate and identification tag to support regulatory compliance
- Choice of Clevis Sling Hook, Clevis Self Locking Hook, or Clevis "C" Hook
- Available in leg lengths from 1 m to 10 m with optional shortening clutch
- Manufactured using the German WAFIOS method for consistent, identical links
Key features
- 01Heavy-duty grade 80 chain
- 0217,000 kg working load limit
- 03Full traceability
- 04Flexible configuration
- 05Consistent quality
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
