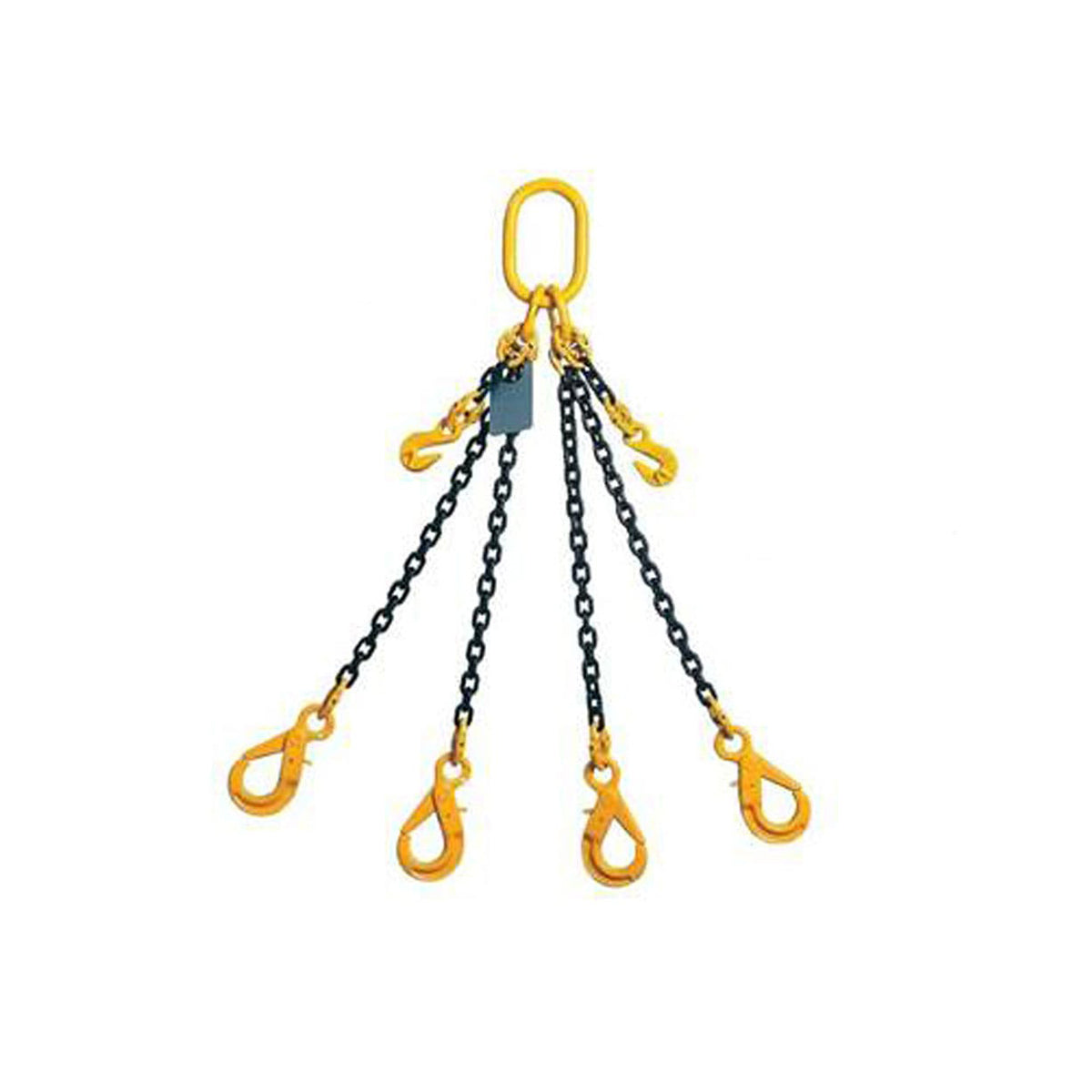

10mm Four Leg Lifting Chain Sling
A Grade 80 four-leg chain sling with 10mm chain, a single top master link and four self-locking or sling hooks, rated to 6,700 kg WLL. Supplied with certificate and ID tag for full traceability.
- Working load limit
- 6,700 kg
- Min. breaking load
- 12,600 kg
- Chain size
- 10 mm
- Legs
- 4
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The 10mm Four Leg Lifting Chain Sling is designed for heavy-duty lifting applications where load stability and multiple attachment points are essential. Four individual chain legs spread from a single master link, allowing the load to be secured at four separate points simultaneously, ideal for lifting awkward, heavy or large fabricated items in manufacturing, construction, engineering and logistics environments.
All chain components are manufactured from Grade 80 high-tensile alloy steel, produced using the German WAFIOS method with computerised automated knitting, spot welding and calibration to ensure every link is identical and consistent. Each chain is permanently embossed for identification and traceability, and the sling is supplied with a certificate and identification tag to support compliance with lifting regulations.
Choose from three hook types, Clevis Sling Hook, Clevis Self Locking Hook, or Clevis "C" Hook, and select leg lengths from 1 m to 10 m. An optional shortening clutch is also available to adjust working length on site.
- Working Load Limit (WLL): 6,700 kg
- Chain diameter: 10 mm
- Grade 80 alloy steel, quenched, tempered and proof tested
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- Supplied with traceability certificate and identification tag
- Hook options: Clevis Sling Hook, Clevis Self Locking Hook, Clevis "C" Hook
- Leg length options: 1 m, 10 m
- Optional shortening clutch available
Key features
- 01Grade 80 alloy steel construction
- 026,700 kg working load limit
- 03Choice of hook types
- 04Full traceability
- 05Flexible length options
Specification
Values that change with your selection, such as length, are in the options above.
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
